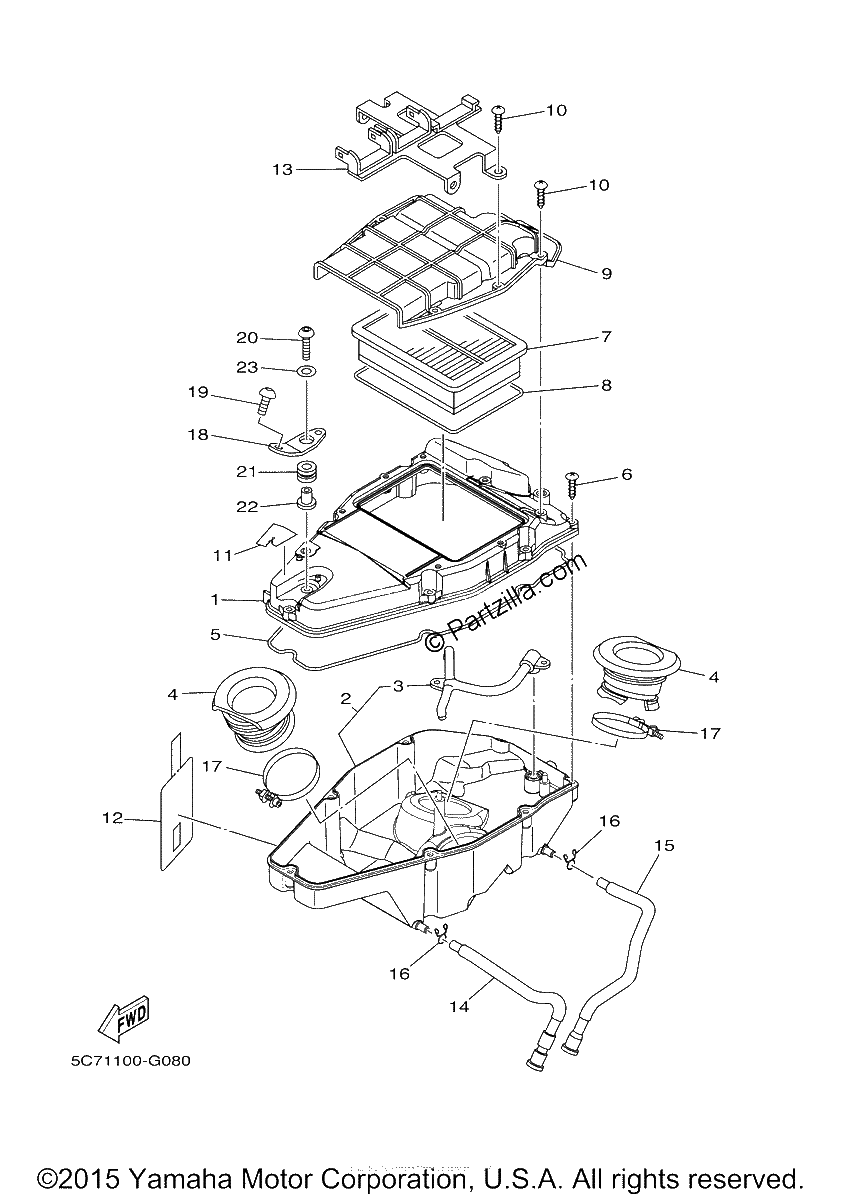

INTAKE 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SILENCER, INTAKE 1
$37.20¢18 600
#2
CAP, CLEANER CASE SUB ASSY 1
$67.60¢33 800
#3
PIPE
$33.92¢16 963
#4
JOINT, AIR CLEANER 1
$31.26¢15 631
#5
SEAL (replaces 5XT-14452-00-00)
$20.31¢10 156
#6
SCREW, TAPPING
$7.84¢3 919
#7
ELEMENT, AIR CLEANER 2
$25.07¢12 538
#8
SEAL
$8.03¢4 013
#9
CAP, CLEANER CASE 1
$18.90¢9 450
#10
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
#11
DAMPER 1
$5.21¢2 606
#12
COVER 1
$9.71¢4 856
#13
BRACKET 1
$57.94¢28 969
#14
PIPE, DRAIN
$24.59¢12 294
#15
PIPE, DRAIN 2
$25.33¢12 663
#16
Clip
$2.97¢1 487
#17
HOSE CLAMP ASSY
$17.59¢8 794
#18
STAY 2
$16.88¢8 438
#19
BOLT, BUTTON HEAD
$8.31¢4 156
#20
BOLT, BUTTON HEAD
$3.44¢1 719
#21
GROMMET
$5.81¢2 906
#22
COLLAR
$9.22¢4 613
#23
WASHER, PLATE
$8.65¢4 325
