HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

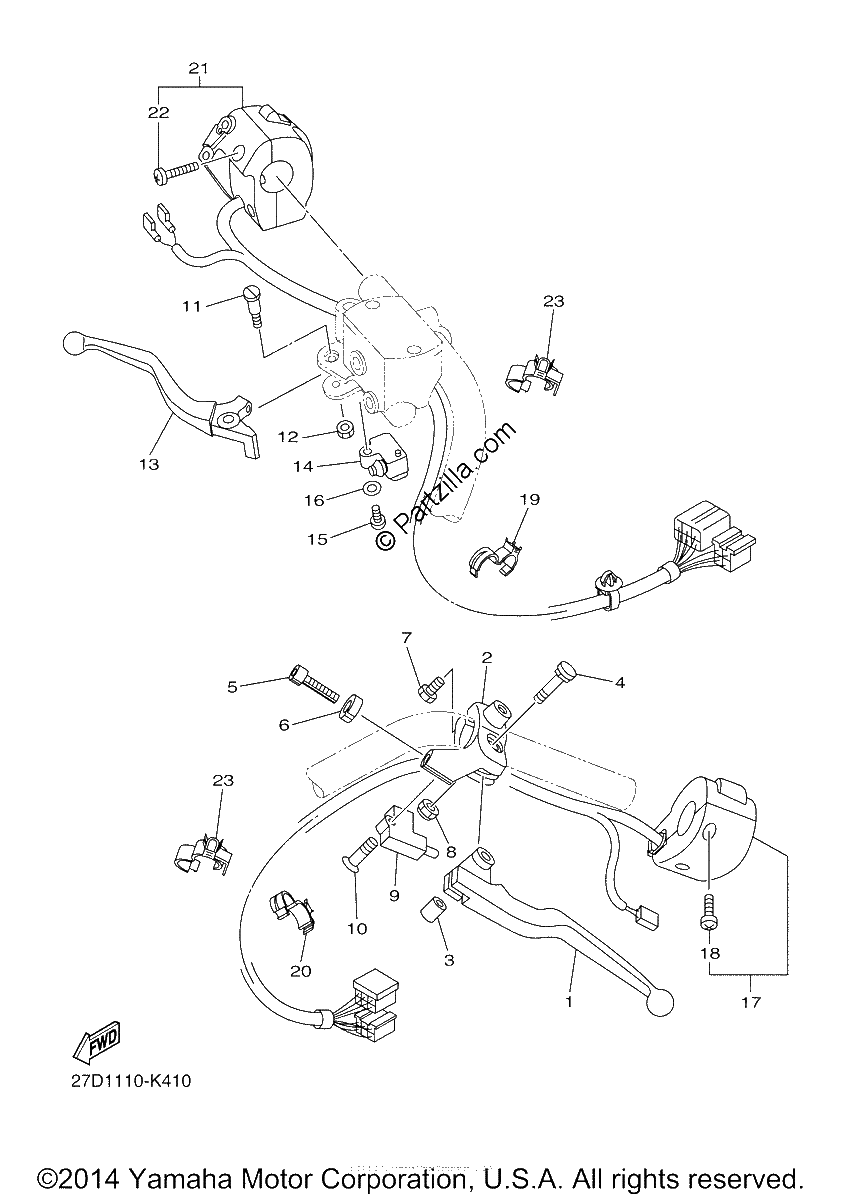

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
5BN-83912-20-00
LEVER 1
$46.98¢23 489
1
#2
5BN-82911-20-00
HOLDER, LEVER 1
$52.45¢26 226
1
#3
4TR-83913-00-00
COLLAR, LEVER 1
$7.30¢3 651
1
#4
4TR-83945-10-00
BOLT, LEVER
$15.02¢7 510
1
#5
90123-08046-00
BOLT
$10.06¢5 031
1
#6
90179-08148-00
NUT
$4.27¢2 133
1
#7
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$2.78¢1 392
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#9
3YX-82917-01-00
SWITCH
$43.52¢21 758
1
#10
98702-03020-00
SCREW, FLAT HEAD
$1.79¢897
1
#11
5VS-2589F-00-00
BOLT, LEVER
$13.48¢6 739
1
#12
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#13
3D8-83922-10-00
LEVER 2
$46.98¢23 489
1
#14
36Y-82917-10-00
SWITCH
$46.89¢23 443
1
#15
98580-04014-00
SCREW, PAN HEAD
$3.06¢1 529
1
#16
92990-04600-00
WASHER, PLATE
$1.10¢552
1
#17
27D-83973-00-00
SWITCH, HANDLE 3
$180.14¢90 068
1
#18
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#19
90464-15192-00
CLAMP
$6.75¢3 375
1
#20
90464-20191-00
Clamp
$8.06¢4 031
1
#21
27D-83972-00-00
SWITCH, HANDLE 4
$387.20¢193 603
1
#22
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#23
90464-15192-00
CLAMP
$6.75¢3 375
1
