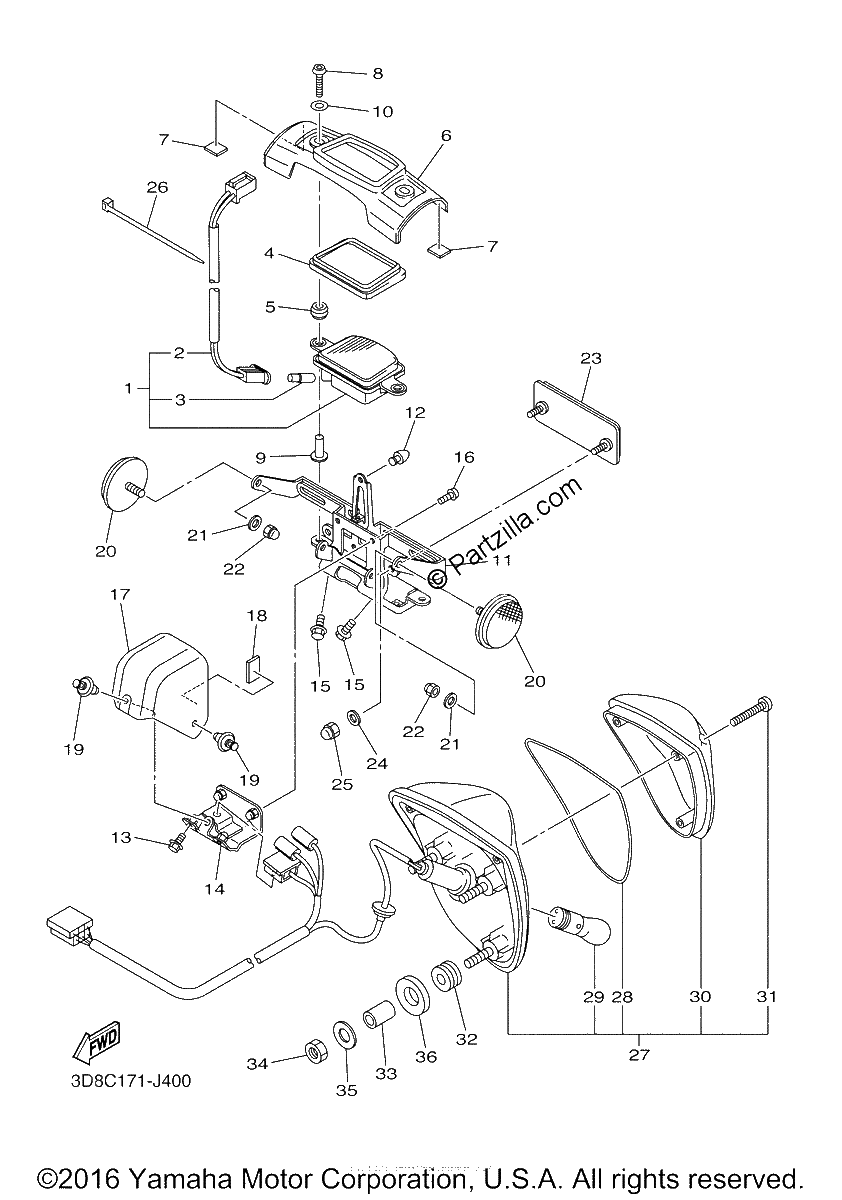

TAILLIGHT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
LICENCE LIGHT UNIT ASSY
$63.06¢31 531
#2
LICENCE LIGHT UNIT ASSY
$52.05¢26 025
#3
BULB (12V-5W)
$7.65¢3 825
#4
DAMPER
$9.64¢4 819
#5
GROMMET
$2.01¢1 006
#6
COVER, REAR FENDER 1
$91.81¢45 906
#7
PROTECTOR
$1.27¢638
#8
BOLT, HEX. SOCKET BUTTON
$3.94¢1 969
#9
COLLAR
$6.10¢3 050
#10
WASHER, PLATE
$3.98¢1 988
#11
BRACKET, LICENCE
$113.16¢56 581
#12
DAMPER 2
$29.67¢14 837
#13
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#14
STAY, LICENCE BRACKET
$28.81¢14 406
#15
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#16
BOLT, BUTTON HEAD
$2.44¢1 219
#17
COVER, REAR FENDER 3
$53.10¢26 550
#18
DAMPER 2
$6.45¢3 225
#19
RIVET
$8.25¢4 125
#20
REFLECTOR, REAR 1
$30.67¢15 337
#21
WASHER, PLATE
$7.95¢3 975
#22
NUT, CROWN
$4.15¢2 075
#23
REAR REFLECTOR ASSY
No Disponible
#24
WASHER, PLATE
$7.95¢3 975
#25
NUT, CROWN
$4.15¢2 075
#26
CLAMP 1
$7.86¢3 931
#27
TAILLIGHT ASSY
$167.64¢83 819
#28
GASKET, TAIL LENS
$12.75¢6 375
#29
BULB (12V-21/5W)
$14.50¢7 250
#30
LENS, TAILLIGHT
$33.90¢16 950
#31
SCREW
$4.19¢2 094
#32
GROMMET
$8.92¢4 462
#33
COLLAR
$7.34¢3 669
#34
NUT, HEXAGON
$5.05¢2 525
#35
WASHER, PLATE
$6.99¢3 494
#36
DAMPER
$8.03¢4 013
