FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

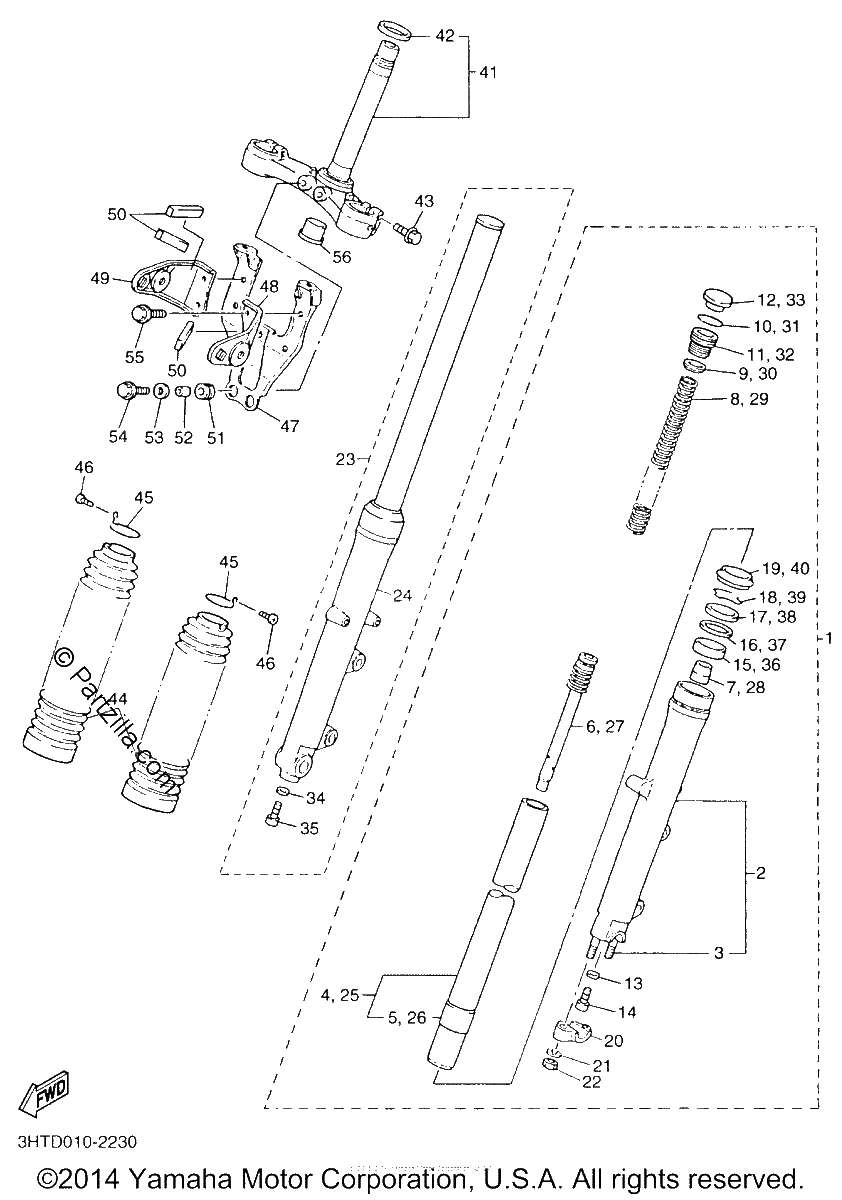

Diagrama de FRONT FORK

Repuestos

#1
3HT-23102-10-00
FRONT FORK ASSY (L.H)
$660.09¢330 044
1
#2
3HT-23126-10-00
TUBE, OUTER (L.H)
$254.09¢127 046
1
#3
90116-08261-00
BOLT, STUD
$4.48¢2 242
1
#4
3HT-23110-10-00
INNER TUBE COMP. 1
$242.91¢121 457
1
#5
5JX-23171-00-00
PISTON, FRONT FORK
$22.62¢11 310
1
#6
3HT-23170-10-00
CYLINDER COMP., FRONT FORK
$88.62¢44 310
1
#7
5JX-23173-00-00
SPINDLE, TAPER
$11.36¢5 681
1
#8
3HT-23141-10-00
SPRING, FRONT FORK
$31.76¢15 881
1
#9
1JN-23149-00-00
WASHER, SPRING UPPER
$2.77¢1 386
1
#10
2F0-23114-00-00
GASKET
$5.11¢2 553
1
#11
2J4-23111-30-00
BOLT, CAP
$35.67¢17 836
1
#12
1T3-23168-50-00
CAP, FRONT FORK
$7.98¢3 991
1
#13
509-23158-L0-00
GASKET | (KYB)
$15.72¢7 860
1
#14
3D8-23181-00-00
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
1
#15
5JX-23125-00-00
METAL, SLIDE 1
$19.14¢9 568
1
#16
5K5-23149-00-00
WASHER, SPRING UPPER
$8.39¢4 198
1
#17
5JX-23145-00-00
OIL SEAL
$14.34¢7 170
1
#18
4A1-23156-00-00
RING, SNAP
$5.21¢2 605
1
#19
5JX-23144-00-00
SEAL, DUST
$15.65¢7 826
1
#20
341-23167-50-00
HOLDER, AXLE
$50.84¢25 421
1
#21
92990-08600-00
WASHER, PLATE
$2.54¢1 271
1
#22
3HT-23357-10-00
NUT
$5.58¢2 789
1
#23
3HT-23103-10-00
FRONT FORK ASSY (R.H)
$660.09¢330 044
1
#24
3HT-23136-10-00
TUBE, OUTER (R.H)
$256.45¢128 225
1
#25
3HT-23110-10-00
INNER TUBE COMP. 1
$242.91¢121 457
1
#26
5JX-23171-00-00
PISTON, FRONT FORK
$22.62¢11 310
1
#27
3HT-23170-10-00
CYLINDER COMP., FRONT FORK
$88.62¢44 310
1
#28
5JX-23173-00-00
SPINDLE, TAPER
$11.36¢5 681
1
#29
3HT-23141-10-00
SPRING, FRONT FORK
$31.76¢15 881
1
#30
1JN-23149-00-00
WASHER, SPRING UPPER
$2.77¢1 386
1
#31
2F0-23114-00-00
GASKET
$5.11¢2 553
1
#32
2J4-23111-30-00
BOLT, CAP
$35.67¢17 836
1
#33
1T3-23168-50-00
CAP, FRONT FORK
$7.98¢3 991
1
#34
509-23158-L0-00
GASKET | (KYB)
$15.72¢7 860
1
#35
3D8-23181-00-00
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
1
#36
5JX-23125-00-00
METAL, SLIDE 1
$19.14¢9 568
1
#37
5K5-23149-00-00
WASHER, SPRING UPPER
$8.39¢4 198
1
#38
5JX-23145-00-00
OIL SEAL
$14.34¢7 170
1
#39
4A1-23156-00-00
RING, SNAP
$5.21¢2 605
1
#39
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#40
5JX-23144-00-00
SEAL, DUST
$15.65¢7 826
1
#41
3HT-23340-10-00
UNDER BRACKET COMP.
$273.23¢136 614
1
#42
164-23462-00-00
SEAL, DUST
$7.01¢3 507
1
#43
95814-08035-00
BOLT,FLANGE (replaces 95824-08035-00)
$7.30¢3 651
1
#44
1JN-23191-00-00
BOOT | GLOSS BLACK
$43.03¢21 517
1
#45
1JN-23192-00-00
BAND
$4.69¢2 346
1
#46
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#47
2J2-23121-04-00
COVER, UPPER 1
$55.75¢27 876
1
#48
3HT-23131-00-00
STEY, HEADLIGHT
$46.41¢23 207
1
#49
3HT-23174-00-00
STAY, HEADLIGHT
$47.28¢23 638
1
#50
3HT-2317J-01-00
DAMPER 1
$1.36¢678
1
#51
90480-14052-00
GROMMET
$4.81¢2 403
1
#52
90387-07573-00
COLLAR
$8.18¢4 088
1
#54
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#55
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#56
4KM-23123-01-00
COVER, UNDER 1
$13.48¢6 739
1
