INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

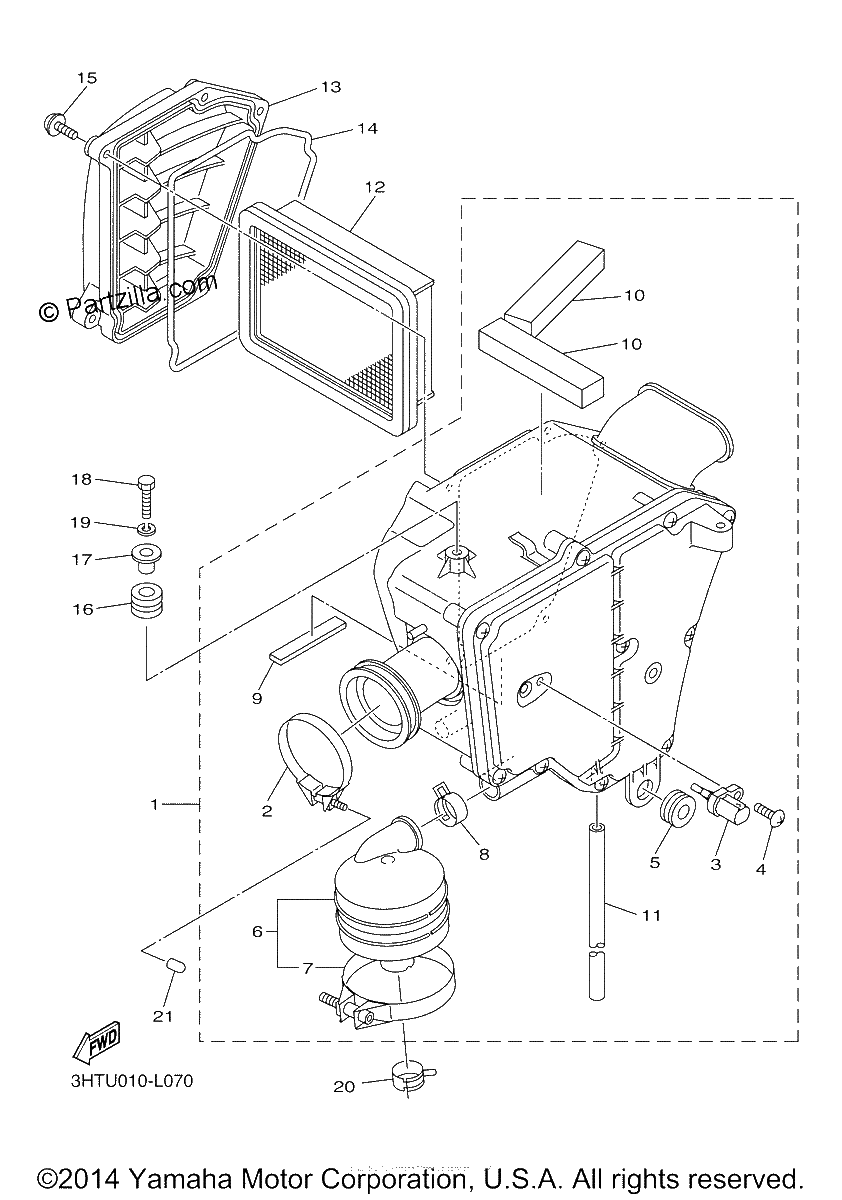

Diagrama de INTAKE

Repuestos

#1
3HT-14401-R0-00
AIR CLEANER CASE ASSY
$282.64¢141 319
1
#2
90450-55001-00
HOSE CLAMP ASSY
$6.55¢3 275
1
#3
8FP-85886-00-00
SENSOR, AIR TEMPERATURE
$61.02¢30 513
1
#4
98904-05012-00
SCREW,BINDING
$1.46¢731
1
#5
90480-14329-00
GROMMET
$7.94¢3 969
1
#6
3HT-15370-R0-00
BREATHER ASSY
$53.61¢26 806
1
#7
90450-73002-00
HOSE CLAMP ASSY
$12.05¢6 025
1
#8
90467-20154-00
CLIP
$2.20¢1 100
1
#9
3HT-14425-R0-00
DAMPER 1
$10.08¢5 038
1
#10
3HT-14426-R0-00
DAMPER 2
$9.15¢4 575
1
#11
90445-10144-00
HOSE
$5.40¢2 700
1
#12
4B5-14451-00-00
ELEMENT, AIR CLEANER
$37.91¢18 956
1
#13
3HT-1441A-R0-00
COVER, CLEANER CASE 1
$33.30¢16 650
1
#14
3HT-14462-R0-00
SEAL
$10.04¢5 019
1
#15
98902-05020-00
SCREW, BIND
$1.71¢856
1
#16
90480-14023-00
GROMMET
$5.81¢2 906
1
#17
90387-07391-00
COLLAR
$9.22¢4 613
1
#18
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#19
92907-06100-00
WASHER, SPRING
$1.23¢613
1
#20
90467-20154-00
CLIP
$2.20¢1 100
1
#21
895-14169-00-00
CAP
$4.76¢2 381
1
