COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

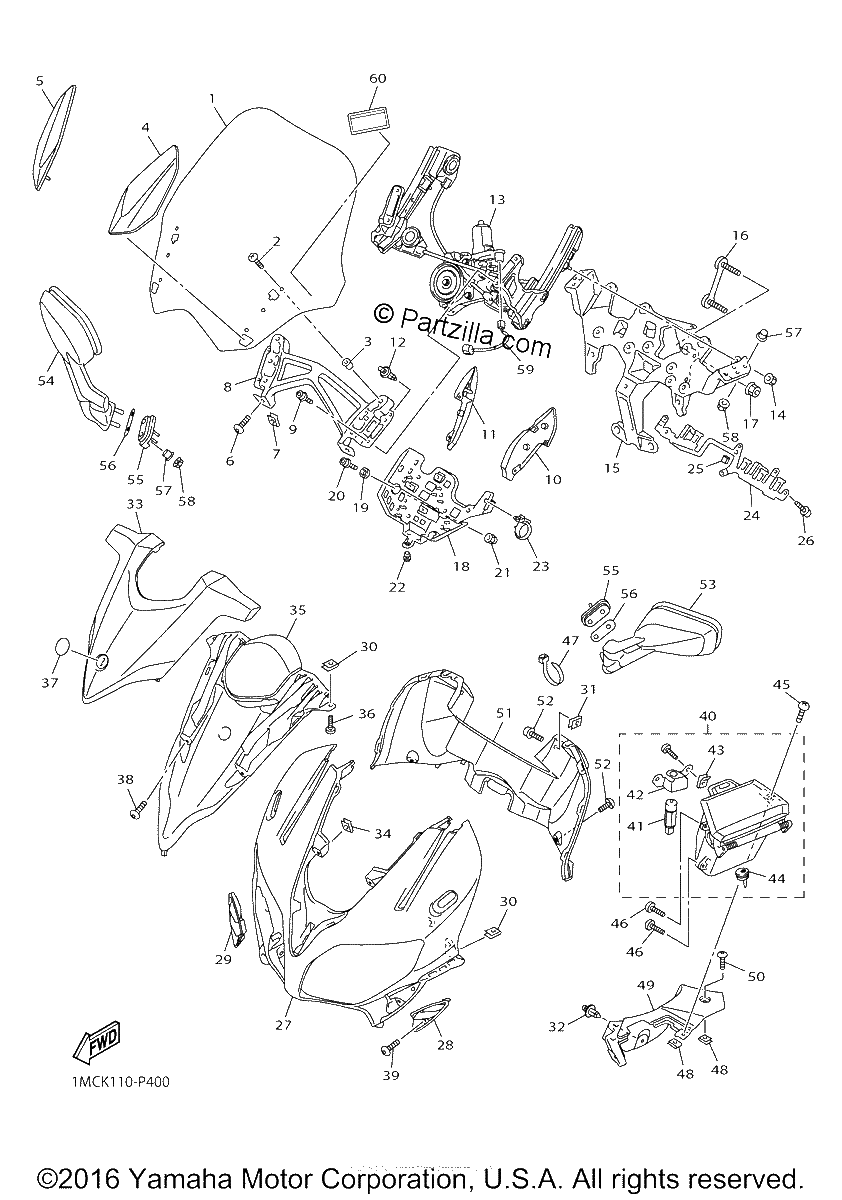

Diagrama de COWLING 1

Repuestos

#1
1MC-28381-00-00
WINDSHIELD
$576.24¢288 121
1
#2
90150-05024-00
SCREW, ROUND HEAD
$3.13¢1 564
1
#3
90179-05523-00
NUT
$6.23¢3 117
1
#4
1MC-2842A-00-P6
COVER 5 | DNMN
$90.31¢45 155
1
#5
1MC-2843C-00-P6
COVER 6 | DNMN
$113.83¢56 914
1
#6
92012-05012-00
BOLT, BUTTON HEAD
$2.99¢1 495
1
#7
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#8
1MC-28322-00-00
STAY 2
$77.60¢38 801
1
#9
90109-060E9-00
BOLT
$7.72¢3 858
1
#10
1MC-2843J-00-00
COVER 3
$7.23¢3 617
1
#11
1MC-2844J-00-00
COVER 4
$7.23¢3 617
1
#12
90269-05005-00
RIVET
$3.29¢1 644
1
#13
1MC-83306-00-00
DRIVE UNIT ASSY
$653.19¢326 594
1
#14
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#15
1MC-28356-01-00
STAY 1
$360.20¢180 102
1
#16
5JW-28336-00-00
PLATE
$22.72¢11 362
1
#17
95707-10500-00
NUT, FLANGE
$1.89¢943
1
#18
1MC-2838K-00-00
BOX 1
$16.87¢8 435
1
#19
90387-06106-00
COLLAR
$5.93¢2 967
1
#20
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#21
95380-06800-00
NUT, CROWN
$7.37¢3 686
1
#22
90338-07180-00
PLUG
$6.22¢3 111
1
#23
90464-36006-00
CLAMP
$2.40¢1 202
1
#24
1MC-28366-00-00
BRACKET
$45.60¢22 799
1
#25
1MC-2834E-00-00
DAMPER 3
$4.70¢2 352
1
#26
91312-06014-00
bolt
$5.20¢2 599
1
#27
1MC-2835G-00-P4
BODY, FRONT UPPER 1 | DNMN
$323.86¢161 932
1
#28
1MC-2837N-00-00
GRILL, AIR INTAKE 1
$12.63¢6 313
1
#29
1MC-2837R-00-00
GRILL, AIR INTAKE 2
$12.67¢6 336
1
#30
90183-05042-00
NUT, SPRING
$1.15¢575
1
#31
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#32
90269-06008-00
RIVET
$8.10¢4 048
1
#33
1MC-28351-00-P4
BODY, COWLING | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$239.84¢119 922
1
#34
90183-05042-00
NUT, SPRING
$1.15¢575
1
#35
1MC-2838N-00-00
DUCT 1
$227.16¢113 580
1
#36
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#37
8GC-2836B-02-00
TUNING FORK MARK
$39.61¢19 803
1
#38
90167-05080-00
SCREW, TAPPING
$2.08¢1 041
1
#39
3P6-26280-10-P5
REAR VIEW MIRROR ASSY (LEFT) | DNMN
$280.77¢140 386
1
#39
90167-05080-00
SCREW, TAPPING
$2.08¢1 041
1
#40
3P6-2830N-00-PC
BOX SUB ASSY | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$475.39¢237 693
1
#41
5VS-28470-00-00
LOCK ASSY
$222.21¢111 107
1
#42
5VS-28367-00-00
BRACKET
$11.52¢5 761
1
#43
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#44
3P6-28187-00-00
GROMMET
$7.92¢3 962
1
#45
90154-05007-00
SCREW, BINDING
$3.29¢1 644
1
#46
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#47
90464-16019-00
Clamp
$0.76¢380
1
#48
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#49
1MC-28365-00-00
COVER
$263.49¢131 744
1
#50
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#51
1MC-2837L-00-00
PANEL, CONSOLE 1
$226.72¢113 361
1
#52
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#54
3P6-26290-10-P5
REAR VIEW MIRROR ASSY (RIGHT) | DNMN
$233.97¢116 984
1
#55
5JW-26298-00-00
PLATE, MIRROR FITTING 1
$12.60¢6 302
1
#56
3P6-26299-00-00
PLATE, MIRROR FITTING 2
$7.04¢3 519
1
#57
90387-0602X-00
COLLAR
$9.12¢4 560
1
#58
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#59
1MC-82507-00-00
WIRE, LEAD
$18.63¢9 315
1
#60
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
