SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

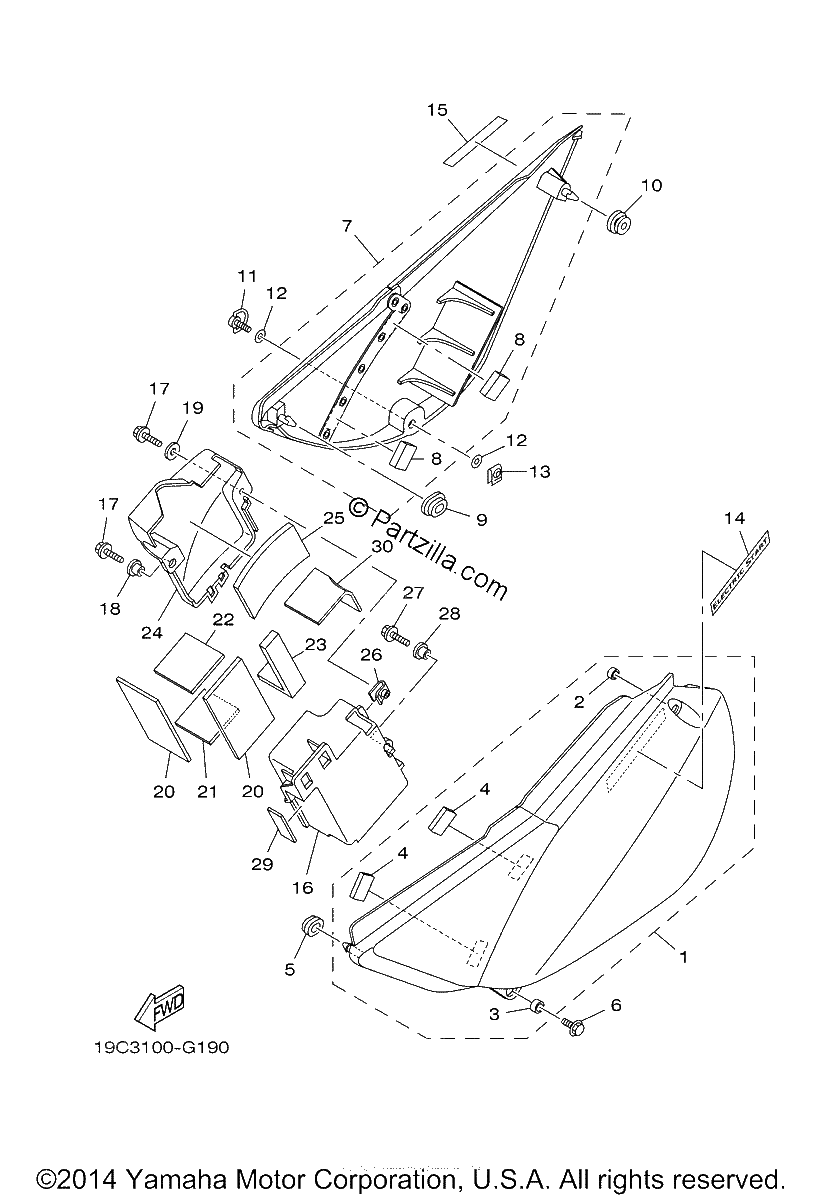

Diagrama de SIDE COVER

Repuestos

#1
1B2-F1710-00-00
SIDE COVER ASSY 1
$75.65¢37 825
1
#2
90387-064X4-00
Collar
$6.41¢3 206
1
#3
90387-1001B-00
COLLAR
$3.71¢1 856
1
#4
1B2-21717-00-00
Damper
$5.88¢2 938
1
#5
90480-01868-00
GROMMET
$4.69¢2 344
1
#6
90119-06018-00
BOLT,WITH WASHER
$7.34¢3 669
1
#7
1B2-F1720-00-00
SIDE COVER ASSY 2
$75.65¢37 825
1
#8
1B2-21778-00-00
DAMPER, locating 1
$5.91¢2 956
1
#9
90480-01868-00
GROMMET
$4.69¢2 344
1
#10
90480-13014-00
GROMMET
$8.16¢4 081
1
#11
3FV-28386-00-00
HEAD (SPECIAL FASTE
$42.46¢21 231
1
#12
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#13
4XV-2177L-01-00
PLATE, SPRING
$7.39¢3 694
1
#14
1B2-F1737-00-00
EMBLEM
No Disponible
1
#15
1B2-F1737-00-00
EMBLEM
No Disponible
1
#16
1B2-F177G-00-00
BOX, BATTERY
$29.20¢14 600
1
#17
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#18
90387-06178-00
Collar
$3.77¢1 888
1
#19
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$7.48¢3 738
1
#20
1B2-F174X-00-00
Damper
$1.94¢969
1
#21
1B2-F1746-00-00
Damper
$0.91¢456
1
#22
1B2-F174Y-00-00
Damper
$2.01¢1 006
1
#23
1B2-F1747-00-00
Damper
$0.91¢456
1
#24
1B2-H2129-10-00
Cover, Battery
$19.74¢9 869
1
#25
1B2-H2121-00-00
Pad, BATTERY
$3.33¢1 663
1
#26
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#27
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#28
90387-087L0-00
COLLAR
$7.35¢3 675
1
#29
1B2-F1639-00-00
DAMPER 2
$0.41¢206
1
#30
1B2-8252U-00-00
Cover
$22.01¢11 006
1
