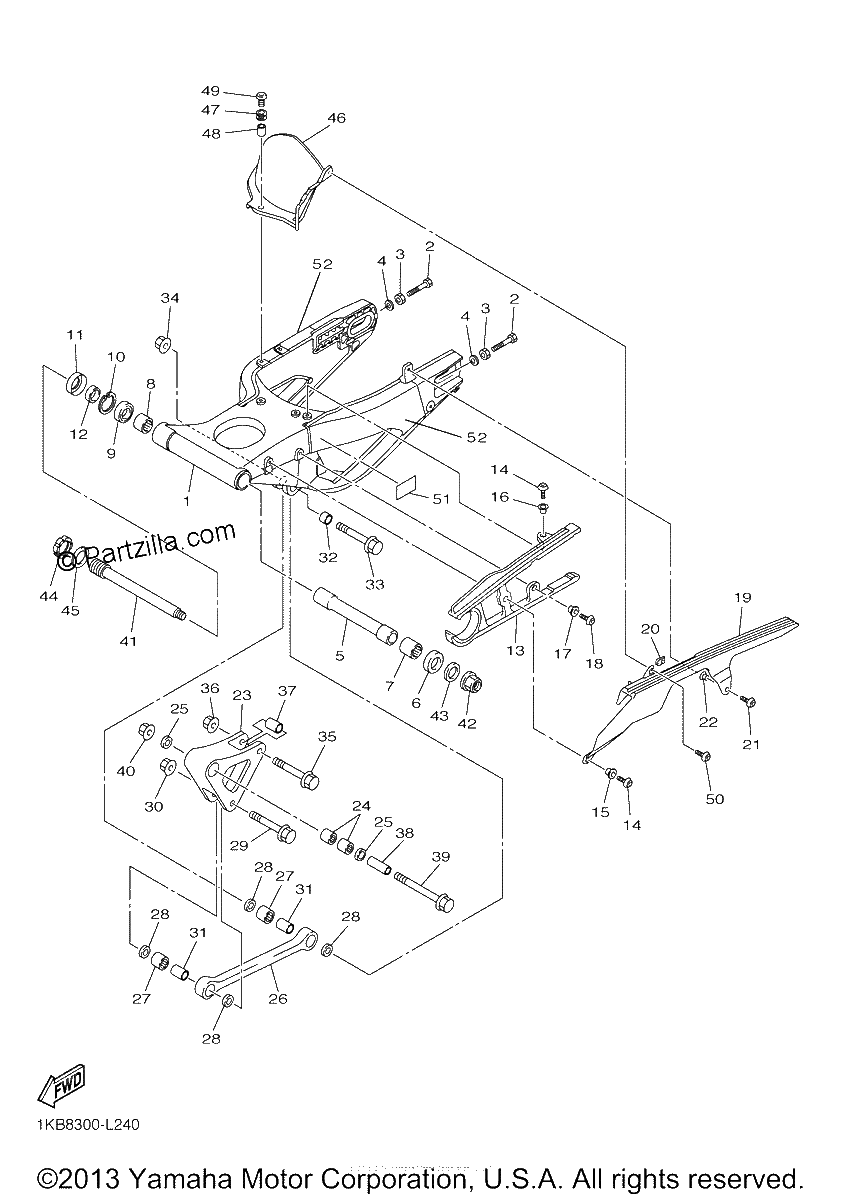

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP. | MBL2
$1657.14¢828 569
#2
BOLT
$3.29¢1 644
#3
NUT
$3.51¢1 754
#4
WASHER, PLATE
$6.83¢3 415
#5
BUSH
$67.79¢33 896
#6
COVER, THRUST 1
$14.54¢7 268
#7
BEARING
$54.19¢27 094
#8
BEARING
$37.40¢18 699
#9
BEARING
$39.48¢19 740
#10
CIRCLIP
$7.42¢3 709
#11
OIL SEAL
$9.14¢4 571
#12
COLLAR
$30.06¢15 031
#13
SEAL, GUARD
$70.82¢35 409
#14
BOLT, BUTTON HEAD
$6.82¢3 410
#15
COLLAR
$18.85¢9 424
#16
Collar
$5.86¢2 932
#17
Collar
$5.86¢2 932
#18
BOLT, BUTTON HEAD
$6.82¢3 410
#19
CASE, CHAIN
$26.59¢13 294
#20
NUT, SPRING
$2.60¢1 299
#21
BOLT, HEX. SOCKET BUTTON
$7.07¢3 536
#22
COLLAR
$6.75¢3 375
#23
ARM, RELAY
$110.14¢55 068
#24
BEARING
$38.04¢19 021
#25
OIL SEAL
$7.38¢3 691
#26
ARM 1
$58.44¢29 222
#27
BEARING
$38.04¢19 021
#28
OIL SEAL
$7.38¢3 691
#29
BOLT, FLANGE
$21.50¢10 753
#30
NUT, U FLANGE
$2.51¢1 254
#31
COLLAR
$19.48¢9 741
#32
COLLAR
$22.25¢11 126
#33
BOLT, FLANGE
$19.04¢9 522
#34
NUT, U FLANGE
$2.51¢1 254
#35
BOLT, FLANGE
$21.50¢10 753
#36
NUT, U FLANGE
$2.51¢1 254
#37
COLLAR
$19.48¢9 741
#38
COLLAR
$26.54¢13 271
#39
BOLT, FLANGE
$9.79¢4 893
#40
NUT, U FLANGE
$2.51¢1 254
#41
SHAFT, PIVOT
$95.70¢47 851
#42
NUT, SELF-LOCKING
$31.75¢15 876
#43
WASHER, PLATE
$10.28¢5 140
#44
NUT
$18.85¢9 424
#45
WASHER, PLATE
$10.87¢5 434
#46
REAR FENDER COMP.
$37.08¢18 538
#47
GROMMET
$7.60¢3 801
#48
COLLAR
$6.75¢3 375
#49
SCREW
$4.70¢2 352
#50
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
#51
LABEL, TIRE
$3.32¢1 662
#52
SPONSOR STICKER KIT
$47.56¢23 782
