FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

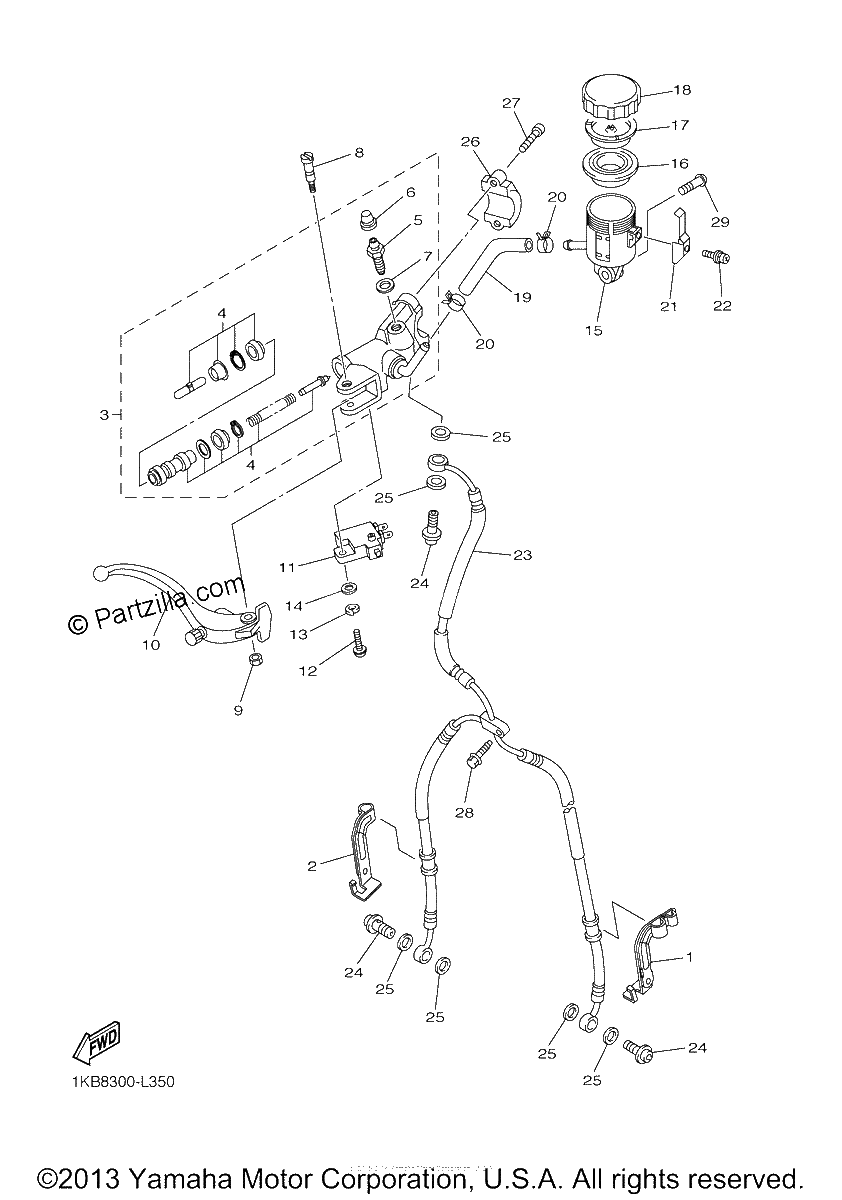

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
1KB-25875-00-00
HOLDER, BRAKE HOSE 1
$16.64¢8 320
1
#2
14B-25876-00-00
HOLDER, BRAKE HOSE 2
$15.63¢7 814
1
#3
14B-W2587-00-00
MASTER CYLINDER SUB ASSY
$303.08¢151 541
1
#4
2S3-W0041-00-00
CYLINDER KIT, MASTER
$84.02¢42 009
1
#5
3YK-25824-00-00
SCREW, BLEED
$8.26¢4 129
1
#6
3YK-25825-00-00
CAP
$12.79¢6 394
1
#7
5VY-25975-00-00
SEAL 1
$1.77¢886
1
#8
5VY-2589F-01-00
BOLT, LEVER
$13.96¢6 981
1
#9
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#10
14B-83922-00-00
LEVER 2
$91.23¢45 615
1
#11
4HM-83980-00-00
FRONT STOP SWITCH ASSY
$40.23¢20 114
1
#12
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#13
92902-04100-00
WASHER, SPRING
$0.68¢339
1
#14
92990-04600-00
WASHER, PLATE
$1.10¢552
1
#15
5SL-25894-20-00
TANK, RESERVOIR
$36.20¢18 101
1
#16
5VY-25854-00-00
DIAPHRAGM, RESERVOIR
$30.90¢15 450
1
#17
5VY-25855-00-00
BUSH, DIAPHRAGM
$4.13¢2 064
1
#18
5VY-25852-00-00
CAP, RESERVOIR
$17.39¢8 694
1
#19
5VY-25895-10-00
HOSE, RESERVOIR
$23.70¢11 851
1
#20
90467-120A3-00
CLIP
$6.43¢3 214
1
#21
5VY-2589G-00-00
HOLDER
$8.21¢4 105
1
#22
5VY-2589H-00-00
SCREW
$6.99¢3 496
1
#23
1KB-25872-00-00
HOSE, BRAKE 1
$212.89¢106 444
1
#24
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#25
90430-10005-00
GASKET
$7.72¢3 858
1
#26
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$34.79¢17 394
1
#27
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#28
90105-06041-00
BOLT, FLANGE
$6.06¢3 030
1
#29
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
