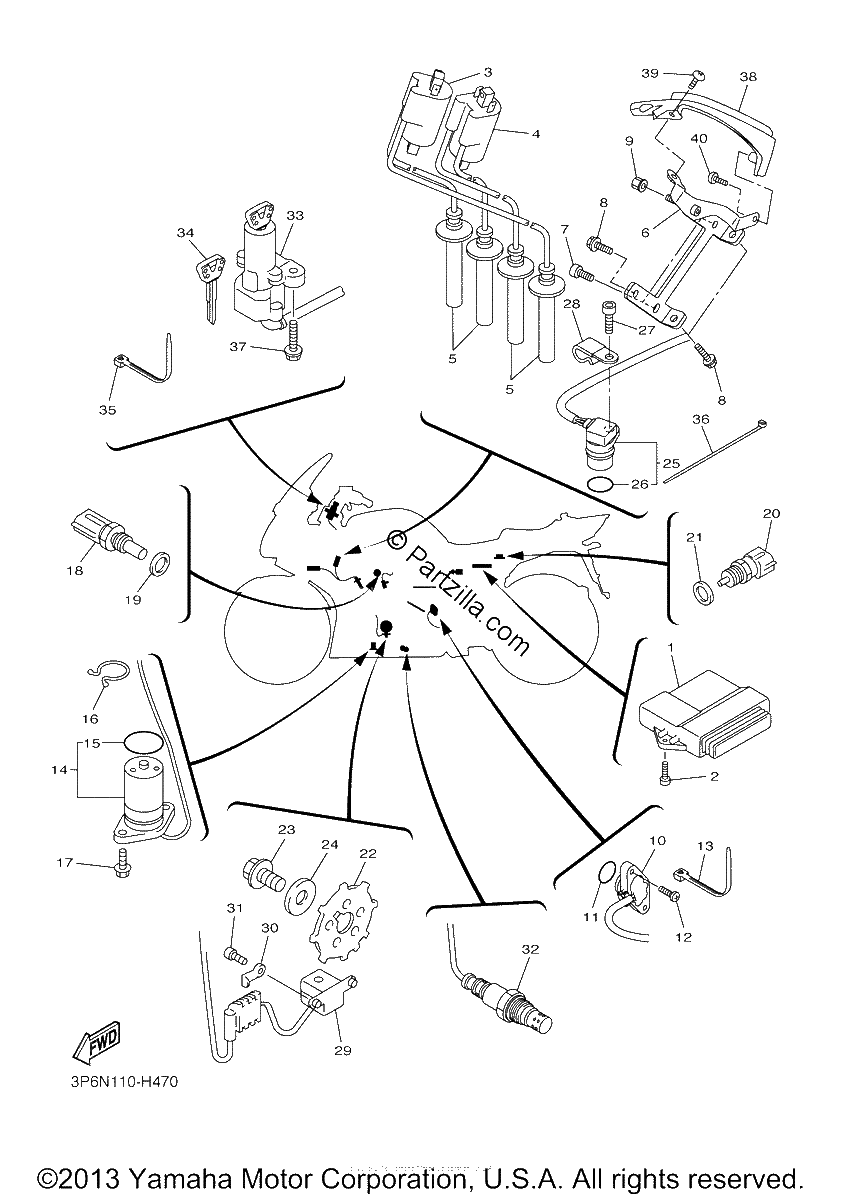

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
ENGINE CONTROL UNIT ASSY
$1398.39¢699 194
#2
SCREW, TAPPING
$0.38¢190
#3
IGNITION COIL ASSY
$137.53¢68 764
#4
IGNITION COIL ASSY
No Disponible
#5
PLUG CAP ASSY
$162.53¢81 265
#6
BRACKET, IGNITION COIL
$61.08¢30 538
#7
BOLT
$6.75¢3 375
#8
BOLT, FLANGE
$3.65¢1 823
#9
NUT
$4.88¢2 438
#10
NEUTRAL SWITCH ASSY
$76.68¢38 341
#11
O-RING
$5.23¢2 616
#12
SCREW, BINDING
$1.68¢839
#13
BAND
$4.52¢2 260
#14
OIL LEVEL GAUGE ASSY
$166.58¢83 289
#15
O-RING
$13.89¢6 946
#16
CLAMP
$9.46¢4 732
#17
BOLT, FLANGE
$3.65¢1 823
#18
THERMOSENSOR ASSY
$97.93¢48 967
#19
WASHER, PLATE
$7.51¢3 755
#20
THERMOSENSOR ASSY
$87.54¢43 769
#21
GASKET (2GH)
$7.77¢3 887
#22
ROTOR
$19.42¢9 712
#23
BOLT, FLANGE
$6.36¢3 180
#24
WASHER, PLATE
$9.98¢4 991
#25
SENSOR, SPEED
$158.23¢79 114
#26
O-RING
$4.74¢2 369
#27
BOLT
$1.35¢673
#28
CLAMP
$2.77¢1 386
#29
PICK-UP ASSY
$133.68¢66 838
#30
CLAMP
$3.82¢1 909
#31
BOLT
$1.91¢954
#32
SENSOR, OXYGEN
$424.99¢212 497
#33
MAIN SWITCH STEERING LOCK
$186.20¢93 098
#34
BLANK KEY | AP
$26.78¢13 392
#35
CLAMP
$2.55¢1 277
#36
CLAMP 1
$7.23¢3 617
#37
BOLT
$6.76¢3 381
#38
GUIDE, AIR 2
$30.14¢15 071
#39
SCREW, BINDING
$5.34¢2 668
#40
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
