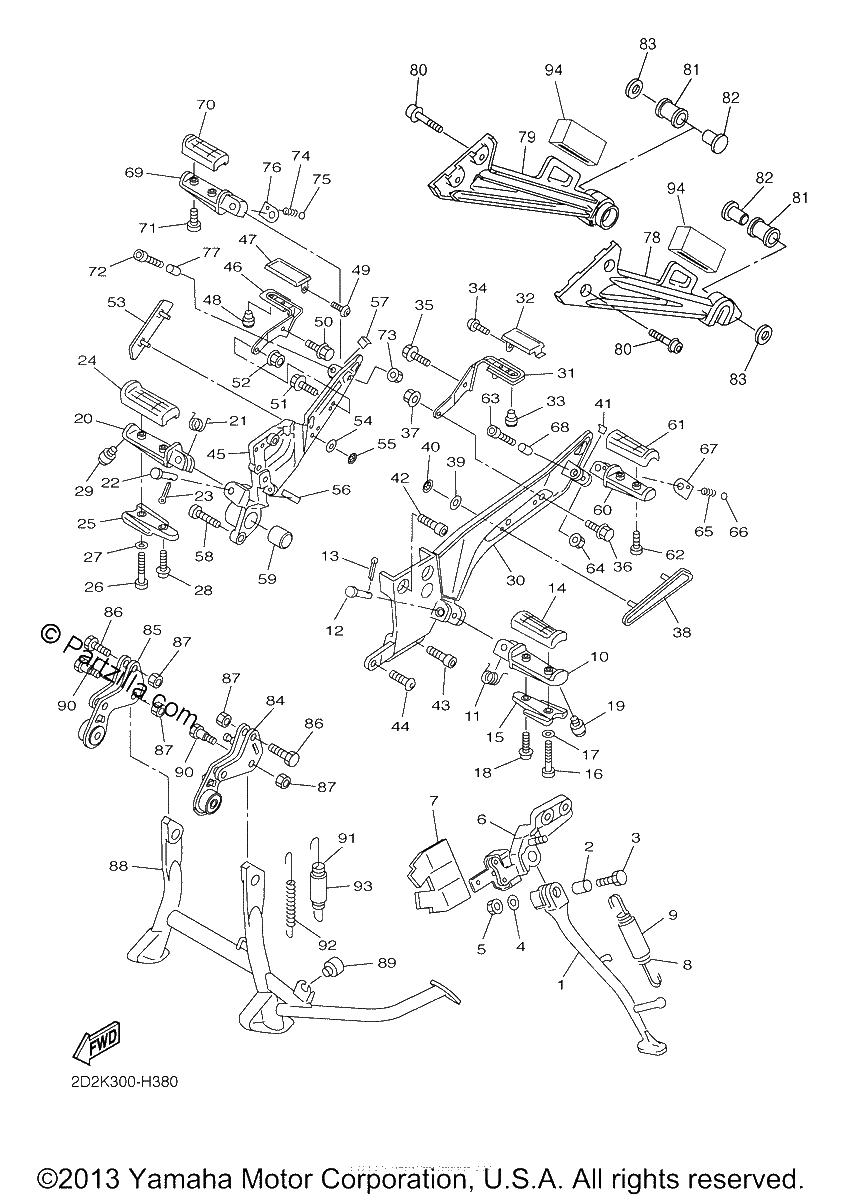

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$223.43¢111 713
#2
COLLAR
$14.24¢7 119
#3
bolt
$9.24¢4 619
#4
WASHER (replaces 92902-10200-00)
$3.41¢1 706
#5
NUT, U
$7.35¢3 675
#6
BRACKET, SIDE STAND
$281.77¢140 888
#7
PROTECTOR
$6.72¢3 363
#8
SPRING, TENSION
$11.35¢5 675
#9
HOSE (L60)
$4.68¢2 338
#10
FOOTREST
$60.51¢30 256
#11
SPRING, TORSION
$3.30¢1 650
#12
PIN
$4.84¢2 419
#13
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#14
COVER, FOOTREST
$30.05¢15 025
#15
ARM 1
$82.40¢41 200
#16
SCREW, WITH WASHER
$7.94¢3 969
#17
WASHER, PLATE
$0.66¢331
#18
SCREW, WITH WASHER
$2.88¢1 438
#19
BOLT
$29.94¢14 969
#20
FOOTREST
$60.30¢30 150
#21
SPRING, TORSION
$2.97¢1 487
#22
PIN
$4.84¢2 419
#23
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#24
COVER, FOOTREST
$30.05¢15 025
#25
ARM 1
$82.40¢41 200
#26
SCREW, WITH WASHER
$7.94¢3 969
#27
WASHER, PLATE
$0.66¢331
#28
SCREW, WITH WASHER
$2.88¢1 438
#29
BOLT
$29.94¢14 969
#30
BRACKET 2
$230.32¢115 163
#31
STOPPER
$41.04¢20 519
#32
PLATE
$6.14¢3 069
#33
PLUG
$9.91¢4 956
#34
BOLT, BUTTON HEAD
$0.51¢256
#35
BOLT, FLANGE
$8.22¢4 113
#36
BOLT
$7.39¢3 694
#37
NUT, FLANGE
$0.99¢494
#38
COVER, FOOTREST
$19.75¢9 875
#39
WASHER, PLATE
$3.01¢1 506
#39
COVER, FOOTREST
$19.75¢9 875
#40
NUT, SPRING
$8.65¢4 325
#41
SEAL
$8.97¢4 488
#42
BOLT
$8.22¢4 113
#43
BOLT
$7.52¢3 762
#44
SCREW
$8.18¢4 088
#45
BRACKET 3
$184.51¢92 256
#46
STOPPER, 3
$40.95¢20 475
#47
PLATE
$6.14¢3 069
#48
PLUG
$9.91¢4 956
#49
BOLT, BUTTON HEAD
$0.51¢256
#50
BOLT, FLANGE
$8.22¢4 113
#51
BOLT
$7.39¢3 694
#52
NUT, FLANGE
$0.99¢494
#54
WASHER, PLATE
$3.01¢1 506
#55
NUT, SPRING
$8.65¢4 325
#56
LABEL
$3.94¢1 969
#57
SEAL
$8.97¢4 488
#58
BOLT, HEXAGON
$6.70¢3 350
#59
BUSH, SOLID
$31.31¢15 656
#60
FOOTREST, REAR 1
$39.40¢19 700
#61
COVER, FOOTREST
$30.05¢15 025
#62
SCREW, PAN HEAD
$6.26¢3 131
#63
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#64
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#65
SPRING, COMPRESSION
$1.94¢969
#66
BALL
$7.46¢3 731
#67
WASHER, special
$7.03¢3 513
#68
COLLAR
$4.60¢2 300
#69
FOOTREST, REAR 2
$39.40¢19 700
#70
COVER, FOOTREST
$30.05¢15 025
#71
SCREW, PAN HEAD
$6.26¢3 131
#72
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#73
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#74
SPRING, COMPRESSION
$1.94¢969
#75
BALL
$7.46¢3 731
#76
WASHER, special
$7.03¢3 513
#77
COLLAR
$4.60¢2 300
#78
STAY, MUFFLER 1
$192.86¢96 431
#79
STAY, MUFFLER 2
$188.78¢94 388
#80
BOLT, HEXAGON
$6.70¢3 350
#81
DAMPER, FOOTREST 2
$18.69¢9 344
#82
COLLAR
$13.90¢6 950
#83
WASHER, PLATE
$7.46¢3 731
#84
BRACKET, MAIN STAND
$136.02¢68 012
#85
BRACKET, MAIN STAND 2
$100.69¢50 344
#86
BOLT
$2.61¢1 306
#87
NUT, U FLANGE
$2.73¢1 363
#88
STAND, MAIN
$284.51¢142 256
#89
STOPPER, MAIN STAND
$18.82¢9 413
#90
BOLT
$9.91¢4 956
#91
SPRING, TENSION
$29.28¢14 638
#92
SPRING, TENSION
$13.85¢6 925
#93
HOSE (L60)
$7.90¢3 950
#94
SIDE CASE BRACKET RUBBER SET | SET OF 2
No Disponible
