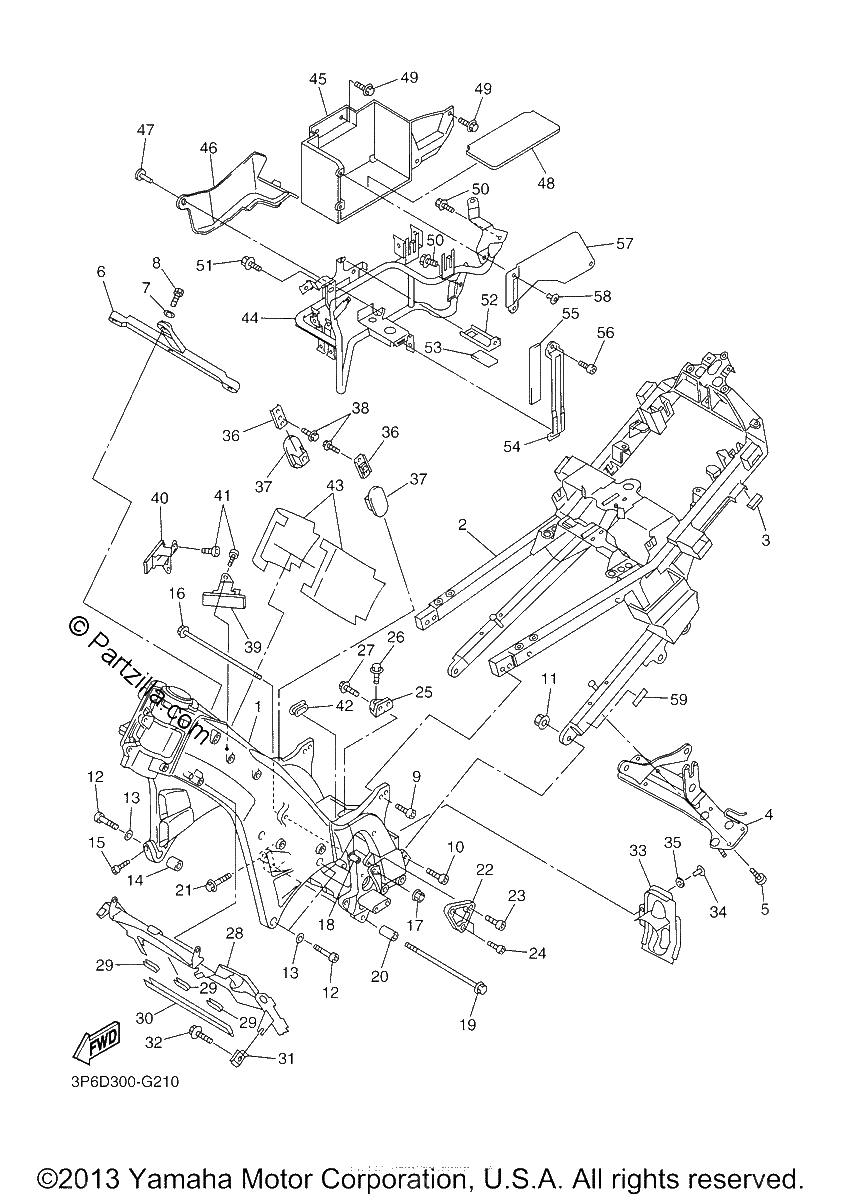

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$3058.99¢1 529 494
#2
REAR FRAME COMP.
$1463.32¢731 659
#3
PROTECTOR
$3.43¢1 713
#4
MEMBER 1
No Disponible
#5
SCREW
$4.70¢2 352
#6
CROSS-TUBE
$332.95¢166 474
#7
WASHER, PLATE
$8.39¢4 198
#8
BOLT,FLANGE (replaces 95827-10030-00)
$6.75¢3 375
#9
BOLT
$6.83¢3 415
#10
BOLT, HEXAGON SOCKET HEAD
$5.00¢2 501
#11
NUT, U FLANGE
$2.51¢1 254
#12
BOLT, HEXAGON SOCKET HEAD
$8.43¢4 215
#13
WASHER (replaces 92902-12600-00)
$1.35¢673
#14
COLLAR
$19.11¢9 557
#15
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#16
BOLT, FLANGE
No Disponible
#17
NUT
$5.37¢2 685
#18
BOLT, ENGINE ADJUSTING
$20.82¢10 408
#19
BOLT, FLANGE
$12.72¢6 360
#20
SPACER
$15.33¢7 665
#21
Bolt, Flange
$3.56¢1 783
#22
STAY, ENGINE 1
$12.21¢6 106
#23
BOLT, HEXAGON SOCKET HEAD
$7.57¢3 783
#24
BOLT, HEXAGON SOCKET HEAD
$7.77¢3 887
#25
STAY, ENGINE 2
$72.62¢36 311
#26
BOLT (L=25, P=1.25)
$5.78¢2 892
#27
BOLT, FLANGE
$6.88¢3 439
#28
GUIDE, AIR
$38.62¢19 309
#29
SEAL
$1.28¢638
#30
SEAL, AIR
$5.58¢2 789
#31
NUT, SPRING
$6.68¢3 341
#32
BOLT, WITH WASHER
$6.57¢3 283
#33
COVER, SHAFT 1
$4.11¢2 053
#34
RIVET
$2.78¢1 392
#35
WASHER, PLATE
$3.83¢1 915
#36
BRACKET 3
$12.79¢6 394
#37
BRACKET, INNER 1
$31.96¢15 979
#38
BOLT, FLANGE
$3.29¢1 644
#39
BRACKET, INNER 2
$25.24¢12 621
#39
DAMPER 3
$7.23¢3 617
#40
BRACKET, INNER 2
$21.18¢10 592
#41
BOLT, BUTTON HEAD
$3.06¢1 529
#42
CAP
$35.39¢17 693
#43
DAMPER
$9.20¢4 600
#44
STAY 1
$139.70¢69 851
#45
BOX, BATTERY
$29.16¢14 582
#46
GUIDE, AIR 3
$30.34¢15 168
#47
RIVET
$1.75¢874
#48
SEAT, BATTERY
$3.43¢1 713
#49
BOLT, WITH WASHER
$6.16¢3 082
#50
BOLT, FLANGE
$3.29¢1 644
#51
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#52
STAY 2
$16.16¢8 079
#54
STAY 3
$17.48¢8 740
#55
DAMPER 4
$1.97¢983
#56
BOLT
$6.75¢3 375
#57
COVER
No Disponible
#58
RIVET
$5.93¢2 967
#59
LABEL 1
$7.23¢3 617
