TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

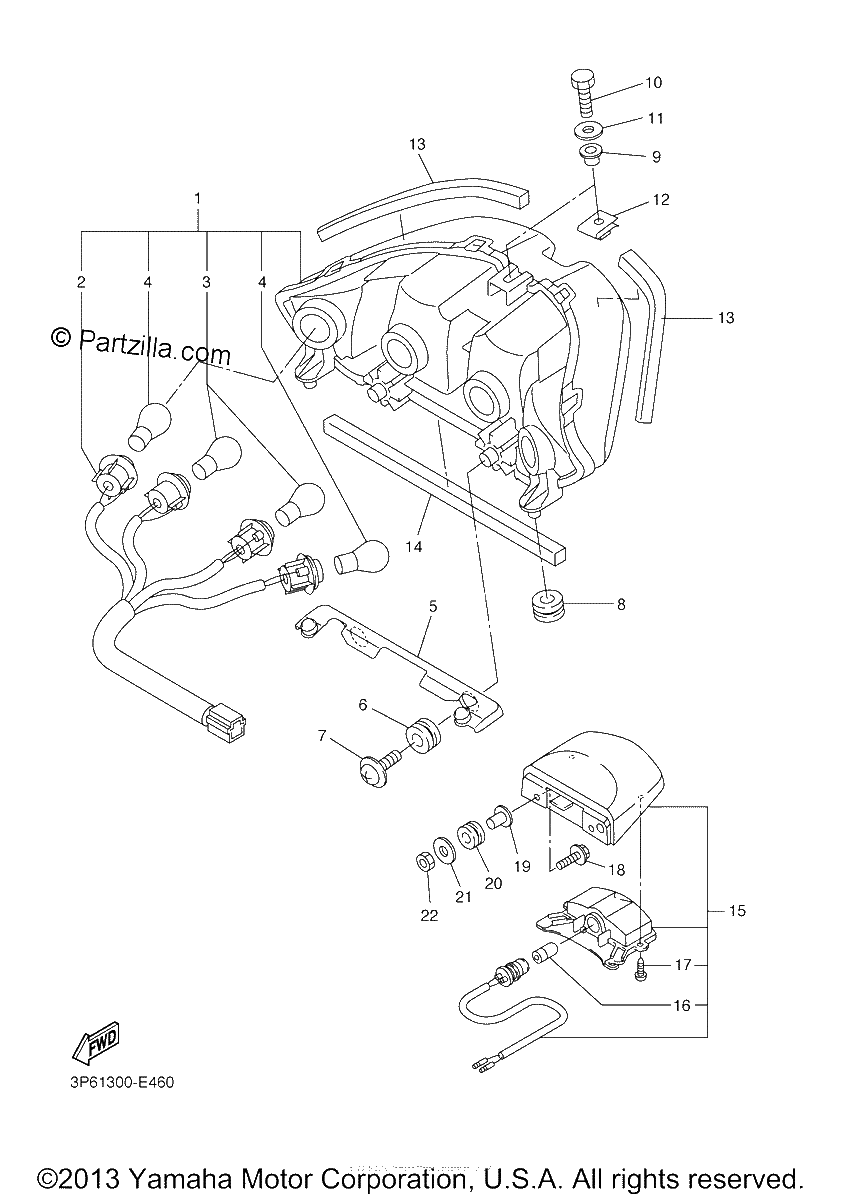

Diagrama de TAILLIGHT

Repuestos

#1
3P6-84710-10-00
TAILLIGHT UNIT ASSY
$300.06¢150 029
1
#2
3P6-84735-00-00
SOCKET CORD ASSY
$62.70¢31 349
1
#3
1A2-84714-50-00
BULB (12V-21/5W)
$13.34¢6 670
1
#4
3P6-83331-00-00
BULB, FLASHER (12V-21W)
$8.21¢4 105
1
#5
3P6-2117E-00-00
BRACKET, TAILLIGHT
$41.80¢20 901
1
#6
90480-18276-00
GROMMET
$7.30¢3 651
1
#7
90164-05001-00
SCREW, TAPPING
$6.88¢3 439
1
#8
4XV-83513-00-00
DAMPER
$7.01¢3 507
1
#9
90387-07391-00
COLLAR
$8.49¢4 244
1
#10
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#11
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#12
90183-060A7-00
NUT, SPRING
$7.11¢3 553
1
#13
4FU-21747-00-00
DAMPER
$6.51¢3 254
1
#14
2D1-24737-00-00
DAMPER, SEAT
$4.19¢2 093
1
#15
2D1-84745-00-00
LICENSE LIGHT UNIT ASSY
$135.90¢67 948
1
#16
4SV-84347-00-00
BULB (12V-5W)
$7.04¢3 519
1
#17
97707-40012-00
SCREW, TAPPING
$7.31¢3 657
1
#18
90159-05035-00
SCREW, WITH WASHER
$6.82¢3 410
1
#19
90387-05003-00
COLLAR
$5.08¢2 541
1
#20
90480-11008-00
GROMMET
$4.98¢2 490
1
#21
90201-05043-00
WASHER, PLATE
$5.96¢2 978
1
#22
95617-05100-00
NUT, U
$7.30¢3 651
1
