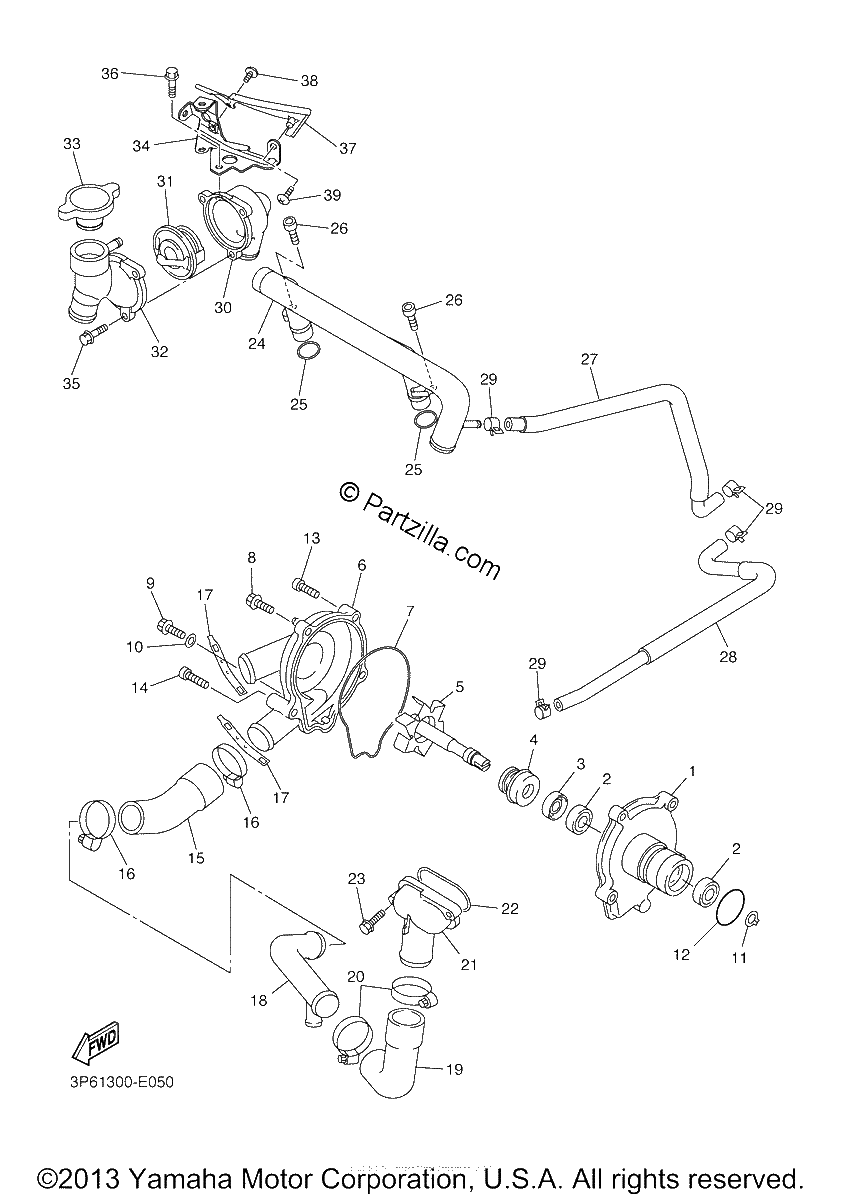

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
HOUSING, WATER PUMP
$206.51¢103 256
#2
BEARING
$30.26¢15 131
#3
OIL SEAL
$11.68¢5 838
#4
SEAL, MECHANICAL
$62.31¢31 156
#5
IMPELLER SHAFT ASSY
$86.39¢43 194
#6
COVER, HOUSING
$239.55¢119 775
#7
O-RING
$12.82¢6 413
#8
BOLT, FLANGE
$4.44¢2 219
#9
Bolt, Flange
$3.06¢1 531
#10
GASKET
$8.25¢4 125
#11
CIRCLIP
$3.66¢1 831
#12
O-RING
$3.59¢1 794
#13
BOLT, HEXAGON SOCKET HEAD
$3.06¢1 531
#14
BOLT, HEXAGON SOCKET HEAD
$4.04¢2 019
#15
HOSE 1
$28.13¢14 063
#16
HOSE CLAMP ASSY
$18.77¢9 388
#17
COVER 2
$4.80¢2 400
#18
JOINT, HOSE 1
$88.19¢44 094
#19
HOSE 2
$30.72¢15 362
#20
HOSE CLAMP ASSY
$18.77¢9 388
#21
JOINT 1
$41.46¢20 731
#22
O-RING
$6.60¢3 300
#23
BOLT, FLANGE
$3.96¢1 981
#24
PIPE 1
$205.76¢102 881
#25
O-RING
$5.78¢2 888
#26
BOLT
$5.84¢2 919
#27
HOSE 3
$32.27¢16 138
#28
HOSE 4
$34.49¢17 244
#29
CLIP
$8.24¢4 119
#30
HOUSING, THERMOSTAT
$40.81¢20 406
#31
THERMOSTAT ASSY
$42.39¢21 194
#32
SUPPORT, FILLER NECK
$66.80¢33 400
#33
CAP, RADIATOR
$72.66¢36 331
#34
BRACKET 1
$35.65¢17 825
#35
BOLT, FLANGE
$3.96¢1 981
#36
BOLT, FLANGE
$3.57¢1 787
#37
GUIDE, AIR 1
$33.20¢16 600
#38
SCREW, BINDING
$5.80¢2 900
#39
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
