STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

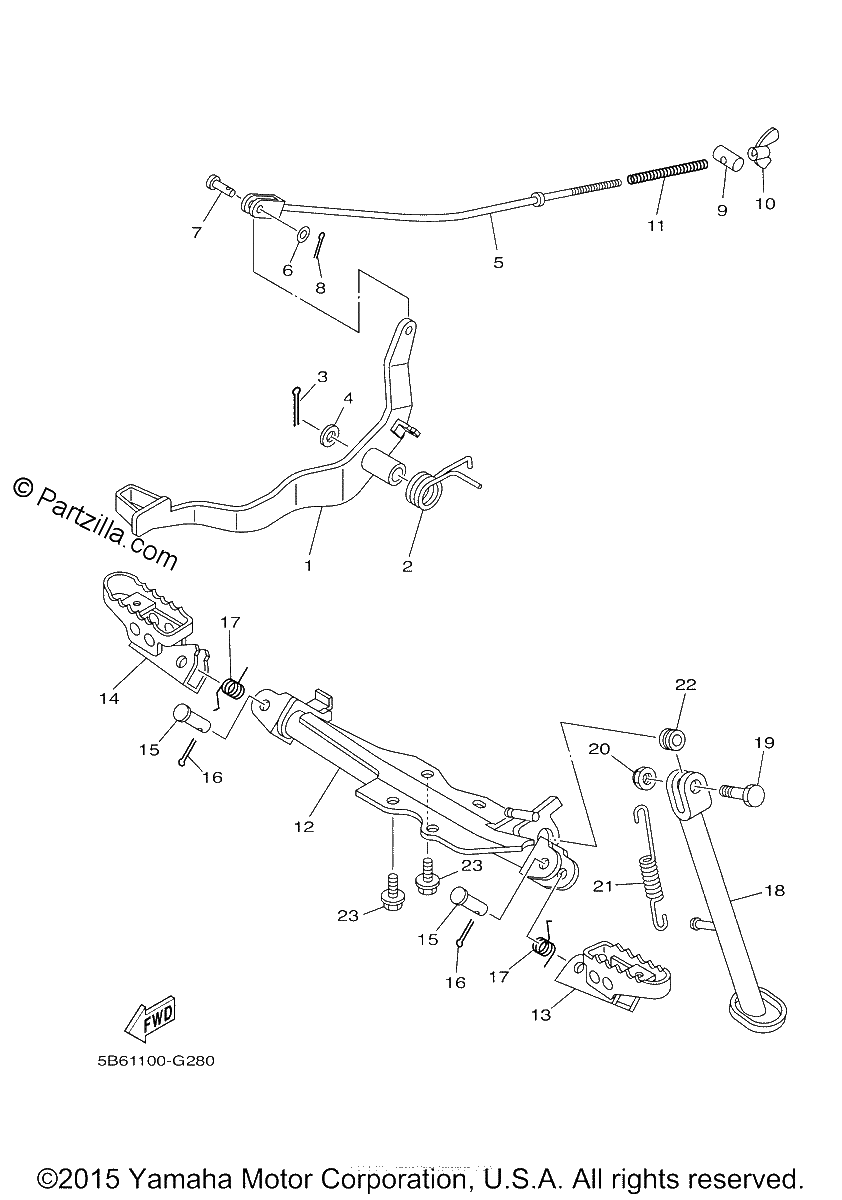

Diagrama de STAND FOOTREST

Repuestos

#1
5B6-27211-00-00
PEDAL, BRAKE
$81.65¢40 825
1
#2
90508-40016-00
SPRING, TORSION
$17.49¢8 744
1
#3
91490-20025-00
PIN,COTTER (replaces 91402-20020-00)
$1.56¢781
1
#4
92907-12600-00
WASHER (replaces 92902-12600-00)
$1.46¢731
1
#5
5B6-27231-00-00
ROD, BRAKE
$21.94¢10 969
1
#6
92990-06200-00
WASHER, PLAIN
$0.96¢481
1
#7
90240-06076-00
PIN, CLEVIS
$7.34¢3 669
1
#8
91490-20015-00
PIN. COTTER
$2.20¢1 100
1
#9
90249-12008-00
PIN
$7.34¢3 669
1
#10
90175-06013-00
NUT, WING
$4.88¢2 438
1
#11
90501-10245-00
SPRING, COMPRESSION
$7.34¢3 669
1
#12
5B6-27411-00-00
FOOTREST 1
$250.99¢125 494
1
#13
3LD-27411-20-00
FOOTREST 1
$54.24¢27 119
1
#14
3LD-27421-20-00
FOOTREST 2
$67.54¢33 769
1
#15
90240-10002-00
Pin, Clevis
$6.03¢3 013
1
#16
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#17
90508-20007-00
SPRING, TORSION
$3.89¢1 944
1
#18
5B6-27311-00-00
STAND, SIDE
$91.85¢45 925
1
#19
90101-10003-00
bolt
$8.16¢4 081
1
#20
90185-10037-00
NUT,SELF-LOCKING
$7.94¢3 969
1
#21
90506-26270-00
SPRING, TENSION
$15.55¢7 775
1
#22
90387-10003-00
Collar
$25.39¢12 694
1
#23
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
