STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

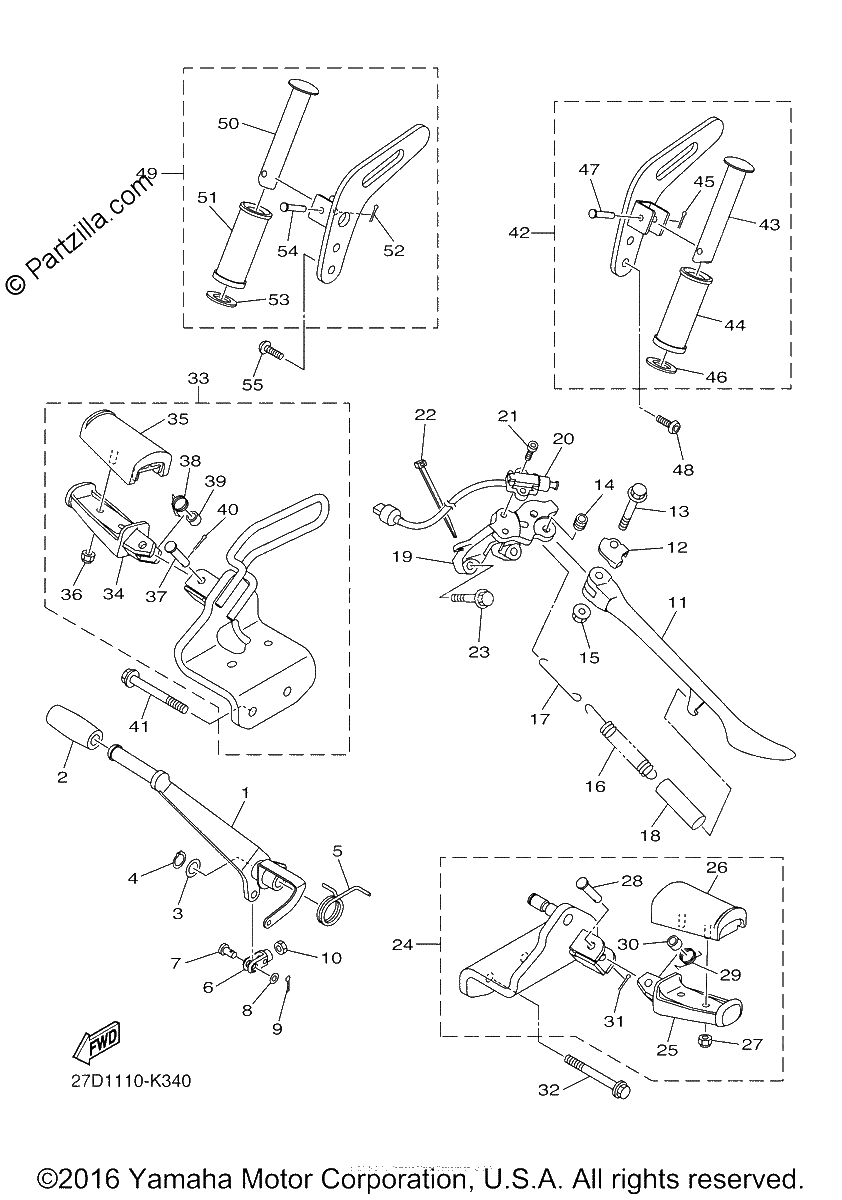

Diagrama de STAND FOOTREST

Repuestos

#0
27D-27410-00-00
FRONT FOOTREST ASSY (LEFT) | FOR U49
$232.40¢116 202
1
#1
27D-27211-00-00
PEDAL, BRAKE
$139.01¢69 506
1
#2
5VN-18113-00-00
COVER, SHIFT PEDAL
$14.34¢7 170
1
#3
90201-124E4-00
WASHER, PLATE
$7.04¢3 519
1
#4
99009-12400-00
CIRCLIP
$3.37¢1 685
1
#5
27D-27216-00-00
SPRING, RETURN
$14.11¢7 055
1
#6
4FM-27222-00-00
JOINT
$23.34¢11 673
1
#7
90240-08124-00
PIN, CLEVIS
$6.22¢3 111
1
#8
90201-08083-00
WASHER, PLATE
$6.88¢3 439
1
#9
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#10
95317-08700-00
NUT
$7.72¢3 858
1
#11
5S7-27311-00-00
STAND, SIDE
$148.69¢74 348
1
#12
5S7-27322-00-00
WASHER
$15.12¢7 561
1
#13
90105-10315-00
BOLT, FLANGE
$8.75¢4 376
1
#14
90387-1003G-00
COLLAR
$20.17¢10 085
1
#15
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#16
90506-35007-00
SPRING, TENSION
$14.00¢6 998
1
#17
3D8-27315-00-00
LINK, SIDE STAND
$7.38¢3 691
1
#18
90445-22327-00
HOSE
$6.97¢3 484
1
#19
3D8-27321-00-00
BRACKET, SIDE STAND
$250.00¢124 999
1
#20
27D-82566-30-00
SWITCH, SIDE STAND
$106.72¢53 360
1
#21
90110-05025-00
BOLT, HEXAGON SOCKET
$2.61¢1 305
1
#22
1UA-82591-00-00
BAND
$4.52¢2 260
1
#23
90105-10158-00
BOLT, FLANGE
$8.39¢4 198
1
#24
27D-27410-10-00
FRONT FOOTREST ASSY (LEFT) | FOR CALIFORNIA
$329.38¢164 692
1
#25
1NH-27451-00-00
FOOTREST
$36.93¢18 463
1
#26
4VR-27413-00-00
COVER, FOOTREST
$39.00¢19 498
1
#27
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#28
91701-08038-00
PIN
$4.28¢2 139
1
#29
90508-18696-00
SPRING, TORSION
$8.03¢4 013
1
#30
90387-087K5-00
COLLAR
$8.16¢4 082
1
#31
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#32
95024-10070-00
BOLT, FLG.(SMALL HEA
$7.82¢3 910
1
#33
27D-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$281.73¢140 864
1
#34
1NH-27461-00-00
FOOTREST
$33.65¢16 825
1
#35
4VR-27413-00-00
COVER, FOOTREST
$39.00¢19 498
1
#36
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#37
91701-08038-00
PIN
$4.28¢2 139
1
#38
90508-18696-00
SPRING, TORSION
$8.03¢4 013
1
#39
90201-20279-00
WASHER, PLATE
$7.58¢3 789
1
#39
90387-087K5-00
COLLAR
$8.16¢4 082
1
#40
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#41
95024-10080-00
BOLT, FLG.(SMALL HEA
$6.69¢3 347
1
#42
27D-27430-00-00
REAR FOOTREST ASSY 1
$140.09¢70 047
1
#43
2GV-27431-00-00
FOOTREST, REAR 1
$30.87¢15 433
1
#44
5S7-27433-00-00
COVER, REAR FOOTREST
$17.39¢8 694
1
#45
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#46
90201-20279-00
WASHER, PLATE
$7.58¢3 789
1
#47
91701-06032-00
PIN
$7.51¢3 755
1
#48
90111-08045-00
BOLT,HEX. SOCKET BUT
$6.87¢3 433
1
#49
27D-27440-00-00
REAR FOOTREST ASSY 2
$80.10¢40 049
1
#50
2GV-27431-00-00
FOOTREST, REAR 1
$30.87¢15 433
1
#51
5S7-27433-00-00
COVER, REAR FOOTREST
$17.39¢8 694
1
#52
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#54
91701-06032-00
PIN
$7.51¢3 755
1
#55
90111-08045-00
BOLT,HEX. SOCKET BUT
$6.87¢3 433
1
