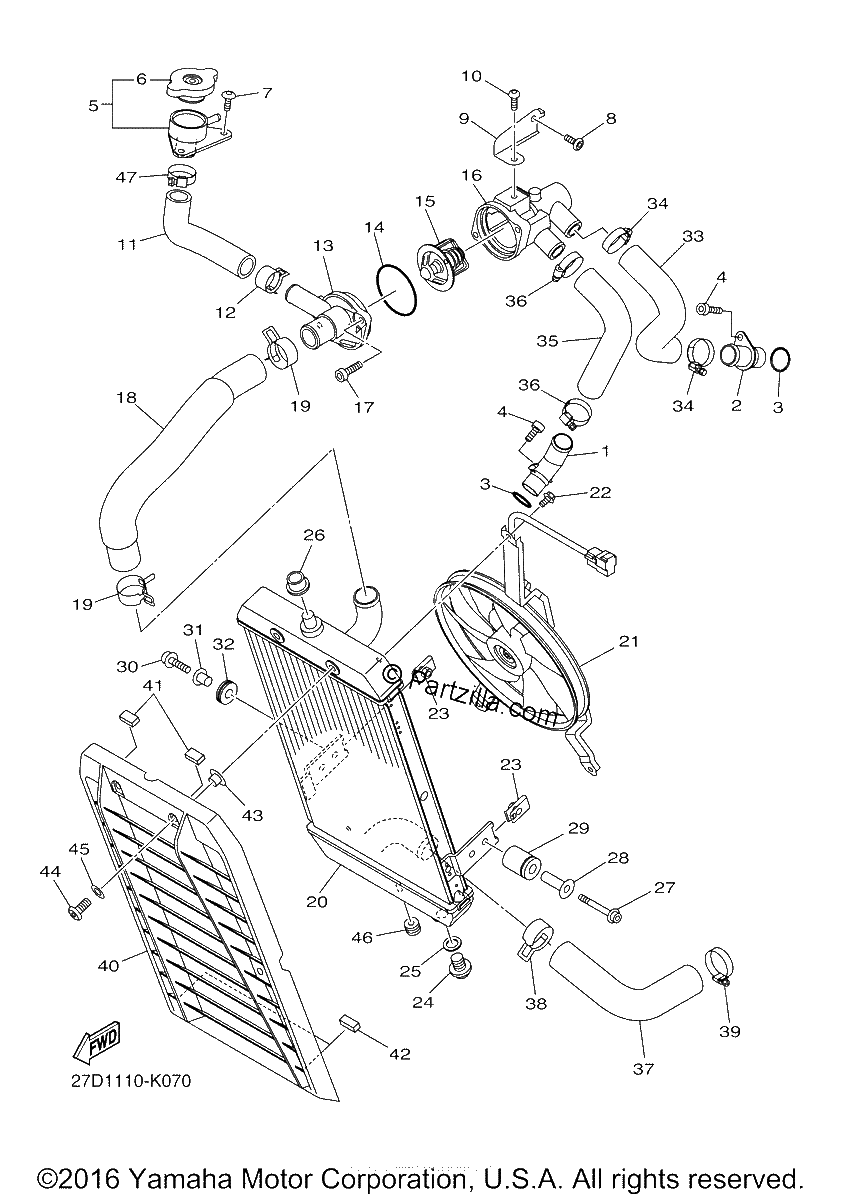

RADIATOR HOSE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PIPE 1
$45.72¢22 862
#2
PIPE 2
$37.38¢18 688
#3
O-RING
$5.31¢2 657
#4
bolt
$5.20¢2 599
#5
CONDUCTION ASSY
$131.51¢65 757
#6
CAP, RADIATOR
$62.33¢31 165
#7
BOLT, HEX. SOCKET BUTTON
$7.07¢3 536
#8
SCREW,SPEC'L SHAPE
$4.67¢2 335
#9
BRACKET 1
$6.81¢3 404
#10
BOLT, BUTTON HEAD
$2.68¢1 340
#11
HOSE 6
$10.41¢5 204
#12
CLIP
$3.93¢1 967
#13
COVER, THERMOSTAT
$35.95¢17 975
#14
O-RING
$6.43¢3 214
#15
THERMOSTAT ASSY
$37.40¢18 699
#16
HOUSING, THERMOSTAT
$45.32¢22 661
#17
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#18
HOSE 4
$31.29¢15 646
#19
CLIP
$4.66¢2 329
#20
RADIATOR COMP
$751.16¢375 578
#21
BLOWER ASSY
$664.69¢332 344
#22
BOLT, BLOWER HOLDING
$7.74¢3 870
#23
PLATE
$4.43¢2 214
#24
PLUG, DRAIN COCK
$25.74¢12 869
#25
GASKET
$8.26¢4 129
#26
GROMMET
$2.13¢1 064
#27
BOLT, HEXAGON SOCKET HEAD
$5.98¢2 990
#28
COLLAR
$4.76¢2 380
#29
DAMPER, RADIATOR
$7.50¢3 749
#30
BOLT, HEXAGON SOCKET HEAD
$5.95¢2 973
#31
COLLAR
$8.49¢4 244
#32
GROMMET, ANODE
$4.97¢2 484
#33
HOSE 1
$11.71¢5 853
#34
HOSE CLAMP ASSY
$13.74¢6 871
#35
HOSE 3
$9.44¢4 721
#36
HOSE CLAMP ASSY
$13.74¢6 871
#37
HOSE 5
$21.98¢10 988
#38
CLIP
$4.66¢2 329
#39
HOSE CLAMP ASSY
$5.76¢2 881
#40
COVER, RADIATOR
$50.94¢25 472
#41
DAMPER 1
$1.93¢966
#42
DAMPER, RADIATOR
$2.44¢1 219
#43
COLLAR
$6.96¢3 479
#44
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#45
WASHER, PLATE
$4.66¢2 329
#46
GROMMET
$2.33¢1 167
#47
HOSE CLAMP ASSY
$13.74¢6 871
