CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

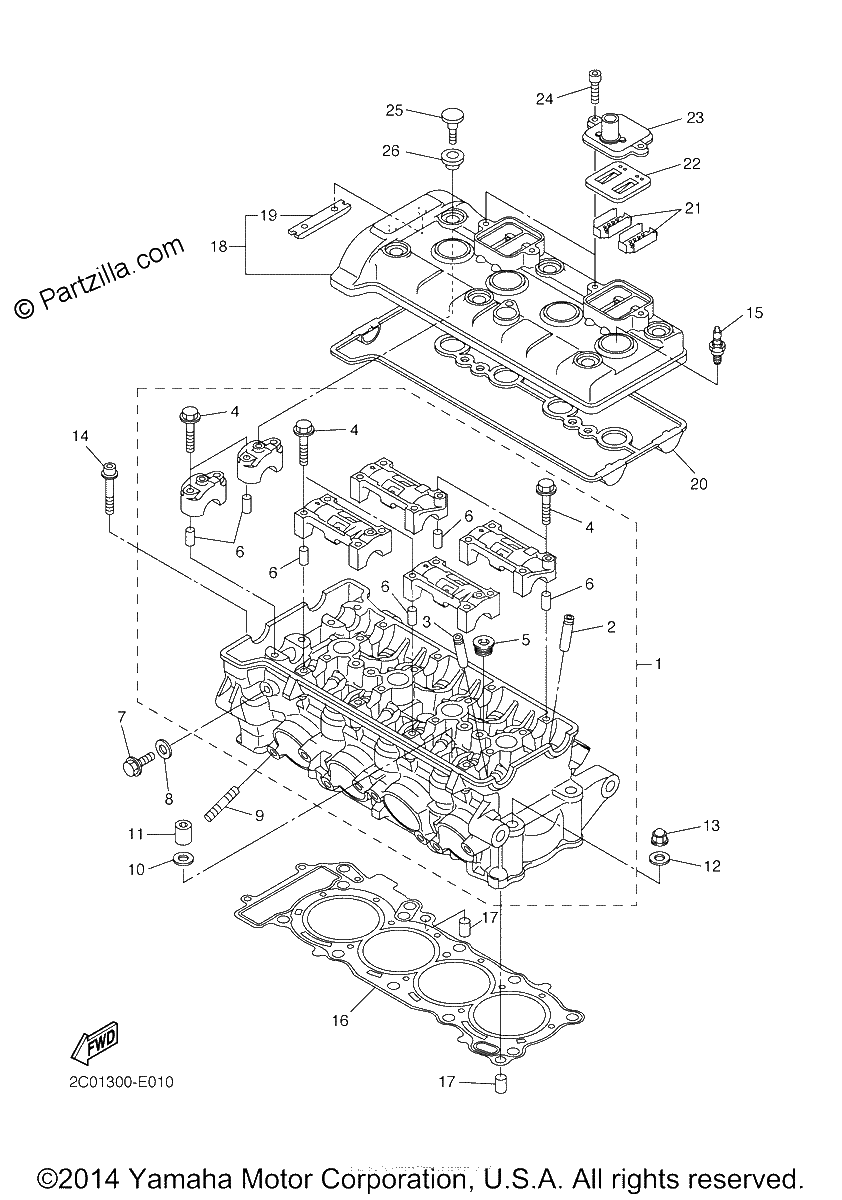

Diagrama de CYLINDER

Repuestos

#1
2C0-11101-01-00
CYLINDER HEAD ASSY
$2317.15¢1 158 573
1
#2
2C0-11133-11-00
GUIDE, VALVE 1
$63.24¢31 619
1
#3
2C0-11134-11-00
GUIDE, VALVE 2
$66.75¢33 373
1
#4
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#5
90340-18002-00
PLUG, STRAIGHT SCREW
$10.29¢5 146
1
#6
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#7
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#8
90430-08119-00
GASKET
$6.36¢3 180
1
#9
95612-08625-00
BOLT, STUD
$5.13¢2 565
1
#10
90201-10033-00
WASHER, PLATE
$6.87¢3 433
1
#11
90179-10006-00
NUT
$8.35¢4 174
1
#12
90201-10033-00
WASHER, PLATE
$6.87¢3 433
1
#13
90176-10075-00
NUT, CROWN
$7.19¢3 594
1
#14
90110-06094-00
BOLT, HEXAGON SOCKET HEAD
$4.97¢2 484
1
#15
CR1-0EK00-00-00
CR10EK NGK SPLUG 1
$13.63¢6 814
1
#16
2C0-11181-01-00
GASKET, CYLINDER HEAD 1
$103.51¢51 756
1
#17
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#18
2C0-11191-00-00
COVER, CYLINDER HEAD 1
$325.25¢162 627
1
#19
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#20
2C0-11193-00-00
GASKET, HEAD COVER 1
$59.50¢29 751
1
#21
5VY-1482K-00-00
PLATE
$4.28¢2 139
1
#22
5SL-14890-00-00
REED VALVE ASSY
$94.82¢47 409
1
#23
5VY-14899-01-00
CAP, CASE
$35.44¢17 722
1
#24
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#25
90109-066F0-00
BOLT
$6.99¢3 496
1
#26
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
