CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

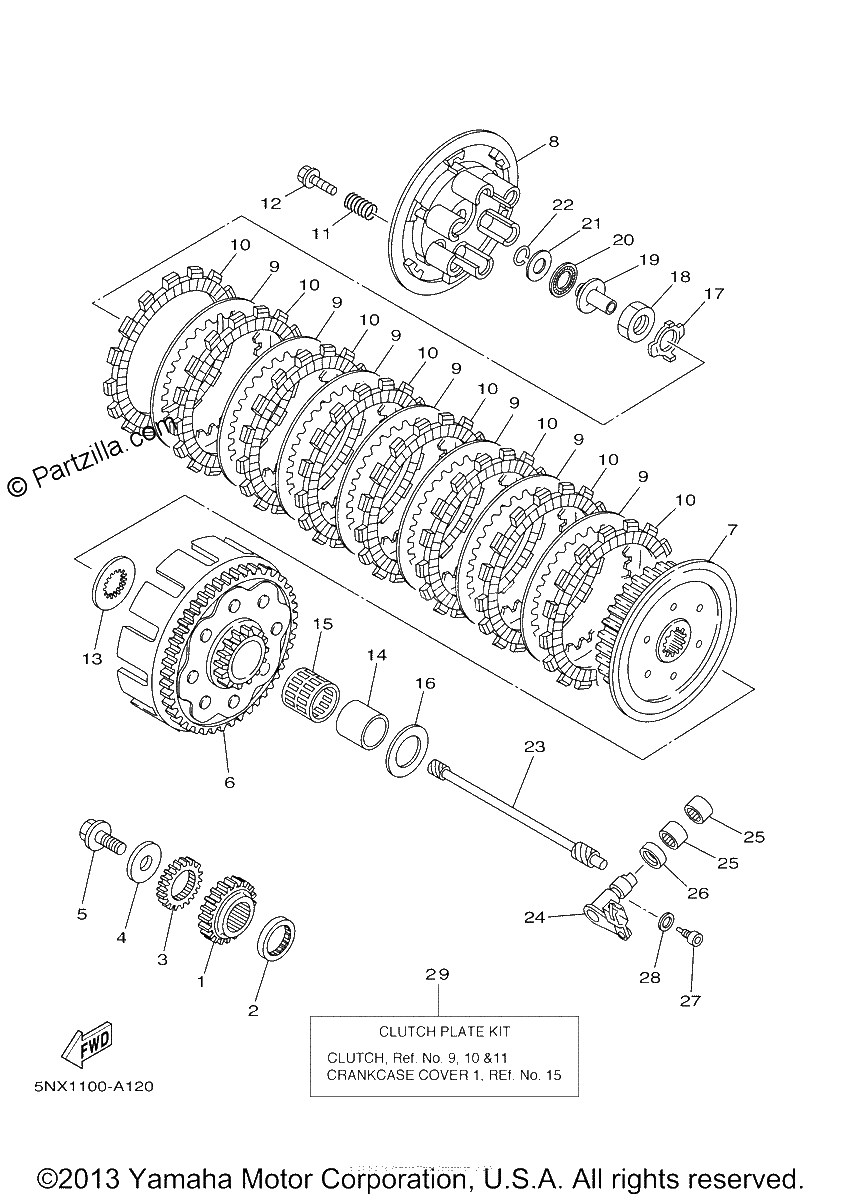

Diagrama de CLUTCH

Repuestos

#1
5DJ-16111-00-00
GEAR, PRIMARY DRIV
$61.39¢30 694
1
#2
5MW-16113-00-00
WASHER, THRUST 1
$25.01¢12 506
1
#3
5CU-11956-00-00
GEAR, GOVERNOR DRIVE
$44.24¢22 120
1
#4
90201-10321-00
WASHER, PLATE
$5.93¢2 967
1
#5
90105-10445-00
BOLT, FLANGE
$10.60¢5 302
1
#6
5DJ-16150-00-00
PRIMARY DRIVEN GEAR
$357.59¢178 796
1
#7
5NX-16371-00-00
BOSS, CLUTCH
$165.98¢82 990
1
#8
5JG-16351-00-00
PLATE, PRESSURE 1
$86.12¢43 062
1
#9
4X7-16325-00-00
PLATE,CLUTCH 2
$17.19¢8 596
1
#10
3XK-16321-00-00
PLATE,FRICTION
$25.07¢12 535
1
#11
90501-237L0-00
SPRING, COMPRESSIO
$5.78¢2 892
1
#12
90159-06010-00
SCREW, WITH WASHER
$7.18¢3 588
1
#13
5CU-16154-00-00
PLATE, THRUST 1
$28.98¢14 490
1
#14
2VM-16181-00-00
SPACER 1
$44.37¢22 184
1
#15
93310-230T7-00
BEARING,CYL.#10
$37.40¢18 699
1
#16
2K7-16154-00-00
PLATE,THRUST 1
$19.86¢9 930
1
#17
90215-20231-00
WASHER,LOCK
$3.07¢1 535
1
#18
90170-20255-00
NUT,HEXAGON
$9.63¢4 813
1
#19
5BE-16356-00-00
ROD, PUSH 1 (replaces 4XL-16356-00-00)
$118.62¢59 311
1
#20
93340-21505-00
BEARING
$18.26¢9 131
1
#21
90201-125L6-00
WASHER, PLATE
$6.88¢3 439
1
#22
93440-10085-00
CIRCLIP
$6.75¢3 375
1
#23
1P8-16357-00-00
ROD, PUSH 2
$35.81¢17 906
1
#24
5CU-16380-10-00
PUSH LEVER ASSY
$105.29¢52 647
1
#25
93315-11206-00
BEARING
$34.79¢17 394
1
#26
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#27
90109-05009-00
bolt
$3.86¢1 932
1
#28
90430-05242-00
Gasket
$5.65¢2 823
1
#29
1P8-W001G-00-00
Clutch Plate Kit
$155.24¢77 619
1
