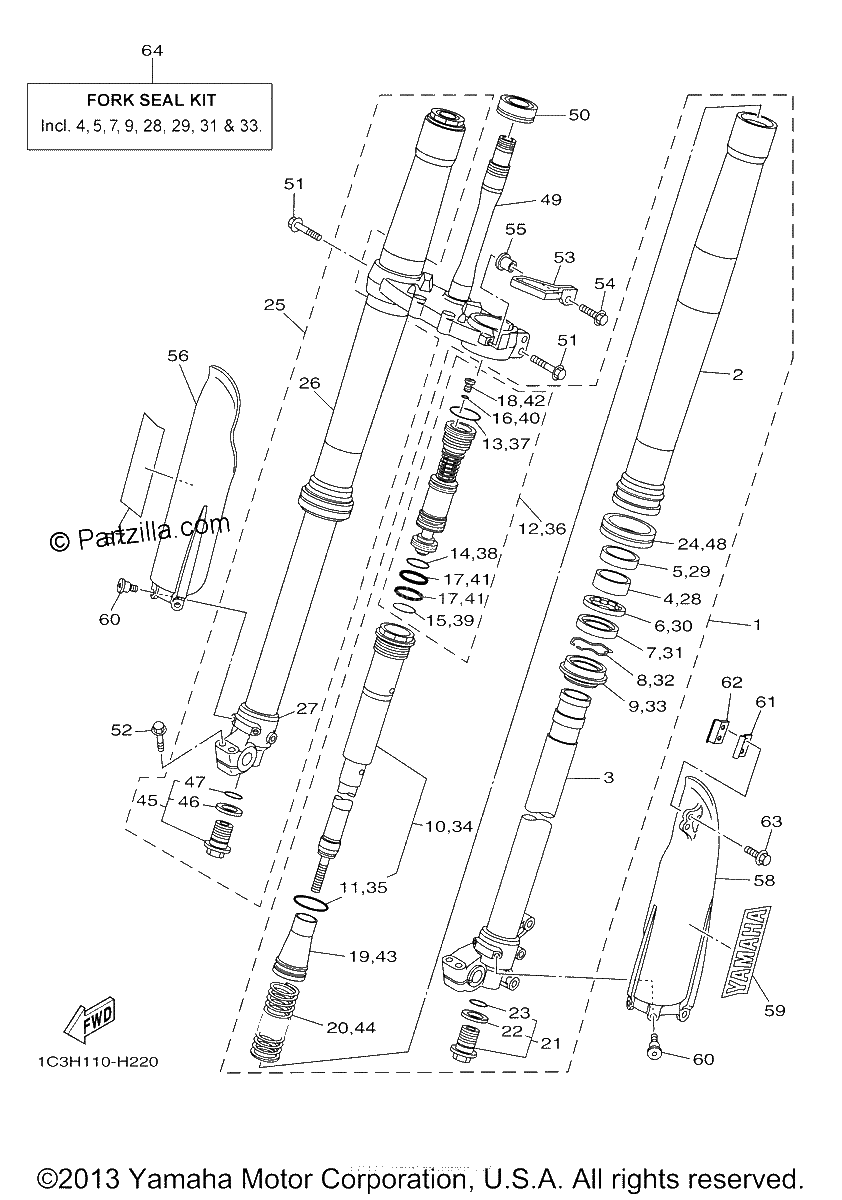

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1834.24¢917 119
#2
TUBE, OUTER (R.H)
$760.14¢380 069
#3
INNER TUBE COMP. 2
$470.92¢235 462
#4
PISTON, FRONT FORK
$22.67¢11 333
#5
METAL, SLIDE 1
$23.02¢11 511
#6
WASHER, OIL SEAL
$13.39¢6 693
#7
OIL SEAL | INCL. IN FORK SEAL KIT
$28.37¢14 185
#8
RING, SNAP
$7.04¢3 519
#9
SEAL, DUST
$21.11¢10 557
#10
CYLINDER COMP., FRONT FORK
$756.69¢378 344
#11
O-RING
$3.51¢1 754
#12
VALVE COMP.
$526.06¢263 028
#13
O-RING
$3.00¢1 501
#14
O-RING
$7.04¢3 519
#15
O-RING
$6.51¢3 254
#16
O-RING
$3.00¢1 501
#17
GASKET
$8.14¢4 071
#18
AIR VALVE COMP.
$21.98¢10 988
#19
SEAT, SPRING UPPER
$84.84¢42 418
#20
SPRING, FRONT FORK (K=4.3N/
No Disponible
#21
BOLT, CAP
$75.81¢37 904
#22
GASKET
$10.43¢5 215
#23
GASKET
$4.25¢2 128
#24
PROTECTER GUIDE COMP., 1
$45.40¢22 701
#25
FRONT FORK ASSY (R.H)
$1834.24¢917 119
#26
TUBE, OUTER (R.H)
$760.14¢380 069
#27
INNER TUBE COMP. 1
$540.78¢270 388
#28
PISTON, FRONT FORK
$22.67¢11 333
#29
METAL, SLIDE 1
$23.02¢11 511
#30
WASHER, OIL SEAL
$13.39¢6 693
#31
OIL SEAL | INCL. IN FORK SEAL KIT
$28.37¢14 185
#32
RING, SNAP
$7.04¢3 519
#33
SEAL, DUST
$21.11¢10 557
#34
CYLINDER COMP., FRONT FORK
$756.69¢378 344
#35
O-RING
$3.51¢1 754
#36
VALVE COMP.
$526.06¢263 028
#37
O-RING
$3.00¢1 501
#38
O-RING
$7.04¢3 519
#39
O-RING
$6.51¢3 254
#39
GUIDE, CABLE
$15.44¢7 722
#40
O-RING
$3.00¢1 501
#41
GASKET
$8.14¢4 071
#42
AIR VALVE COMP.
$21.98¢10 988
#43
SEAT, SPRING UPPER
$84.84¢42 418
#44
SPRING, FRONT FORK (K=4.3N/
No Disponible
#45
BOLT, CAP
$75.81¢37 904
#46
GASKET
$10.43¢5 215
#47
GASKET
$4.25¢2 128
#48
PROTECTER GUIDE COMP., 1
$45.40¢22 701
#49
UNDER BRACKET COMP.
$656.64¢328 319
#50
BEARING
$55.67¢27 836
#51
BOLT, FLANGE
$6.43¢3 214
#52
BOLT, FLANGE
$6.32¢3 162
#54
BOLT, FLANGE
$6.75¢3 375
#55
Collar
$1.45¢724
#56
PROTECTOR 2
$19.17¢9 585
#57
EMBLEM, YAMAHA
$9.04¢4 520
#58
PROTECTOR 1
$18.85¢9 424
#59
EMBLEM, YAMAHA
$9.04¢4 520
#60
BOLT
$3.61¢1 805
#61
CLAMP
$18.14¢9 068
#62
CLAMP
$24.83¢12 414
#63
BOLT, FLANGE
$4.45¢2 225
#64
FORK SEAL KIT
$69.84¢34 920
