STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

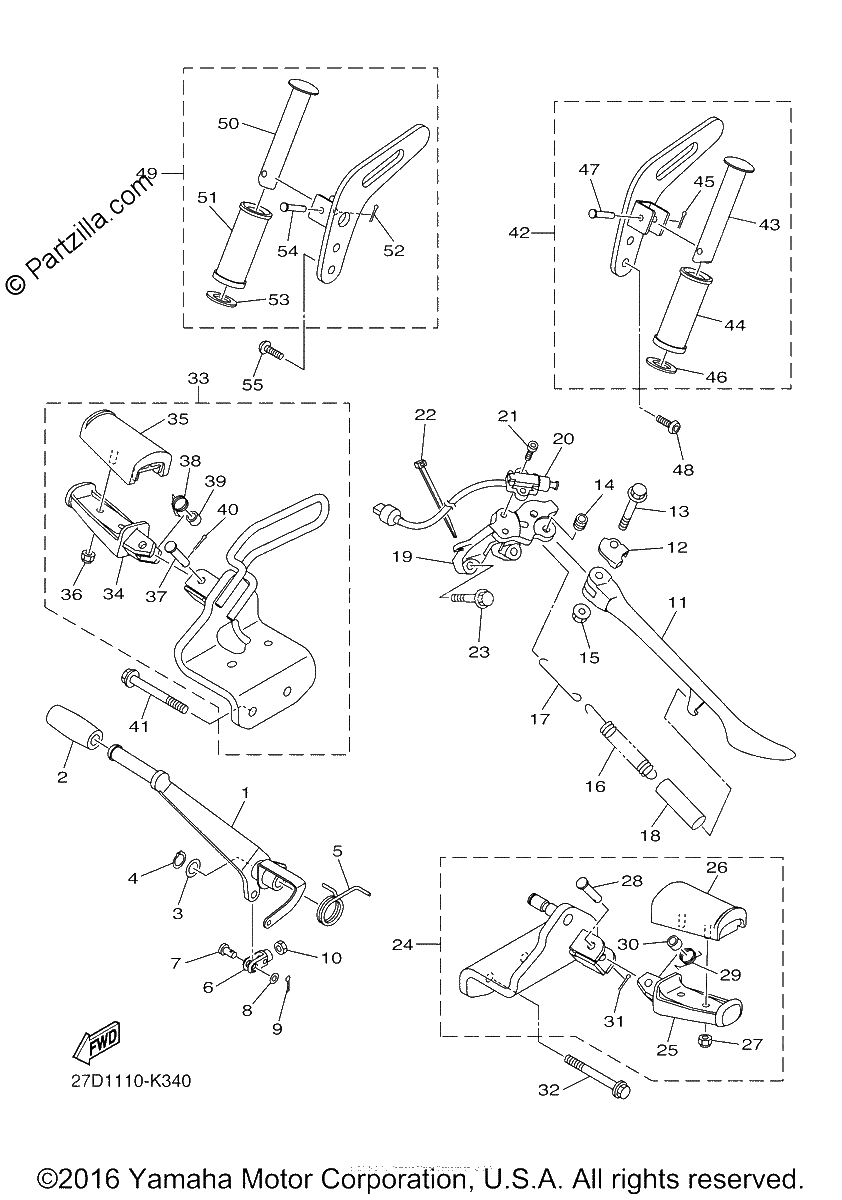

Diagrama de STAND FOOTREST

Repuestos

#0
27D-27410-00-00
FRONT FOOTREST ASSY (LEFT) | FOR U49
$252.61¢126 306
1
#1
27D-27211-00-00
PEDAL, BRAKE
$151.10¢75 550
1
#2
5VN-18113-00-00
COVER, SHIFT PEDAL
$15.59¢7 794
1
#3
90201-124E4-00
WASHER, PLATE
$7.65¢3 825
1
#4
99009-12400-00
CIRCLIP
$3.66¢1 831
1
#5
27D-27216-00-00
SPRING, RETURN
$15.34¢7 669
1
#6
4FM-27222-00-00
JOINT
$25.38¢12 688
1
#7
90240-08124-00
PIN, CLEVIS
$6.76¢3 381
1
#8
90201-08083-00
WASHER, PLATE
$7.48¢3 738
1
#9
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#10
95317-08700-00
NUT
$8.39¢4 194
1
#11
5S7-27311-00-00
STAND, SIDE
$161.63¢80 813
1
#12
5S7-27322-00-00
WASHER
$16.44¢8 219
1
#13
90105-10315-00
BOLT, FLANGE
$9.51¢4 756
1
#14
90387-1003G-00
COLLAR
$21.92¢10 962
1
#15
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
#16
90506-35007-00
SPRING, TENSION
$15.21¢7 606
1
#17
3D8-27315-00-00
LINK, SIDE STAND
$8.03¢4 013
1
#18
90445-22327-00
HOSE
$7.57¢3 787
1
#19
3D8-27321-00-00
BRACKET, SIDE STAND
$271.74¢135 869
1
#20
27D-82566-30-00
SWITCH, SIDE STAND
$116.00¢58 000
1
#21
90110-05025-00
BOLT, HEXAGON SOCKET
$2.84¢1 419
1
#22
1UA-82591-00-00
BAND
$4.91¢2 456
1
#23
90105-10158-00
BOLT, FLANGE
$9.13¢4 563
1
#24
27D-27410-10-00
FRONT FOOTREST ASSY (LEFT) | FOR CALIFORNIA
$358.03¢179 013
1
#25
1NH-27451-00-00
FOOTREST
$40.14¢20 069
1
#26
4VR-27413-00-00
COVER, FOOTREST
$42.39¢21 194
1
#27
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#28
91701-08038-00
PIN
$4.65¢2 325
1
#29
90508-18696-00
SPRING, TORSION
$8.73¢4 363
1
#30
90387-087K5-00
COLLAR
$8.88¢4 438
1
#31
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#32
95024-10070-00
BOLT, FLG.(SMALL HEA
$8.50¢4 250
1
#33
27D-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$306.22¢153 112
1
#34
1NH-27461-00-00
FOOTREST
$36.58¢18 288
1
#35
4VR-27413-00-00
COVER, FOOTREST
$42.39¢21 194
1
#36
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#37
91701-08038-00
PIN
$4.65¢2 325
1
#38
90508-18696-00
SPRING, TORSION
$8.73¢4 363
1
#39
90201-20279-00
WASHER, PLATE
$8.24¢4 119
1
#39
90387-087K5-00
COLLAR
$8.88¢4 438
1
#40
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#41
95024-10080-00
BOLT, FLG.(SMALL HEA
$7.28¢3 638
1
#42
27D-27430-00-00
REAR FOOTREST ASSY 1
$152.27¢76 137
1
#43
2GV-27431-00-00
FOOTREST, REAR 1
$33.55¢16 775
1
#44
5S7-27433-00-00
COVER, REAR FOOTREST
$18.90¢9 450
1
#45
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#46
90201-20279-00
WASHER, PLATE
$8.24¢4 119
1
#47
91701-06032-00
PIN
$8.16¢4 081
1
#48
90111-08045-00
BOLT,HEX. SOCKET BUT
$7.46¢3 731
1
#49
27D-27440-00-00
REAR FOOTREST ASSY 2
$87.06¢43 531
1
#50
2GV-27431-00-00
FOOTREST, REAR 1
$33.55¢16 775
1
#51
5S7-27433-00-00
COVER, REAR FOOTREST
$18.90¢9 450
1
#52
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#54
91701-06032-00
PIN
$8.16¢4 081
1
#55
90111-08045-00
BOLT,HEX. SOCKET BUT
$7.46¢3 731
1
