DRIVE SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

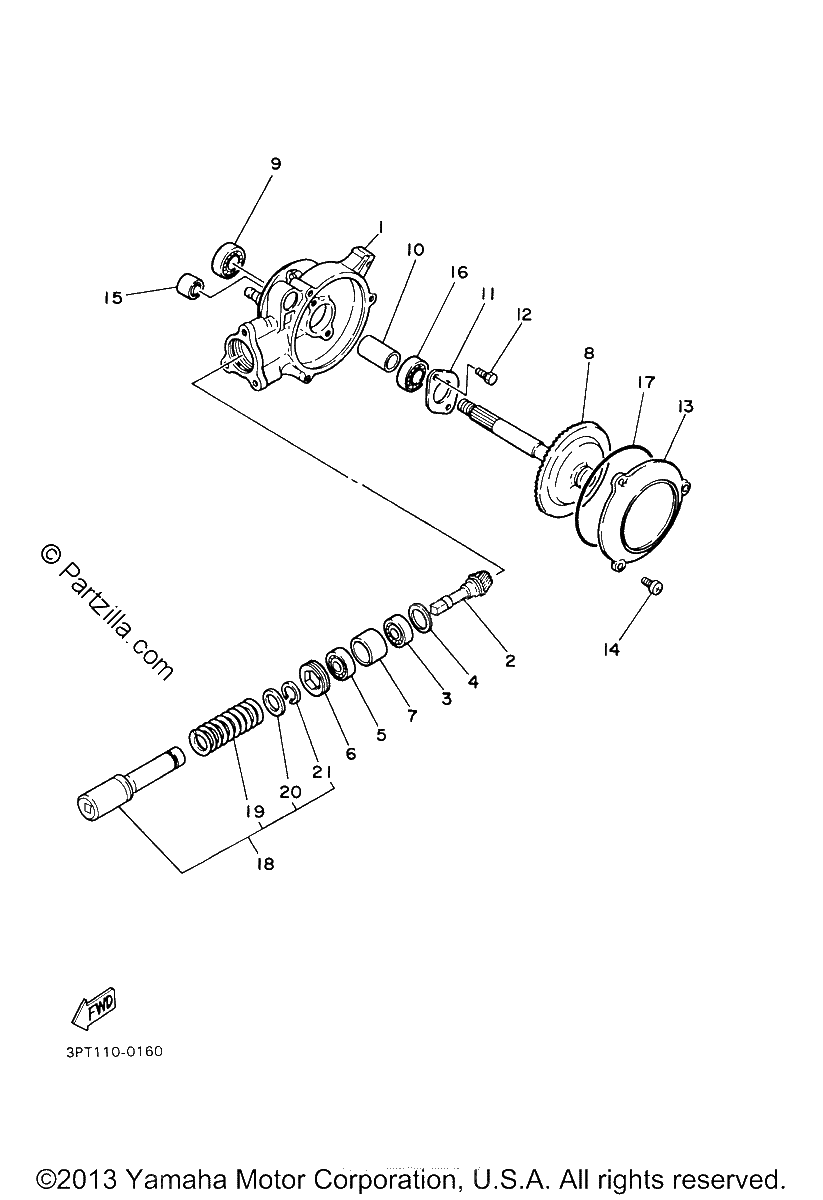

Diagrama de DRIVE SHAFT

Repuestos

#1
4J2-46151-01-00
HOUSING, DRIVE SHAFT
$105.10¢52 549
1
#2
59M-46121-00-00
GEAR, DRIVE PINION
$140.36¢70 179
1
#3
93306-20119-00
BEARING
$32.10¢16 048
1
#4
3L5-46127-00-00
SHIM, DRIVE PINION
$7.23¢3 617
1
#5
93306-20119-00
BEARING
$32.10¢16 048
1
#6
90149-35133-00
SCREW
$12.28¢6 141
1
#7
90560-25185-00
SPACER
$6.88¢3 439
1
#8
4J2-46110-01-00
RING GEAR COMP.
$262.75¢131 376
1
#9
93306-20203-00
BEARING
$25.44¢12 719
1
#10
90560-15315-00
SPACER
$19.52¢9 758
1
#11
3L5-46114-00-00
PLATE, COVER
$8.28¢4 140
1
#12
97017-06016-00
BOLT
$6.76¢3 381
1
#13
4J2-46154-02-00
COVER, HOUSING
$52.53¢26 266
1
#14
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#15
164-22216-00-00
BUSH, REAR SHOCK ABSORBER
$13.34¢6 670
1
#16
93306-20205-00
BEARING | KOYO
$36.77¢18 383
1
#17
93211-066A9-00
O-RING
$11.67¢5 836
1
#18
3L7-46171-00-00
SHAFT DRIVE ASSY
$189.37¢94 685
1
#19
90501-60556-00
SPRING, COMPRESSION
$11.87¢5 934
1
#20
15L-18473-00-00
RETAINER, SPRING
$19.69¢9 844
1
#21
93440-17138-00
CIRCLIP
$7.81¢3 904
1
