WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

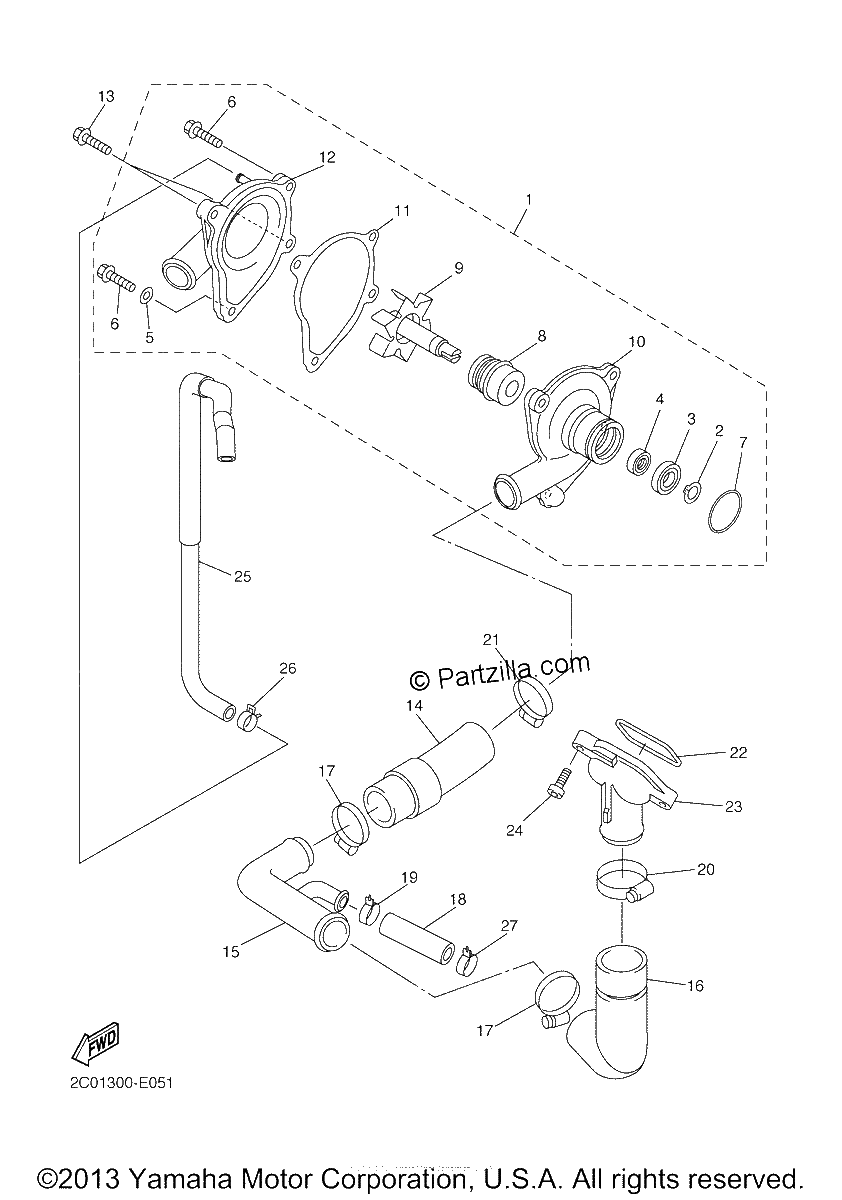

Diagrama de WATER PUMP

Repuestos

#1
2C0-12420-00-00
WATER PUMP ASSY
$268.85¢134 424
1
#2
99009-10400-00
CIRCLIP
$4.28¢2 139
1
#3
93306-00004-00
BEARING
$35.85¢17 923
1
#4
93101-10090-00
OIL SEAL
$6.75¢3 375
1
#5
90430-06014-00
GASKET
$7.59¢3 795
1
#6
95024-06025-00
Bolt, Flange
$2.82¢1 409
1
#7
93210-33133-00
O-RING
$3.30¢1 650
1
#8
2C0-12438-00-00
SEAL, MECHANICAL
$47.84¢23 920
1
#9
2C0-12450-00-00
IMPELLER SHAFT ASSY
$55.67¢27 836
1
#10
2C0-12421-00-00
HOUSING, WATER PUMP
$89.60¢44 798
1
#11
2C0-12428-01-00
GASKET, HOUSING COVER 2
$11.17¢5 583
1
#12
2C0-W1242-00-00
COVER, HOUSING
$76.70¢38 353
1
#13
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#14
2C0-12576-00-00
HOSE 1
$18.24¢9 119
1
#15
2C0-12581-00-00
JOINT, HOSE 1
$70.46¢35 230
1
#16
2C0-12577-00-00
HOSE 2
$19.45¢9 723
1
#17
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#18
2C0-12588-00-00
HOSE 5
$7.04¢3 519
1
#19
90467-200A0-00
CLIP
$8.69¢4 347
1
#20
90450-38003-00
HOSE CLAMP ASSY
$16.33¢8 165
1
#21
90450-32003-00
HOSE CLAMP ASSY
$15.50¢7 751
1
#22
93210-46001-00
O-RING
$6.83¢3 415
1
#23
5EB-12469-00-00
JOINT 1
$69.60¢34 799
1
#24
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#25
2C0-1243A-00-00
HOSE 1
$32.06¢16 031
1
#26
90467-10135-00
CLIP
$7.58¢3 789
1
#27
90467-200A0-00
CLIP
$8.69¢4 347
1
