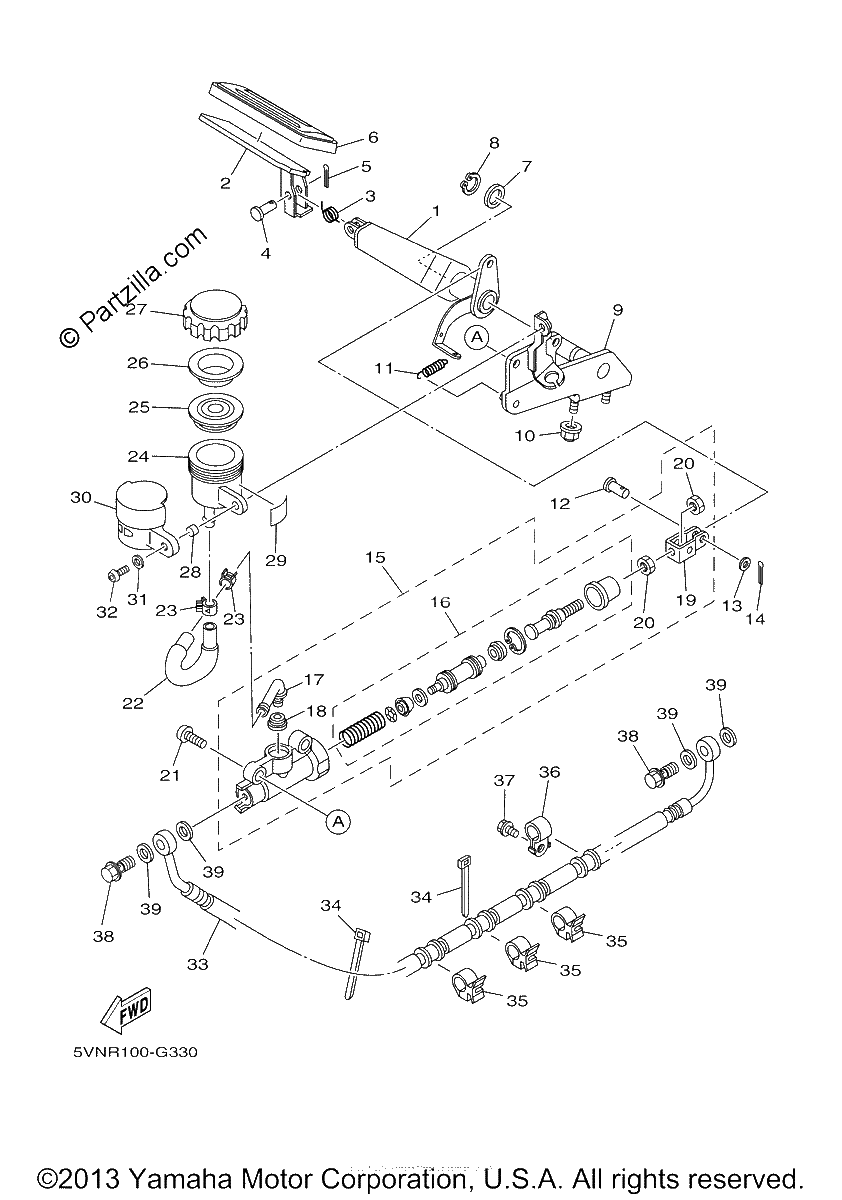

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$76.55¢38 275
#2
PEDAL, BRAKE
$34.67¢17 338
#3
SPRING, TORSION
$6.57¢3 287
#4
PIN
$2.16¢1 081
#5
PIN. COTTER
$2.20¢1 100
#6
CAP
$33.09¢16 544
#7
WASHER, PLATE
$3.16¢1 581
#8
CIRCLIP (55X)
$6.25¢3 125
#9
BRACKET SUB ASSY (LEFT)
$188.71¢94 356
#10
NUT, SELF-LOCKING
$8.45¢4 225
#11
SPRING, TENSION
$6.97¢3 488
#12
PIN, CLEVIS
$6.25¢3 125
#13
WASHER, PLATE
$7.48¢3 738
#14
PIN, COTTER
$7.33¢3 663
#15
REAR MASTER CYLINDER ASSY.
$282.26¢141 131
#16
CYLINDER KIT, MASTER
$100.86¢50 431
#17
JOINT
$19.23¢9 613
#18
O-RING
$11.39¢5 694
#19
JOINT
$32.13¢16 063
#20
NUT
$7.49¢3 744
#21
BOLT, BUTTON HEAD
$6.99¢3 494
#22
HOSE, RESERVOIR
$21.74¢10 869
#23
CLIP
$8.97¢4 488
#24
TANK, RESERVOIR
$49.16¢24 581
#25
DIAPHRAGM, RESERVOIR
$24.86¢12 431
#26
BUSH, DIAPHRAGM
$30.38¢15 188
#27
CAP, RESERVOIR
$51.06¢25 531
#28
COLLAR
$7.50¢3 750
#29
SEAL
$7.72¢3 863
#30
COVER, RESERVOIR TANK
$92.86¢46 431
#31
WASHER, PLATE
$4.16¢2 081
#32
BOLT, BUTTON HEAD
$8.24¢4 119
#33
HOSE, BRAKE 4
$137.25¢68 625
#34
BAND
$4.91¢2 456
#35
CLAMP
$7.34¢3 669
#36
CLAMP
$8.01¢4 006
#37
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#38
BOLT, UNION
$9.86¢4 931
#39
GASKET
$8.39¢4 194
