FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

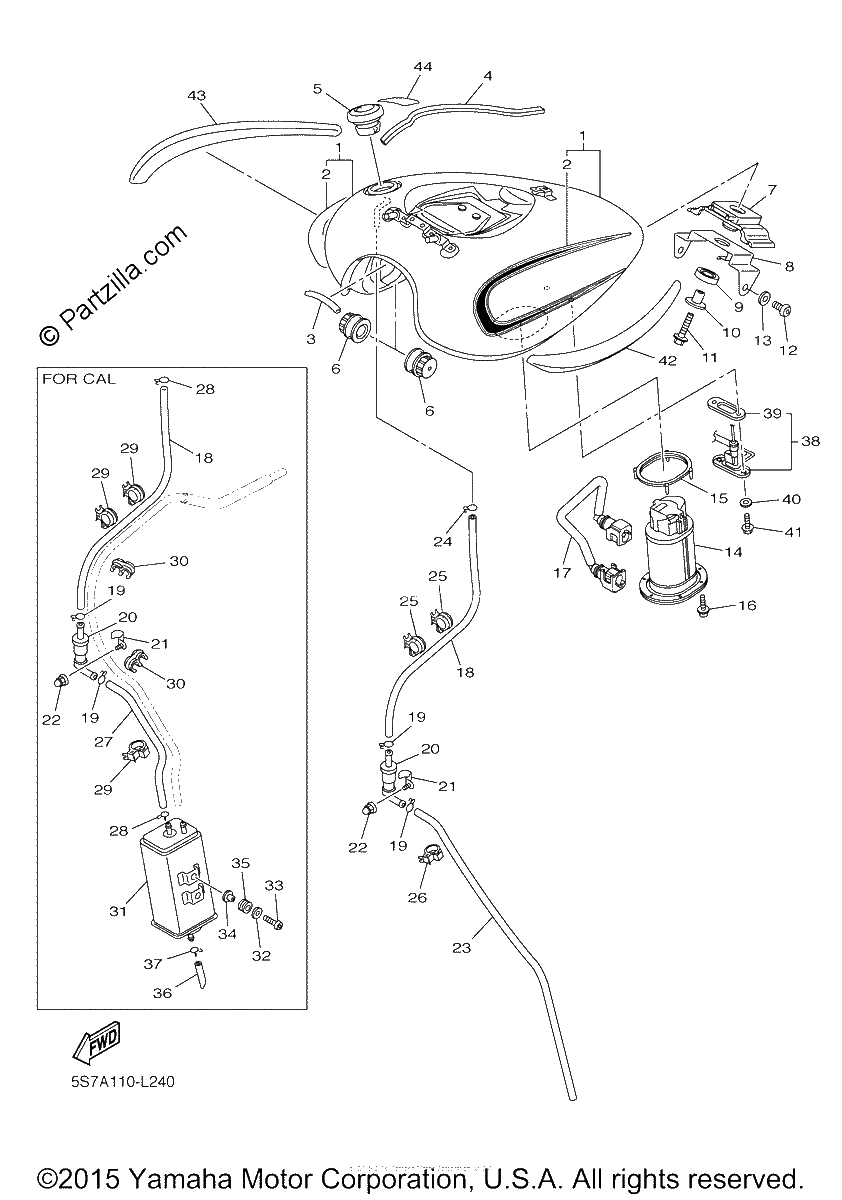

Diagrama de FUEL TANK

Repuestos

#0
5S7-2416C-00-00
EMBLEM 3D SET
$92.64¢46 322
1
#0
5S7-Y2410-00-X5
FUEL TANK COMP. | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$1359.29¢679 644
1
#0
5S7-24240-60-00
GRAPHIC SET | Use for Color SILVER 3 ( S3 / 0791 )
$220.06¢110 032
1
#0
5S7-2417C-10-00
EMBLEM 3D SET | Use for Color Black Metallic X ( SMX / 0903 )
$61.63¢30 814
1
#1
5S7-Y2410-00-X3
FUEL TANK COMP. | Use for Color SILVER 3 ( S3 / 0791 )
$1233.94¢616 969
1
#2
5S7-24240-70-00
GRAPHIC SET | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$219.41¢109 704
1
#3
1HX-24188-01-00
MOLD, FUEL TANK
$19.53¢9 763
1
#4
5S7-24145-00-00
DAMPER, SIDE COVER
$9.74¢4 870
1
#5
4NK-24602-20-00
CAP ASSY
$125.82¢62 911
1
#6
5S7-24181-00-00
DAMPER, LOCATING 1
$11.05¢5 526
1
#7
5S7-24182-00-00
DAMPER, LOCATING 2
$13.39¢6 693
1
#8
5S7-2413Y-00-00
BRACKET, TANK FITTING
$22.20¢11 098
1
#9
4TR-24183-00-00
DAMPER, LOCATING 3
$7.28¢3 640
1
#10
90387-06177-00
COLLAR
$9.51¢4 755
1
#11
95812-06030-00
BOLT, FLANGE
$1.82¢909
1
#12
92012-08014-00
BOLT, BUTTON HEAD
$6.96¢3 479
1
#13
90201-08M01-00
WASHER, PLATE
$2.59¢1 294
1
#14
5S7-13907-00-00
FUEL PUMP COMP.
$1003.94¢501 969
1
#15
5VN-24486-00-00
O-RING
$42.33¢21 166
1
#16
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#17
5S7-13971-00-00
PIPE, FUEL 1
$60.03¢30 015
1
#18
5S7-24313-00-00
PIPE 3
$26.69¢13 346
1
#19
90467-090A2-00
Clip
$2.74¢1 368
1
#20
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#21
5S7-24136-00-00
CLAMP 2
$8.49¢4 244
1
#22
90176-05004-00
NUT, CROWN
$3.82¢1 909
1
#23
90445-11036-00
HOSE
$18.75¢9 373
1
#24
90467-090A2-00
Clip
$2.74¢1 368
1
#25
90464-20191-00
Clamp
$8.06¢4 031
1
#26
90464-10190-00
CLAMP
$7.95¢3 973
1
#27
5S7-2486A-00-00
PIPE 1 | FOR CALIFORNIA
$14.85¢7 423
1
#28
90467-090A2-00
Clip
$2.74¢1 368
1
#29
90464-20191-00
Clamp
$8.06¢4 031
1
#30
90464-10M57-00
CLAMP | FOR CALIFORNIA
$5.23¢2 616
1
#31
5PX-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$325.59¢162 794
1
#32
90201-06023-00
WASHER, PLATE | FOR CALIFORNIA
$4.13¢2 064
1
#33
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$5.96¢2 978
1
#34
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.22¢3 111
1
#35
90480-13163-00
GROMMET | FOR CALIFORNIA
$6.51¢3 254
1
#36
3D8-24325-00-00
PIPE 14 | FOR CALIFORNIA
$2.13¢1 064
1
#37
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#38
5S7-85752-10-00
SENDER UNIT ASSY, FUEL METER
$103.51¢51 756
1
#39
3D8-85753-00-00
GASKET, SENDER UNIT
$29.52¢14 760
1
#40
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#41
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#42
5S7-2416C-10-00
EMBLEM 3D SET | Use for Color Black Metallic X ( SMX / 0903 )
$85.47¢42 734
1
#43
5S7-2417C-00-00
EMBLEM 3D SET
$90.65¢45 327
1
#44
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
