ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

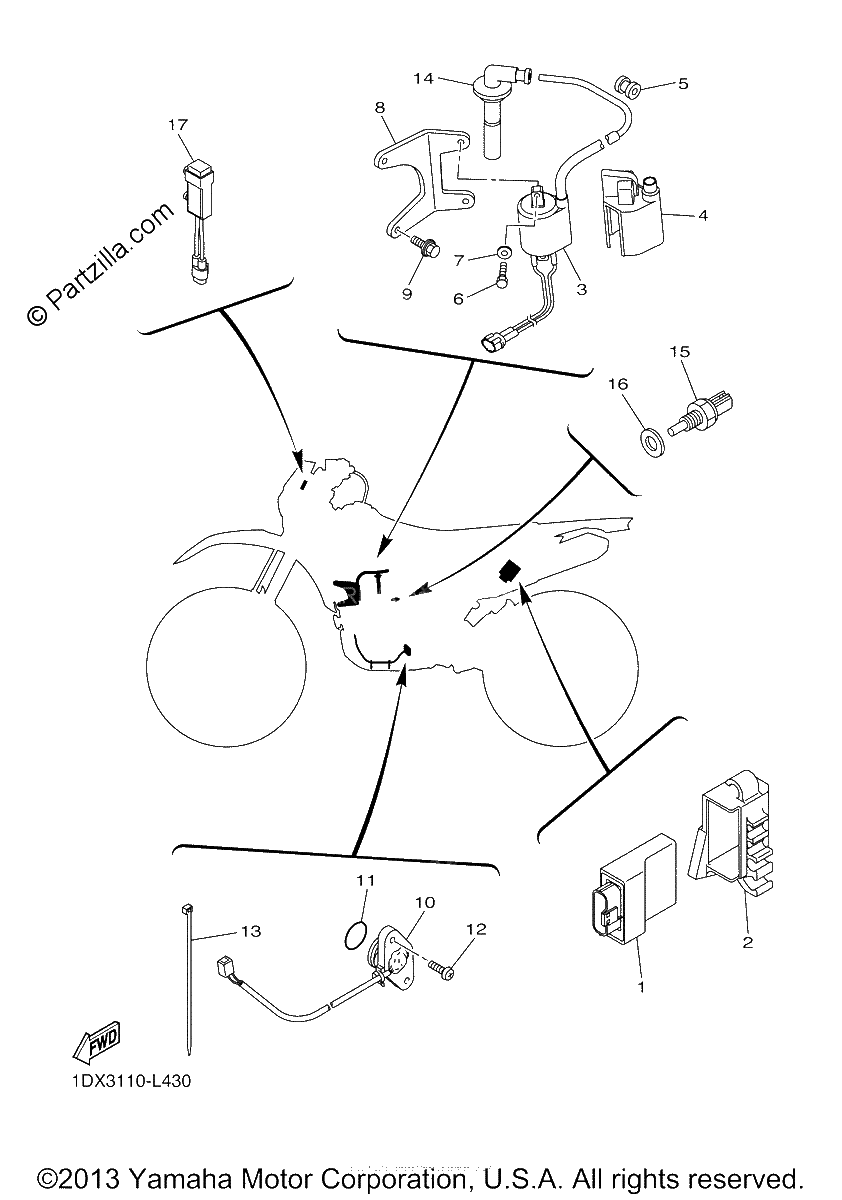

Diagrama de ELECTRICAL 1

Repuestos

#1
1DX-8591A-20-00
ENGINE CONTROL UNIT ASSY
No Disponible
1
#2
1DX-85546-00-00
BAND
$11.53¢5 767
1
#3
1DX-82310-00-00
IGNITION COIL ASSY
$84.39¢42 193
1
#4
1DX-82314-00-00
COVER, IGNITION COIL
$5.99¢2 996
1
#5
90480-11015-00
Grommet
$3.82¢1 909
1
#6
97002-05020-00
BOLT
$2.71¢1 357
1
#7
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#8
1DX-82316-00-00
BRACKET, IGNITION COIL
$52.50¢26 249
1
#9
90119-06265-00
BOLT, WITH WASHER
$2.44¢1 219
1
#10
1DX-82540-00-00
NEUTRAL SWITCH ASSY
$66.76¢33 379
1
#11
93210-21001-00
O-RING
$5.23¢2 616
1
#12
98902-05014-00
SCREW, BIND
$1.32¢661
1
#13
5Y9-12491-00-00
CLAMP 1
$7.23¢3 617
1
#14
18P-82370-00-00
PLUG CAP ASSY
$81.78¢40 888
1
#15
4P9-83591-00-00
THERMO UNIT
$31.65¢15 824
1
#16
90430-10004-00
GASKET
$6.51¢3 254
1
#17
1DX-82718-00-00
RESISTOR ASSY
$83.89¢41 946
1
