FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

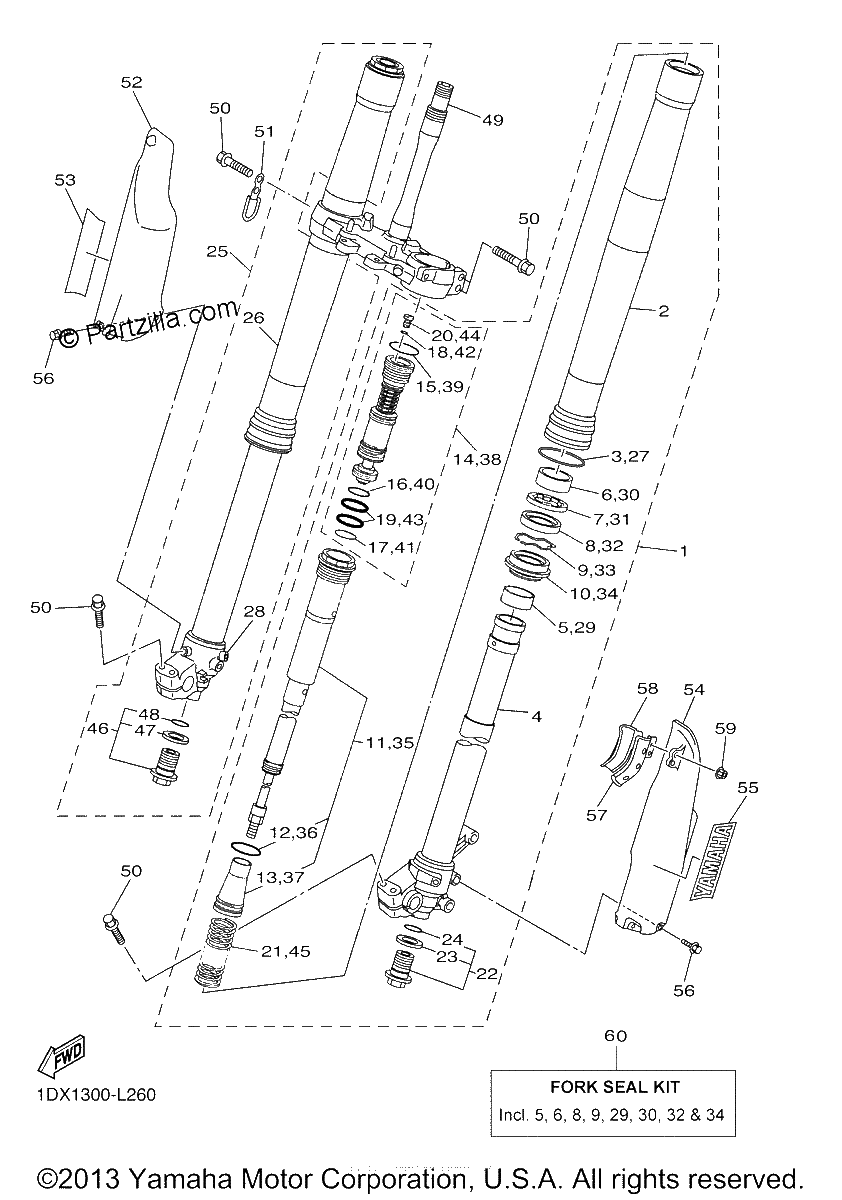

Diagrama de FRONT FORK

Repuestos

#1
1DX-23102-00-00
FRONT FORK ASSY (L.H)
$1759.99¢879 994
1
#2
17D-23136-00-00
TUBE, OUTER
$689.99¢344 994
1
#3
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#4
1DX-23120-00-00
INNER TUBE COMP. 2
$607.05¢303 525
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#8
17D-23145-00-00
OIL SEAL
$27.14¢13 569
1
#9
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#10
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#11
1DX-23170-00-00
CYLINDER COMP., FRONT FORK
$722.49¢361 244
1
#12
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#13
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#14
1DX-2316A-00-00
VALVE COMP.
$193.17¢96 587
1
#15
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#16
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#17
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#18
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#19
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#20
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#21
1DX-23141-50-00
SPRING, FRONT FORK (K=4.5N/
$173.01¢86 506
1
#22
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#23
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#24
276-23114-00-00
GASKET
$4.63¢2 313
1
#25
1DX-23103-00-00
FRONT FORK ASSY (R.H)
$1759.99¢879 994
1
#26
17D-23136-00-00
TUBE, OUTER
$689.99¢344 994
1
#27
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#28
1DX-23110-00-00
INNER TUBE COMP. 1
$437.60¢218 800
1
#29
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#30
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#31
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#32
17D-23145-00-00
OIL SEAL
$27.14¢13 569
1
#33
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#34
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#35
1DX-23170-00-00
CYLINDER COMP., FRONT FORK
$722.49¢361 244
1
#36
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#37
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#38
1DX-2316A-00-00
VALVE COMP.
$193.17¢96 587
1
#39
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#39
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.83¢4 913
1
#40
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#41
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#42
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#43
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#44
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#45
1DX-23141-50-00
SPRING, FRONT FORK (K=4.5N/
$173.01¢86 506
1
#46
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#47
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#48
276-23114-00-00
GASKET
$4.63¢2 313
1
#49
1DX-23340-00-00
UNDER BRACKET COMP.
$691.24¢345 619
1
#50
90105-08134-00
BOLT, FLANGE
$6.99¢3 494
1
#51
5TJ-23525-C0-00
GUIDE
$25.99¢12 994
1
#52
5TJ-2315J-C0-00
PROTECTOR 2
$16.54¢8 269
1
#54
1C3-2315H-10-00
PROTECTOR 1
$20.16¢10 081
1
#55
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.83¢4 913
1
#56
3SP-23356-L0-00
BOLT 2
$6.35¢3 175
1
#57
5XC-23466-L0-00
CLAMP
$5.66¢2 831
1
#58
5XC-23467-L0-00
CLAMP
$13.01¢6 506
1
#59
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#60
1C3-W003B-00-00
FORK SEAL KIT
$75.91¢37 956
1
