EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

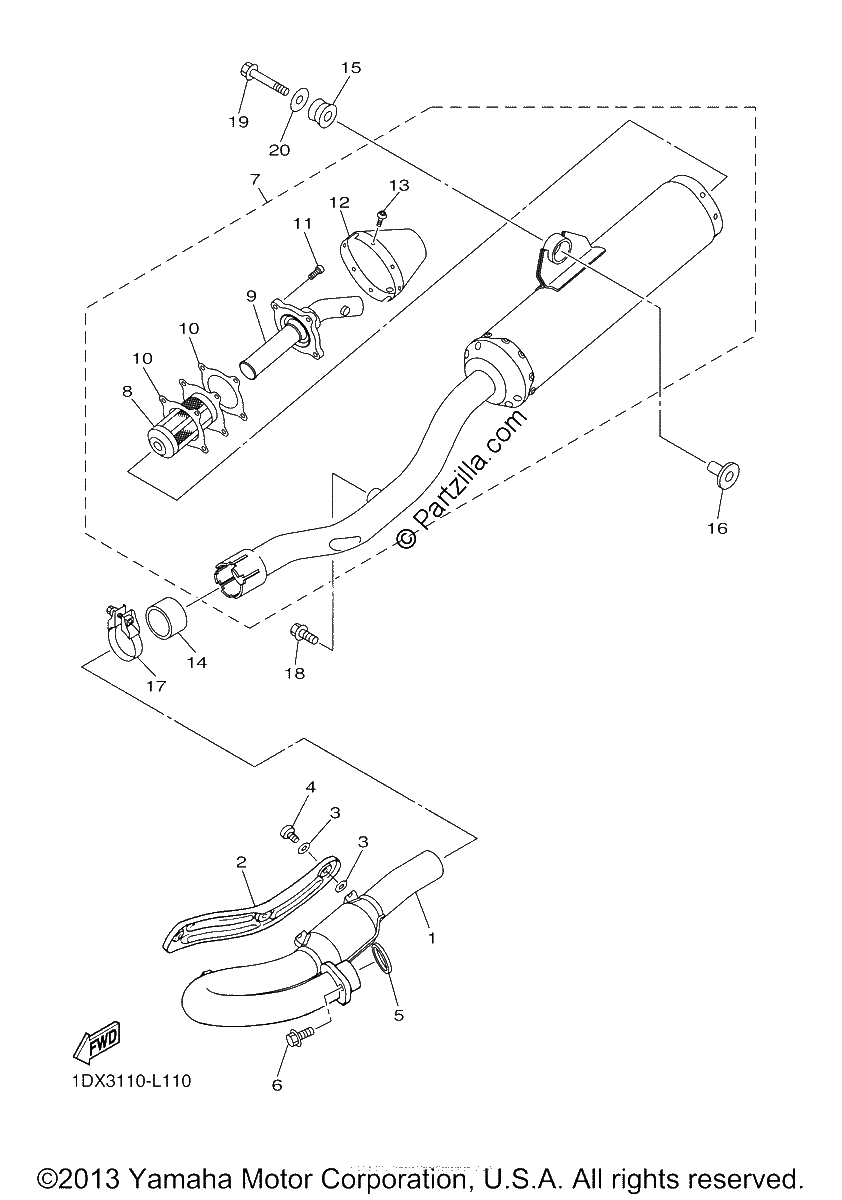

Diagrama de EXHAUST

Repuestos

#1
1DX-14611-20-00
PIPE, EXHAUST 1
$481.81¢240 906
1
#2
2S2-14628-00-00
PROTECTOR, EXHAUST PIPE
$88.94¢44 469
1
#3
90201-05017-00
WASHER, PLATE
$7.48¢3 738
1
#4
98980-06008-00
SCREW,BIND
$0.72¢363
1
#5
3VD-14613-01-00
GASKET, EXHAUST PIPE | INC. IN TOP END GASKET KIT
$11.68¢5 838
1
#6
90105-08142-00
BOLT, FLANGE
$5.84¢2 919
1
#7
5TJ-14710-E0-00
MUFFLER ASSY 1
$1177.49¢588 744
1
#8
5TJ-14780-00-00
SPARK ARRESTER ASSY
$111.59¢55 794
1
#9
5TJ-14784-00-00
PIPE, TAIL
$167.97¢83 988
1
#10
5TJ-14623-00-00
GASKET, EXHAUST PIPE
$13.71¢6 856
1
#11
90110-05041-00
BOLT, HEXAGON SOCKET HEAD
$3.89¢1 944
1
#12
5TJ-14799-00-00
CAP
$142.97¢71 488
1
#13
92012-05008-00
BOLT, BUTTON HEAD
$2.79¢1 394
1
#14
5XD-14714-00-00
GASKET, MUFFLER
$31.39¢15 694
1
#15
1DX-14747-00-00
DAMPER, MUFFLER
$31.91¢15 956
1
#16
90387-08081-00
COLLAR
$8.85¢4 425
1
#17
5BE-14788-00-00
BAND, SILENCER
$36.23¢18 113
1
#18
90105-08307-00
BOLT, FLANGE
$7.48¢3 738
1
#19
90105-08137-00
BOLT, FLANGE
$4.21¢2 106
1
#20
90201-08061-00
WASHER, PLATE
$7.41¢3 706
1
