CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

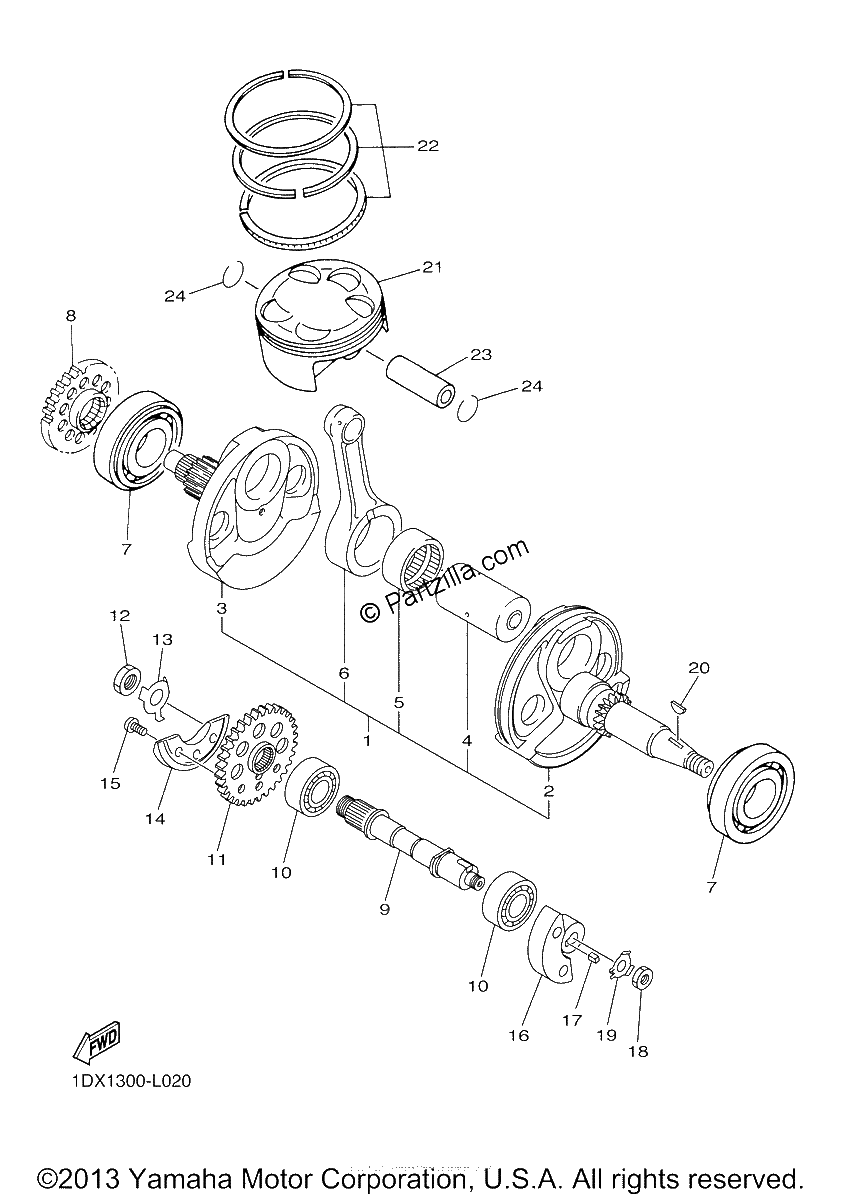

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
1DX-11400-00-00
CRANKSHAFT ASSY
$729.95¢364 975
1
#2
1DX-11412-00-00
CRANK 1
$328.92¢164 461
1
#3
1DX-11422-00-00
CRANK 2
$356.44¢178 221
1
#4
5TG-11681-01-00
PIN, CRANK 1
$82.21¢41 107
1
#5
93310-63458-00
BEARING
$118.47¢59 236
1
#6
1DX-11651-00-00
ROD, CONNECTING
$131.03¢65 515
1
#7
93306-30633-00
BEARING
$96.57¢48 283
1
#8
2S2-11536-00-00
GEAR, DRIVE
$92.16¢46 080
1
#9
2S2-11455-00-00
SHAFT 1
$260.72¢130 358
1
#10
93304-20310-00
BEARING
$105.27¢52 636
1
#11
2S2-11531-00-00
GEAR, BALANCE WEIGHT
$130.21¢65 107
1
#12
90170-14171-00
NUT
$7.95¢3 973
1
#13
90215-14287-00
WASHER, LOCK
$4.84¢2 421
1
#14
1DX-11454-00-00
WEIGHT 1
$55.75¢27 876
1
#15
90149-06156-00
SCREW
$6.96¢3 479
1
#16
2S2-11464-00-00
WEIGHT 2
$79.66¢39 830
1
#17
90282-05034-00
KEY, STRAIGHT
$9.12¢4 560
1
#18
90170-10405-00
NUT
$6.88¢3 439
1
#19
90215-10009-00
WASHER, LOCK
$12.67¢6 336
1
#20
90280-03006-00
KEY, WOODRUFF
$7.44¢3 720
1
#21
1DX-11631-00-00
PISTON (STD)
$208.05¢104 023
1
#22
5JG-11603-00-00
PISTON RING SET (STD)
$66.99¢33 494
1
#23
33D-11633-00-00
PIN, PISTON
$36.50¢18 251
1
#24
93450-19052-00
CIRCLIP
$5.58¢2 789
1
