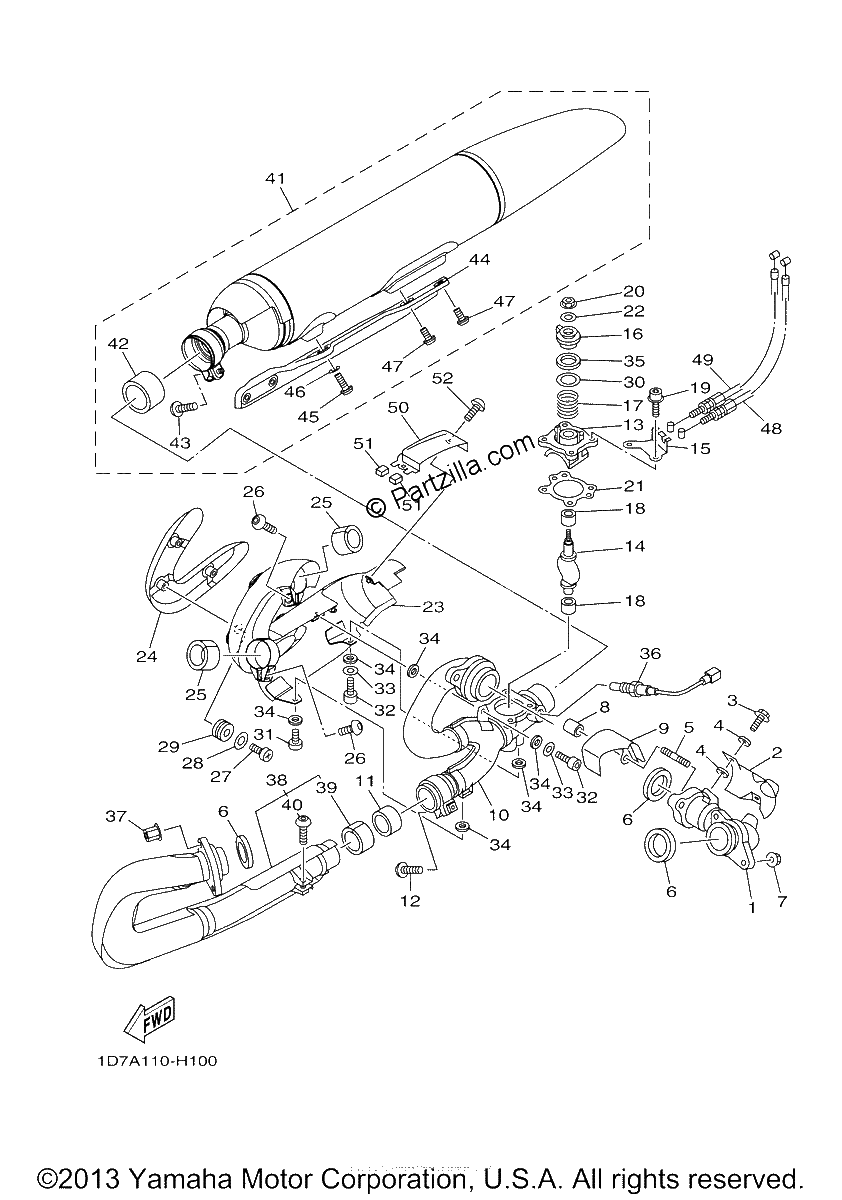

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT, EXHAUST 1
$284.89¢142 445
#2
PROTECTOR, EXHAUST PIPE
$76.99¢38 496
#3
BOLT, FLANGE
$3.66¢1 829
#4
WASHER, PLATE
$6.88¢3 439
#5
BOLT, STUD
$4.02¢2 012
#6
GASKET, EXHAUST PIPE
$22.10¢11 051
#7
NUT, SELF-LOCKING
$9.29¢4 646
#8
NUT
$11.73¢5 865
#9
COVER, EXHAUST
$102.73¢51 365
#10
EXHAUST PIPE COMP.
$584.19¢292 094
#11
GASKET, SILENCER
$27.15¢13 576
#12
BOLT, BUTTON HEAD
$7.30¢3 651
#13
HOUSING
$157.62¢78 810
#14
ARM, SHAFT (VALVE)
$214.98¢107 491
#15
BRACKET
$11.76¢5 882
#16
PULLEY
$32.29¢16 146
#17
SPRING
$4.34¢2 168
#18
COLLAR
$39.51¢19 757
#19
BOLT, HEXAGON SOCKET HEAD
$3.69¢1 846
#20
NUT
$3.96¢1 978
#21
GASKET 3
$16.55¢8 274
#22
WASHER, PLAIN
$0.89¢443
#23
PROTECTOR, MUFFLER 1
$516.41¢258 204
#24
PROTECTOR, MUFFLER 2
$334.21¢167 106
#25
GASKET, MUFFLER
$32.97¢16 485
#26
BOLT, BUTTON HEAD
$7.30¢3 651
#27
SCREW, BIND
$6.75¢3 375
#28
WASHER, PLATE
$6.76¢3 381
#29
GROMMET
$9.64¢4 819
#30
VALVE, PLATE
$3.78¢1 892
#31
SCREW, BIND
$6.75¢3 375
#32
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#33
WASHER, PLAIN
$0.89¢443
#34
WASHER, PLATE
$6.88¢3 439
#35
COLLAR 2
$60.20¢30 101
#36
SENSOR, OXYGEN
$363.33¢181 665
#37
NUT
$5.51¢2 754
#38
EXHAUST PIPE ASSY 2
$800.39¢400 194
#39
GASKET, MUFFLER
$32.97¢16 485
#40
BOLT, BUTTON HEAD
$7.30¢3 651
#41
MUFFLER ASSY 1
No Disponible
#42
GASKET, MUFFLER
$28.84¢14 421
#43
BOLT, BUTTON HEAD
$7.30¢3 651
#44
MUFFLER STAY SUB-KUMI
$273.19¢136 597
#45
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
#46
WASHER, PLATE
$6.30¢3 151
#47
BOLT (replaces 90111-08064-00)
$6.89¢3 444
#48
CABLE, PULLEY 1
$87.30¢43 648
#49
CABLE, PULLEY 2
$78.87¢39 433
#50
PROTECTOR, EXHAUST
$103.91¢51 957
#51
DAMPER, LOCATING 1
$7.15¢3 577
#52
BOLT, BUTTON HEAD
$5.78¢2 892
