STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

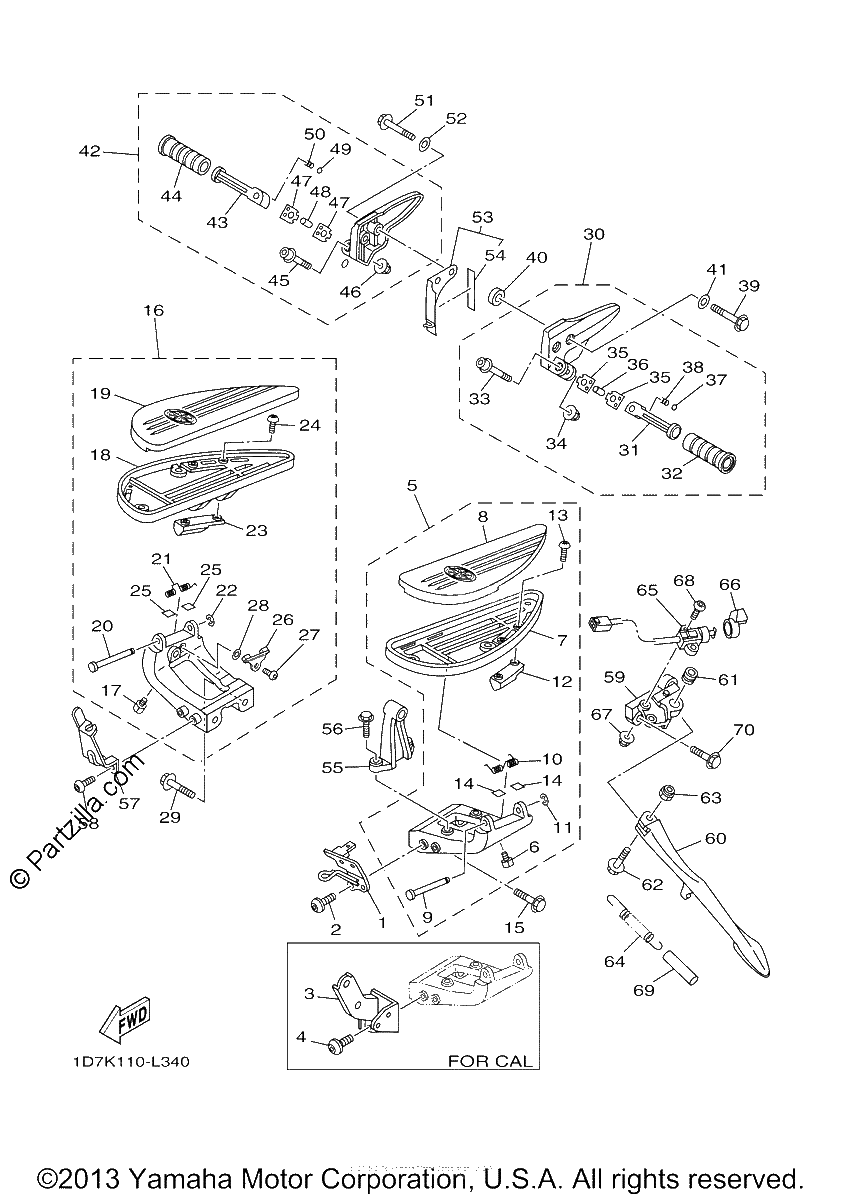

Diagrama de STAND FOOTREST

Repuestos

#1
1D7-2134L-00-00
BRACKET, HORN 2 | FOR U49
$47.43¢23 713
1
#2
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#3
1D7-2742L-00-00
BRACKET 5 | FOR CAL
$58.99¢29 497
1
#4
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#5
1D7-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$462.70¢231 351
1
#6
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$16.27¢8 136
1
#7
1D7-27451-00-00
FOOTREST
$48.69¢24 346
1
#8
1D7-27413-00-00
COVER, FOOTREST
$49.75¢24 874
1
#9
1D7-27427-00-00
SHAFT
$7.82¢3 910
1
#10
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#11
99002-06600-00
CIRCLIP
$0.94¢471
1
#12
1D7-27496-00-00
MOLE 1
$58.10¢29 049
1
#13
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#14
1D7-27485-00-00
SEAL
$4.23¢2 116
1
#15
95024-10045-00
BOLT, FLANGE
$7.44¢3 720
1
#16
1D7-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$672.65¢336 323
1
#17
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$16.27¢8 136
1
#18
1D7-27461-00-00
FOOTREST
$48.69¢24 346
1
#19
1D7-27423-00-00
COVER, FOOTREST
$49.75¢24 874
1
#20
1D7-27427-00-00
SHAFT
$7.82¢3 910
1
#21
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#22
99002-06600-00
CIRCLIP
$0.94¢471
1
#23
1D7-27497-00-00
MOLE 2
$58.10¢29 049
1
#24
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#25
1D7-27485-00-00
SEAL
$4.23¢2 116
1
#26
1D7-27214-00-00
STOPPER
$20.77¢10 385
1
#27
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#28
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#29
95024-10045-00
BOLT, FLANGE
$7.44¢3 720
1
#30
1D7-27430-00-00
REAR FOOTREST ASSY 1
$160.48¢80 241
1
#31
1D7-27431-00-00
FOOTREST, REAR 1
$20.26¢10 131
1
#32
4WM-27433-00-00
COVER, REAR FOOTREST
$19.39¢9 695
1
#33
90109-06016-00
BOLT
$8.50¢4 249
1
#34
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#35
1D7-27437-00-00
WASHER, SPECIAL
$4.23¢2 116
1
#36
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#37
93501-04011-00
BALL
$6.87¢3 433
1
#38
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#39
1D7-2171G-01-00
BRACKET, STOPPER STEEERING
$38.15¢19 073
1
#39
90105-10171-00
BOLT, FLANGE
$4.51¢2 254
1
#40
90387-10047-00
COLLAR
$12.01¢6 003
1
#41
90201-10037-00
WASHER, PLATE
$7.11¢3 553
1
#42
1D7-27440-00-00
REAR FOOTREST ASSY 2
$160.84¢80 420
1
#43
1D7-27441-00-00
FOOTREST, REAR 2
$32.07¢16 037
1
#44
4WM-27433-00-00
COVER, REAR FOOTREST
$19.39¢9 695
1
#45
90109-06016-00
BOLT
$8.50¢4 249
1
#46
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#47
1D7-27437-00-00
WASHER, SPECIAL
$4.23¢2 116
1
#48
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#49
93501-04011-00
BALL
$6.87¢3 433
1
#50
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#51
90105-10190-00
BOLT, FLANGE
$6.06¢3 030
1
#52
90201-10037-00
WASHER, PLATE
$7.11¢3 553
1
#54
1D7-2174Y-00-00
DAMPER
No Disponible
1
#55
1D7-27443-00-00
BRACKET 3
$144.50¢72 249
1
#56
95024-08030-00
BOLT, FLANGE (SMALL HEAD)
$6.07¢3 036
1
#57
1D7-2741L-00-00
BRACKET 4
$25.02¢12 512
1
#58
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#59
1D7-27321-00-00
BRACKET, SIDE STAND
$260.81¢130 404
1
#60
1D7-27311-00-00
STAND, SIDE
$295.22¢147 608
1
#61
90387-12031-00
COLLAR
$12.99¢6 498
1
#62
90105-12018-00
BOLT, FLANGE
$10.99¢5 497
1
#63
90185-12119-00
NUT, SELF-LOCKING
$9.46¢4 732
1
#64
90506-35005-00
SPRING, TENSION
$15.32¢7 659
1
#65
3D8-82566-B0-00
SWITCH, SIDE STAND
$106.40¢53 199
1
#66
4WM-8252U-00-00
COVER
$16.08¢8 038
1
#67
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#68
92017-05025-00
BOLT, BUTTON HEAD
$5.96¢2 978
1
#69
90445-22327-00
HOSE
$6.97¢3 484
1
#70
90105-10158-00
BOLT, FLANGE
$8.39¢4 198
1
