TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

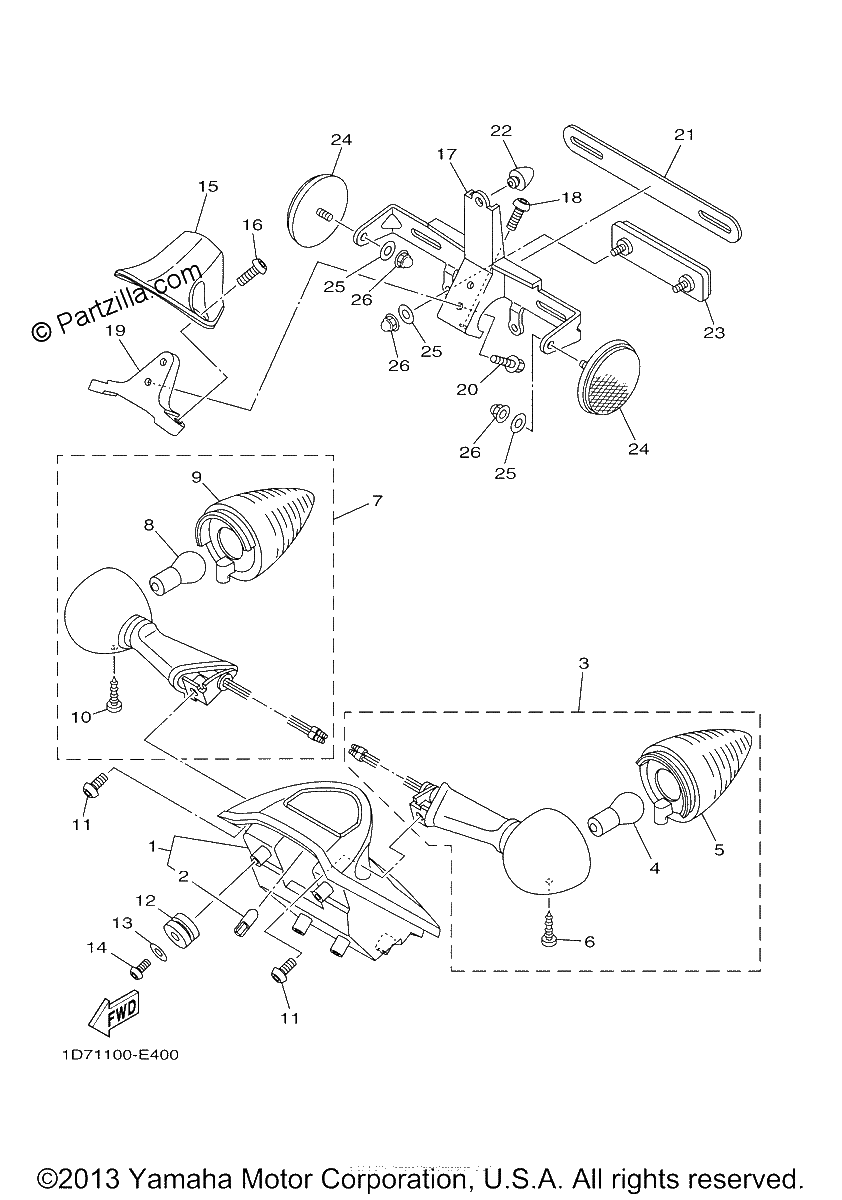

Diagrama de TAILLIGHT

Repuestos

#1
1D7-84710-01-00
TAILLIGHT UNIT ASSY
$477.39¢238 694
1
#2
4SV-84347-00-00
BULB (12V-5W)
$7.65¢3 825
1
#3
1D7-83330-01-00
REAR FLASHER LIGHT ASSY 1
$266.74¢133 369
1
#4
5VN-83331-00-00
BULB, FLASHER (12V-21W)
$14.64¢7 319
1
#5
1D7-83332-01-00
LENS, FLASHER
$50.55¢25 275
1
#6
97780-40010-00
SCREW, TAPPING
$0.64¢319
1
#7
1D7-83340-01-00
REAR FLASHER LIGHT ASSY 2
$318.78¢159 388
1
#8
5VN-83331-00-00
BULB, FLASHER (12V-21W)
$14.64¢7 319
1
#9
1D7-83342-01-00
LENS, FLASHER 2
$51.06¢25 531
1
#10
97780-40010-00
SCREW, TAPPING
$0.64¢319
1
#11
1D7-84752-00-00
BOLT, FITTING
$6.52¢3 262
1
#12
5PX-84553-00-00
DAMPER
$3.74¢1 869
1
#13
90201-061A5-00
WASHER, PLATE
$6.99¢3 494
1
#14
92012-05012-00
BOLT, BUTTON HEAD
$3.25¢1 625
1
#15
1D7-84558-00-00
STAY, LICENSE BRACKET
$200.03¢100 013
1
#16
92014-08020-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#17
1D7-84551-00-00
BRACKET, LICENSE
$65.38¢32 688
1
#18
92014-08020-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#19
1D7-8454L-00-00
BRACKET
$162.65¢81 325
1
#20
95027-06012-00
BOLT, FLANGE
$3.89¢1 944
1
#21
1D7-8454E-00-00
BRACKET, NUMBER PLATE
$8.45¢4 225
1
#22
42U-21639-00-00
DAMPER 2
$29.67¢14 837
1
#23
8Y7-85130-00-00
REAR REFLECTOR ASSY
No Disponible
1
#24
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#25
90201-05020-00
WASHER, PLATE
$2.97¢1 487
1
#26
90176-05003-00
NUT, CROWN
$3.69¢1 844
1
