GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

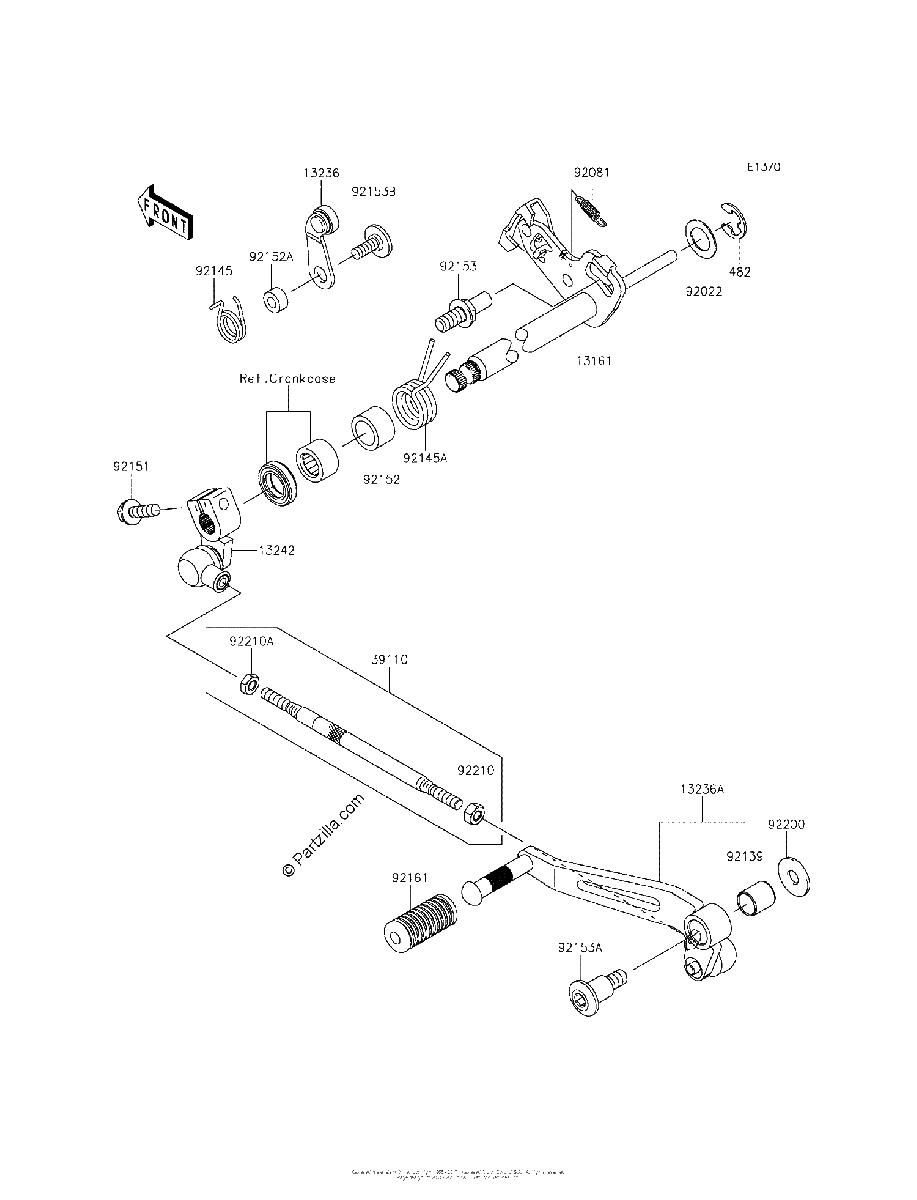

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#482
482J0200
CIRCLIP-TYPE-E,12MM
$3.79¢1 897
1
#13161
13161-0561
LEVER-COMP-CHANGE SHAFT
$101.07¢50 537
1
#13236
13236-0106
LEVER-COMP,POSITION
$9.26¢4 629
1
#13236A
13236-0732
LEVER COMP,CHANGE PEDAL
$80.53¢40 267
1
#13242
13242-0090
LEVER-ASSY-CHANGE
$62.87¢31 435
1
#39110
39110-0033
ROD-ASSY-TIE
$23.32¢11 661
1
#92022
92022-1628
WASHER,CHANGE SHAFT
$6.15¢3 076
1
#92081
92081-1708
SPRING,PAWL RETURN
$6.09¢3 048
1
#92139
92139-0023
BUSHING
$3.36¢1 679
1
#92145A
92145-1122
SPRING
$10.10¢5 048
1
#92145
92145-0944
SPRING,GEAR POSITION
$4.47¢2 237
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.10¢1 052
1
#92152A
92152-1588
COLLAR,6.1X12X6
$2.64¢1 322
1
#92152
92152-1587
COLLAR,14.2X19.9X12
$3.56¢1 783
1
#92153B
92153-1505
BOLT,6X20
$8.20¢4 100
1
#92153A
92153-0446
BOLT,SOCKET,8X16.7
$9.22¢4 611
1
#92153
92153-0421
BOLT,RETURN SPRING
$9.49¢4 744
1
#92161
92161-1466
DAMPER,CHANGE PEDAL
$2.77¢1 386
1
#92200
92200-0174
WASHER,8.0X22.0X1.5
$2.22¢1 110
1
#92210
92210-1100
NUT,6MM
$2.01¢1 006
1
#92210A
92210-1101
NUT,LEFT HANDED,6MM
$1.44¢719
1
