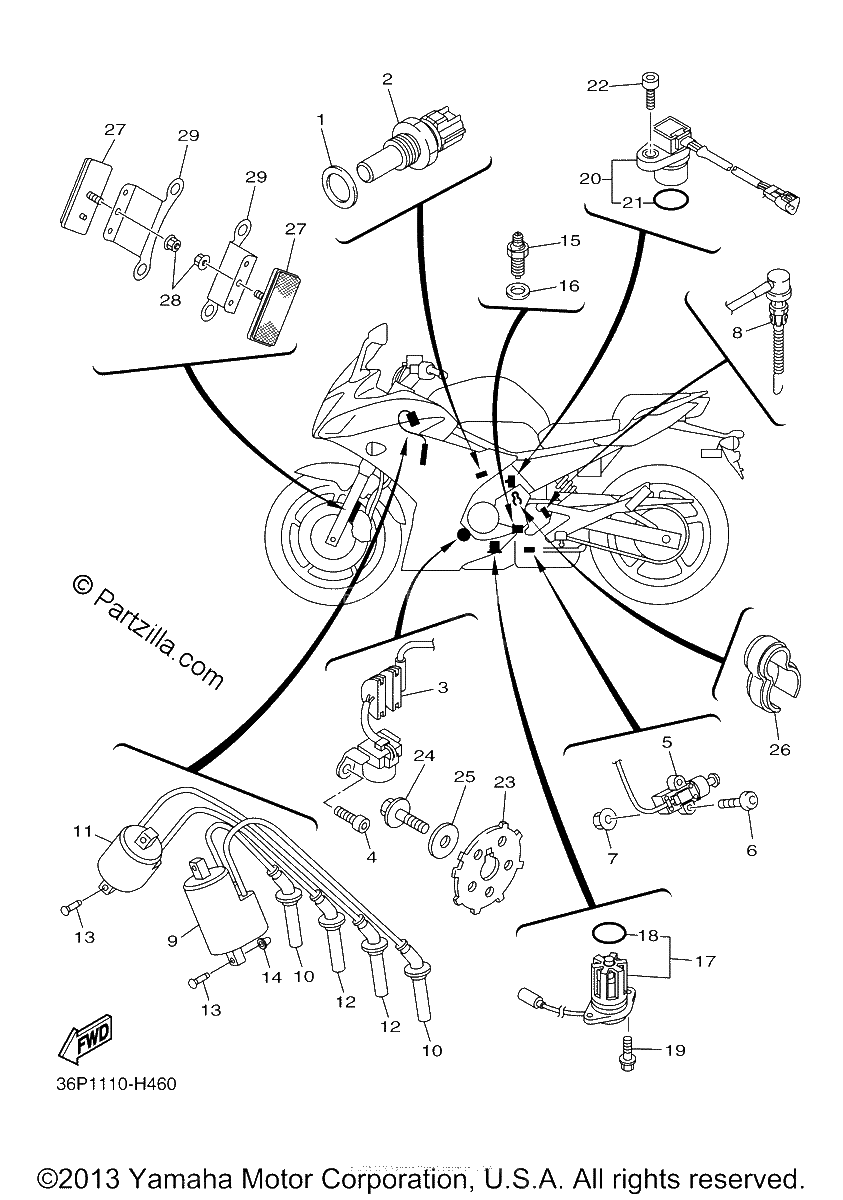

Diagrama de ELECTRICAL 1

Repuestos

#1
90201-12790-00
WASHER, PLATE
$7.51¢3 755
1
#2
8CC-85790-01-00
THERMOSENSOR ASSY
$97.93¢48 967
1
#3
20S-81670-00-00
PICK-UP ASSY
$129.47¢64 733
1
#4
91317-06016-00
BOLT
$1.35¢673
1
#5
20S-82566-60-00
SWITCH, SIDE STAND
$123.11¢61 554
1
#6
92012-05025-00
BOLT, BUTTON HEAD
$3.68¢1 840
1
#7
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#8
20S-82530-00-00
STOP SWITCH ASSY
$43.83¢21 913
1
#9
20S-82310-00-00
IGNITION COIL ASSY
$107.32¢53 659
1
#10
20S-82370-01-00
PLUG CAP ASSY
$71.46¢35 731
1
#11
20S-82320-00-00
IGNITION COIL ASSY
$94.50¢47 248
1
#12
20S-82370-01-00
PLUG CAP ASSY
$71.46¢35 731
1
#13
97702-60525-00
SCREW, TAPPING
$0.55¢276
1
#14
90338-08226-00
PLUG
$1.78¢891
1
#15
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#16
90430-10148-00
Gasket
$5.21¢2 605
1
#17
5VX-85720-01-00
Oil Level Gauge Assy
$234.23¢117 116
1
#18
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#19
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#20
4WM-83755-02-00
SENSOR, SPEED
$125.82¢62 911
1
#21
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#22
91312-06016-00
BOLT
$5.37¢2 685
1
#23
20S-81673-00-00
ROTOR
$21.91¢10 954
1
#24
90105-08113-00
Bolt, Flange
$5.27¢2 633
1
#25
90201-08054-00
WASHER, plate
$6.88¢3 439
1
#26
90464-15065-00
CLAMP
$6.27¢3 134
1
#27
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#28
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#29
36P-85112-00-00
BRACKET, REFLECTOR 1
$11.43¢5 716
1
