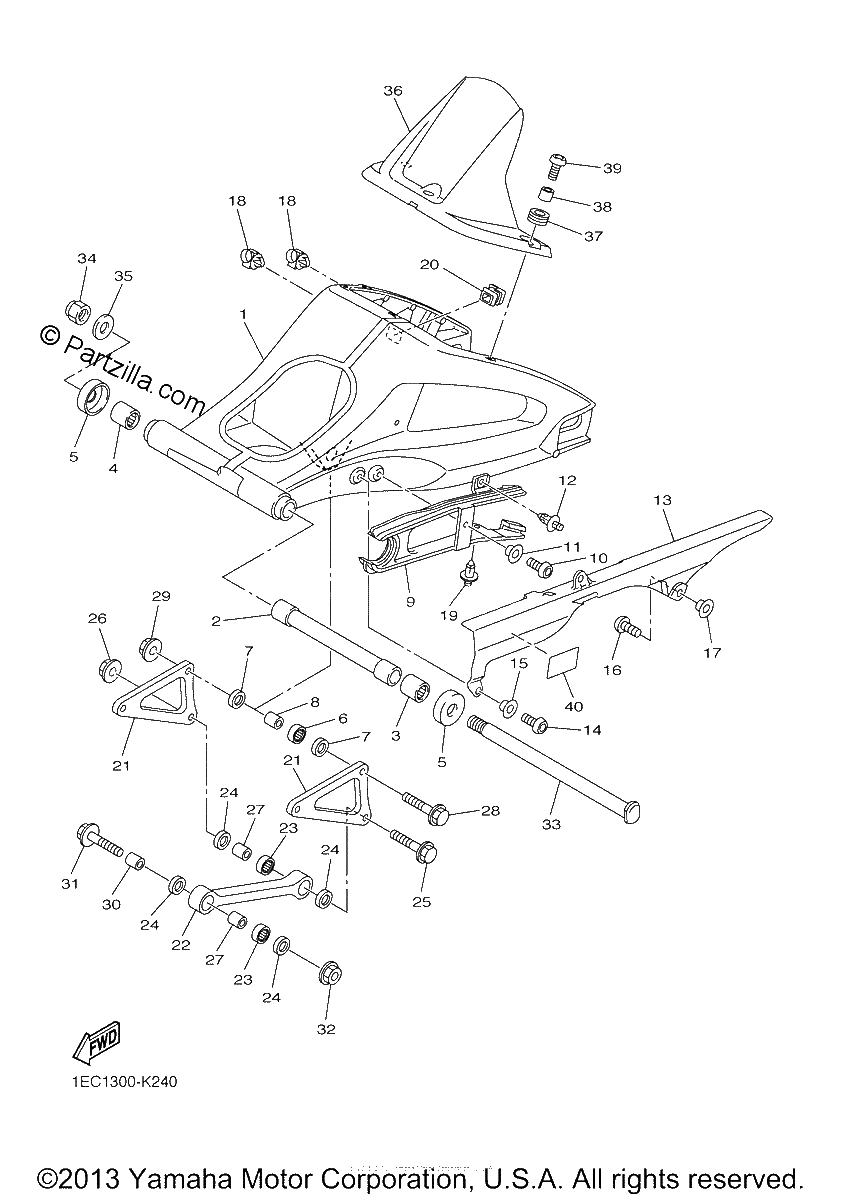

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$1352.39¢676 194
#2
BUSH
$129.82¢64 912
#3
BEARING
$27.93¢13 967
#4
BEARING
$40.01¢20 004
#5
COVER, THRUST 1
$33.92¢16 963
#6
BEARING
$63.04¢31 521
#7
OIL SEAL
$7.38¢3 691
#8
COLLAR
$19.48¢9 741
#9
SEAL, GUARD
$108.76¢54 378
#10
BOLT, BUTTON HEAD
$6.76¢3 381
#11
Collar
$7.93¢3 968
#12
RIVET
$3.68¢1 840
#13
CASE, CHAIN
$84.39¢42 193
#14
BOLT, BUTTON HEAD
$6.76¢3 381
#15
Collar
$7.93¢3 968
#16
BOLT, HEXAGON SOCKET HEAD
$4.09¢2 047
#17
COLLAR
$8.66¢4 330
#18
Clamp
$3.39¢1 696
#19
RIVET
$2.78¢1 392
#20
CAP
$7.06¢3 530
#21
ARM, RELAY
$47.90¢23 949
#22
ARM 1
$91.48¢45 741
#23
BEARING
$38.04¢19 021
#24
OIL SEAL
$7.38¢3 691
#25
BOLT, FLANGE
$5.30¢2 651
#26
NUT, U FLANGE
$2.51¢1 254
#27
COLLAR
$19.48¢9 741
#28
BOLT, FLANGE
$5.30¢2 651
#29
NUT, U FLANGE
$2.51¢1 254
#30
COLLAR
$24.77¢12 385
#31
BOLT, FLANGE
$6.52¢3 260
#32
NUT, U FLANGE
$2.51¢1 254
#33
SHAFT, PIVOT
$88.69¢44 344
#34
NUT, SELF-LOCKING
$17.39¢8 694
#35
WASHER, PLATE
$6.80¢3 398
#36
REAR FENDER COMP.
$53.93¢26 967
#37
GROMMET
$6.38¢3 191
#38
COLLAR
$4.57¢2 283
#39
SCREW
$4.70¢2 352
#40
LABEL, TIRE
$3.32¢1 662
