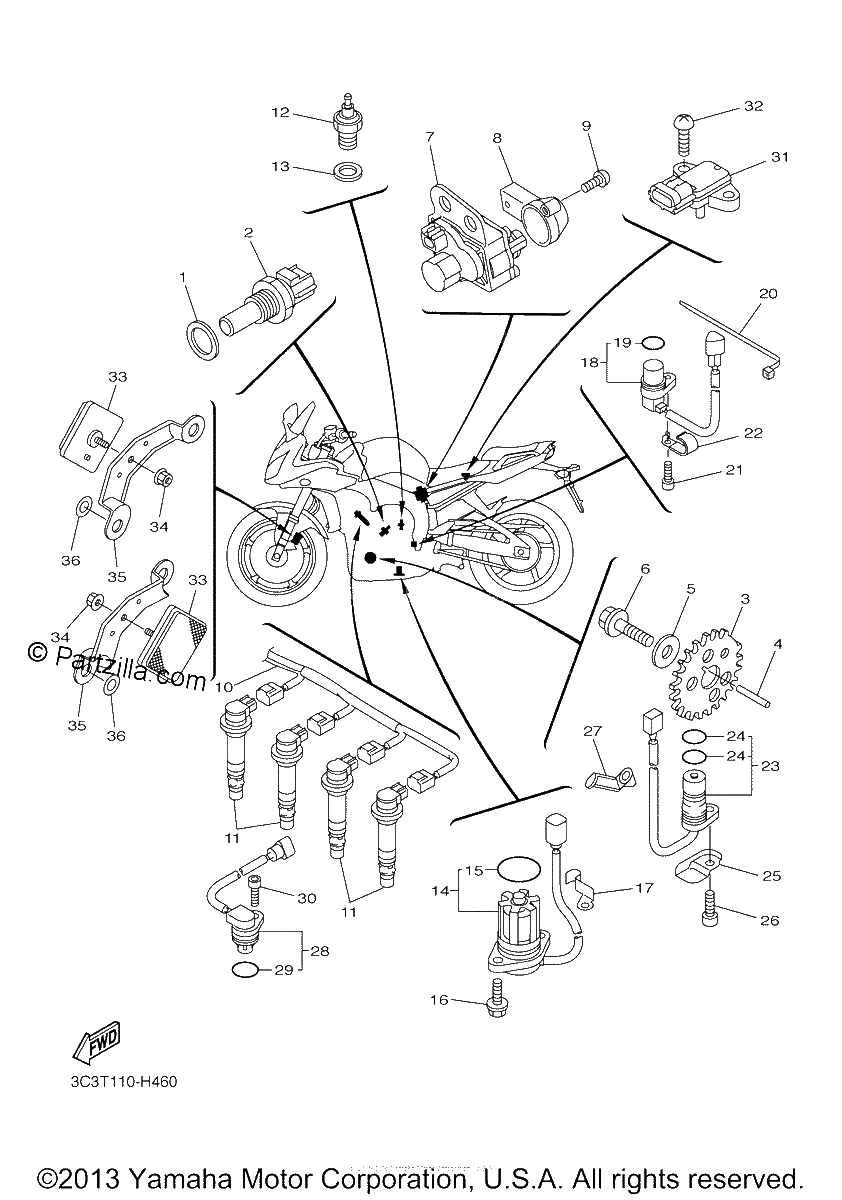

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WASHER, PLATE
$7.51¢3 755
#2
THERMOSENSOR ASSY
$97.93¢48 967
#3
ROTOR
$58.81¢29 405
#4
KEY, STRAIGHT
$10.98¢5 491
#5
WASHER, PLATE
$7.27¢3 634
#6
BOLT, FLANGE
$10.99¢5 497
#7
SERVO MOTOR ASSY
$339.12¢169 562
#8
COVER, SERVO MOTOR
$11.12¢5 560
#9
SCREW,TAPPING (replaces 97702-50514-00)
$4.20¢2 099
#10
WIRE, SUB LEAD
$143.96¢71 979
#11
IGNITION COIL ASSY
$164.44¢82 219
#12
NEUTRAL SWITCH ASSY
$57.82¢28 911
#13
Gasket
$5.21¢2 605
#14
OIL LEVEL GAUGE ASSY
$160.95¢80 477
#15
O-RING
$11.99¢5 997
#16
BOLT, FLANGE
$3.65¢1 823
#17
CLAMP
$5.55¢2 777
#18
SENSOR, SPEED
$156.49¢78 246
#19
O-RING
$4.74¢2 369
#20
CLAMP
$18.10¢9 051
#21
BOLT
$1.35¢673
#22
CLAMP
$6.50¢3 249
#23
PICK-UP ASSY
$145.13¢72 565
#24
O-RING 1
$6.51¢3 254
#25
PLATE
$5.40¢2 702
#26
BOLT
$1.35¢673
#27
CLAMP
$5.89¢2 944
#28
SENSOR, CAM POSITION
$139.21¢69 604
#29
O-RING
$4.74¢2 369
#30
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#31
SENSOR, PRESSURE
$187.39¢93 696
#32
SCREW, TAPPING
$7.30¢3 651
#33
FRT.REFLECTOR ASSY (replaces 20G-85110-00-00)
$23.60¢11 799
#34
NUT, FLANGE
$6.76¢3 381
#35
BRACKET, REFLECTOR 1
$42.38¢21 189
#36
WASHER, PLATE
$2.75¢1 374
