REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

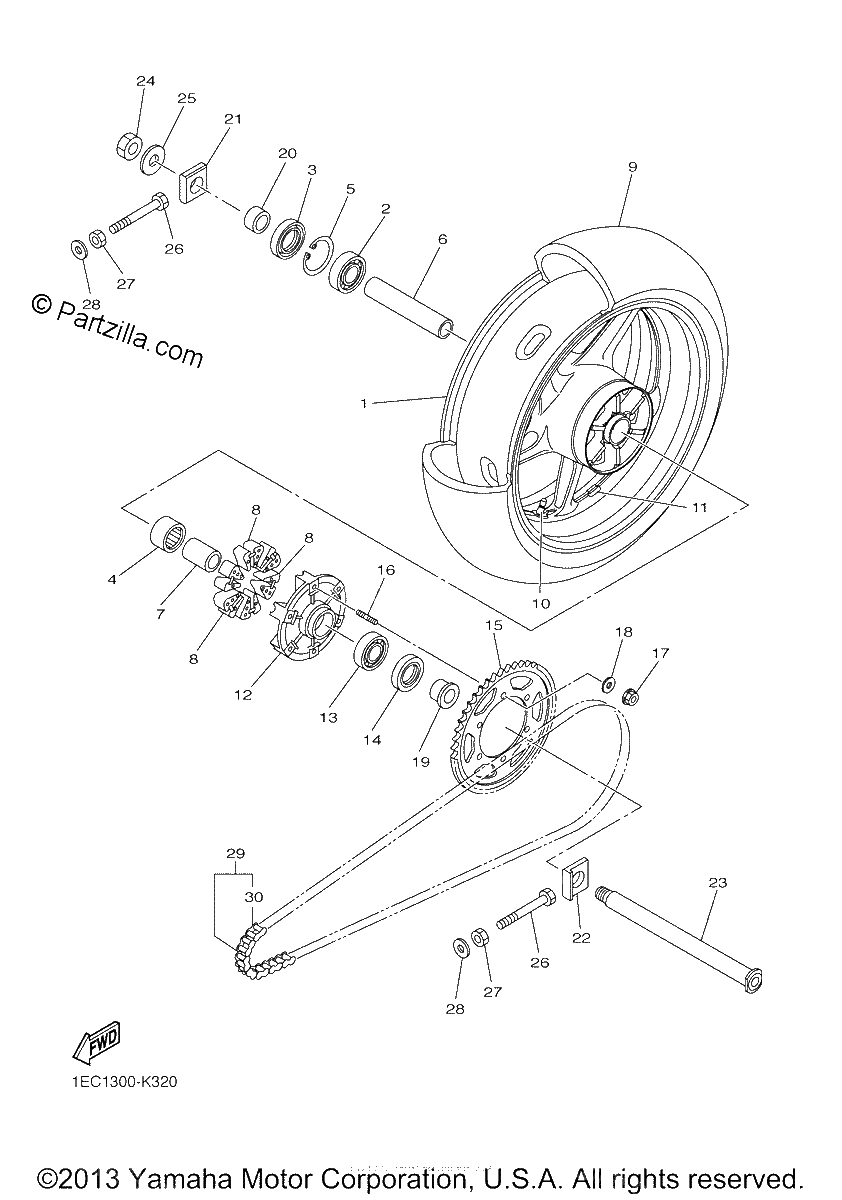

Diagrama de REAR WHEEL

Repuestos

#0
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#0
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#1
5VY-25338-00-98
CAST WHEEL, REAR | UR LGB FOR SMX
$1069.43¢534 716
1
#2
93306-20531-00
BEARING
$48.71¢24 357
1
#3
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#4
93317-33590-00
BEARING
$72.21¢36 104
1
#5
93420-61M07-00
CIRCLIP
$7.92¢3 962
1
#6
90387-28018-00
COLLAR
$26.51¢13 254
1
#7
2D1-25377-00-00
COLLAR, WHEEL
$92.74¢46 368
1
#8
5LV-25364-00-00
DAMPER
$13.90¢6 952
1
#9
94119-17062-00
TIRE (190/50 ZR17M/C 73W D221) | DUNLOP
No Disponible
1
#10
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#11
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#12
2D1-25366-00-00
CLUTCH, HUB
$355.05¢177 526
1
#13
93306-20531-00
BEARING
$48.71¢24 357
1
#14
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#15
2D1-25445-20-00
SPROCKET, DRIVEN (45T)
$75.35¢37 674
1
#16
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#17
90185-10009-00
NUT, SELF-LOCKING
$6.43¢3 214
1
#18
90201-10021-00
WASHER, PLATE
$4.91¢2 455
1
#19
90387-28019-00
COLLAR
$34.05¢17 026
1
#20
90387-28017-00
COLLAR
$33.66¢16 830
1
#21
5VY-25388-00-00
PULLER, CHAIN 1
$59.42¢29 710
1
#22
5VY-25389-01-00
PULLER, CHAIN 2
$38.31¢19 153
1
#23
2D1-25381-00-00
AXLE, WHEEL
$87.02¢43 510
1
#24
90185-24008-00
NUT, SELF-LOCKING
$37.40¢18 699
1
#25
90201-25020-00
WASHER, PLATE
$7.01¢3 507
1
#26
90101-08013-00
BOLT
$3.29¢1 644
1
#27
95333-08600-00
NUT
$3.51¢1 754
1
#28
90201-08057-00
WASHER, PLATE
$6.83¢3 415
1
#29
94582-10122-00
CHAIN (DID50VA8-122LL)
$291.15¢145 573
1
#30
94682-05031-00
JOINT, CHAIN (DID 50VA8-ZJ)
$9.99¢4 997
1
