CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

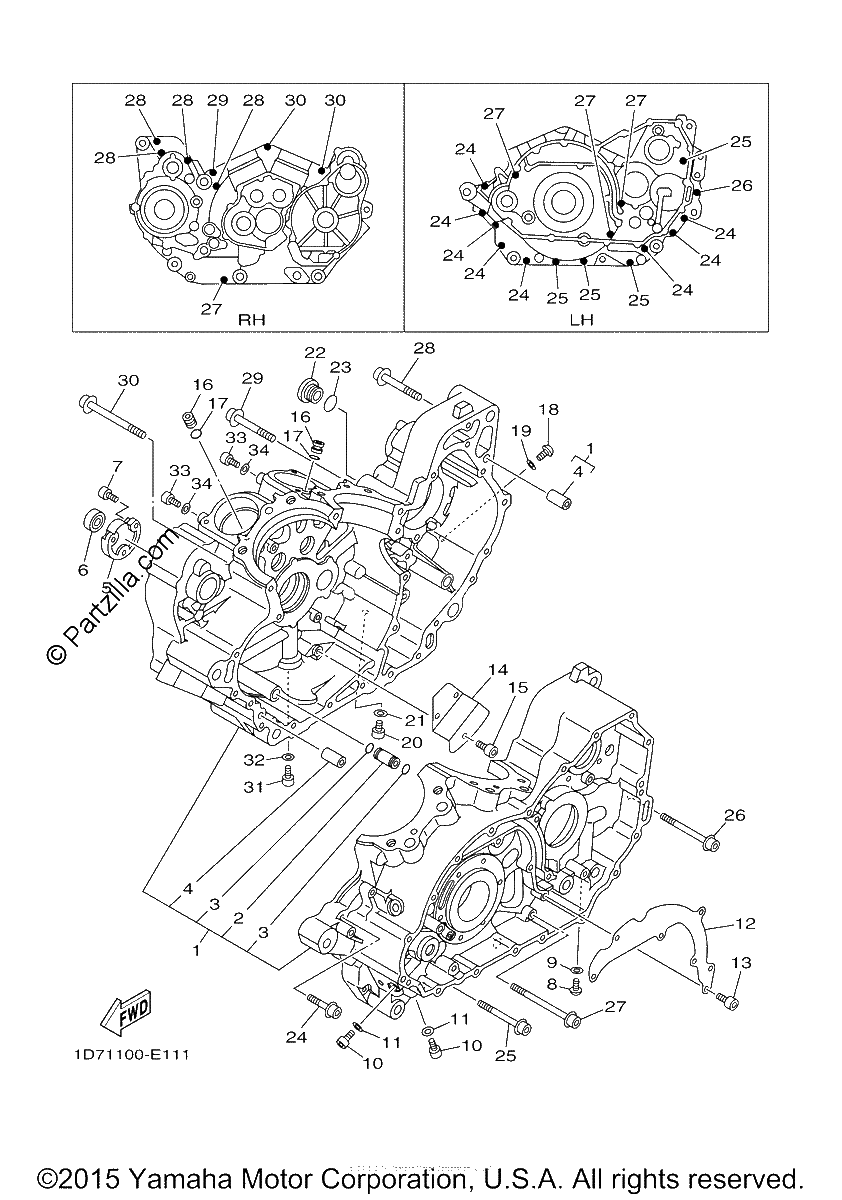

Diagrama de CRANKCASE

Repuestos

#1
1D7-15100-19-00
CRANKCASE ASSY
$1683.59¢841 794
1
#2
1D7-15138-00-00
NOZZLE 1
$6.46¢3 231
1
#3
93210-10001-00
O-RING
$1.41¢707
1
#4
99530-10116-00
PIN, DOWEL
$3.68¢1 840
1
#5
1D7-15163-00-00
HOUSING, BEARING 1
$32.98¢16 491
1
#6
93306-00004-00
BEARING
$35.85¢17 923
1
#7
90110-06174-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#8
90149-06156-00
SCREW
$6.96¢3 479
1
#9
90430-06014-00
GASKET
$7.59¢3 795
1
#10
91314-08014-00
BOLT,SOCKET
$6.06¢3 030
1
#11
90430-08119-00
GASKET
$6.36¢3 180
1
#12
1D7-15191-00-00
PLATE
$3.59¢1 794
1
#13
91317-06016-00
BOLT
$1.35¢673
1
#14
1D7-15412-00-00
COVER, OIL PUMP
$4.93¢2 467
1
#15
91312-06014-00
bolt
$5.20¢2 599
1
#16
1D7-15189-00-00
PLUG
$9.48¢4 738
1
#17
93210-07540-00
O-RING
$6.32¢3 162
1
#18
90149-06156-00
SCREW
$6.96¢3 479
1
#19
90430-06014-00
GASKET
$7.59¢3 795
1
#20
91314-08014-00
BOLT,SOCKET
$6.06¢3 030
1
#21
90430-08119-00
GASKET
$6.36¢3 180
1
#22
4H7-15189-00-00
PLUG
$28.30¢14 151
1
#23
93210-20003-00
O-RING
$6.88¢3 439
1
#24
90110-06300-00
BOLT, HEXAGON SOCKET HEAD
$3.24¢1 621
1
#25
90110-06094-00
BOLT, HEXAGON SOCKET HEAD
$4.97¢2 484
1
#26
90110-06297-00
BOLT, HEXAGON SOCKET HEAD
$5.75¢2 875
1
#27
90110-06296-00
BOLT, HEXAGON SOCKET HEAD
$6.16¢3 082
1
#28
90110-06298-00
BOLT, HEXAGON SOCKET HEAD
$6.36¢3 180
1
#29
90110-08072-00
BOLT, HEXAGON SOCKET HEAD
$5.68¢2 841
1
#30
90110-08073-00
BOLT, HEXAGON SOCKET HEAD
$6.52¢3 260
1
#31
91314-08014-00
BOLT,SOCKET
$6.06¢3 030
1
#32
90430-08119-00
GASKET
$6.36¢3 180
1
#33
91314-06010-00
bolt
$2.97¢1 483
1
#34
90430-06014-00
GASKET
$7.59¢3 795
1
