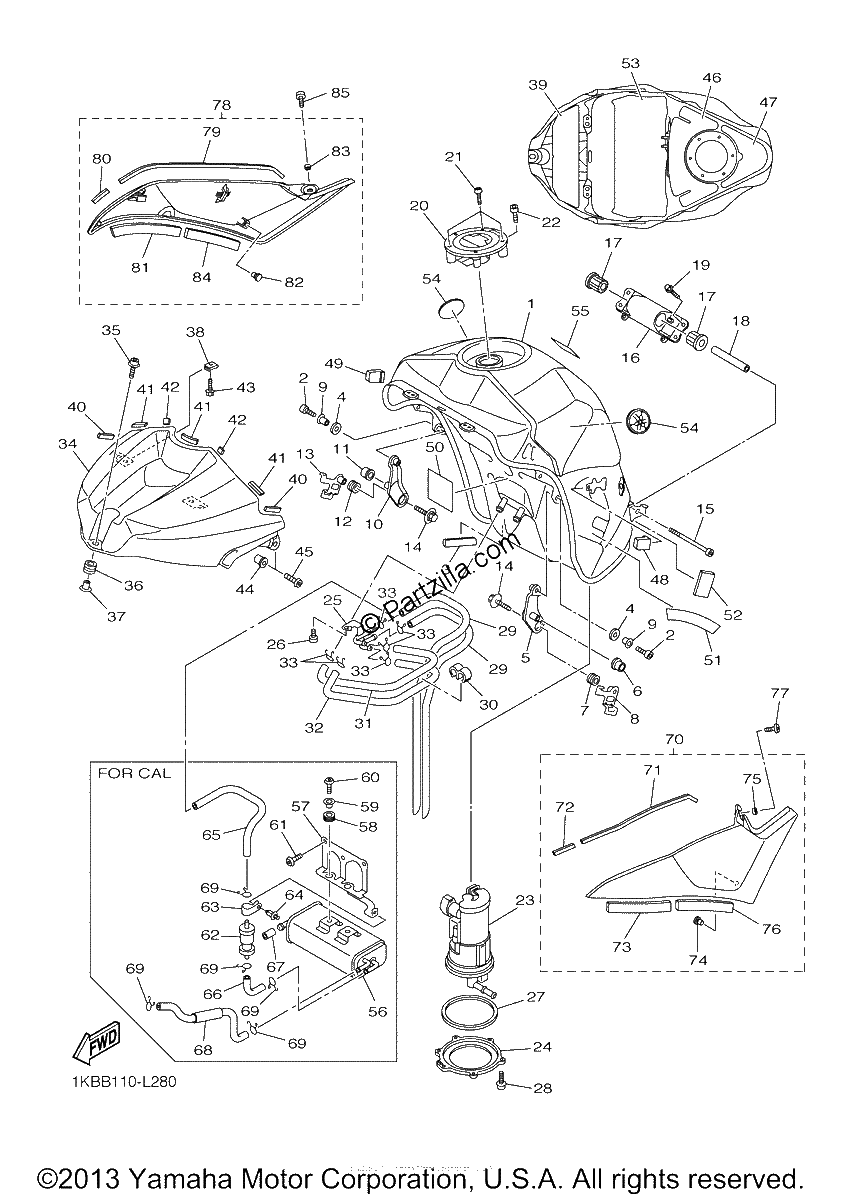

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PIPE 3 | FOR CALIFORNIA
$31.66¢15 831
#1
FUEL TANK COMP. | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$1458.74¢729 369
#2
BOLT
$5.84¢2 919
#3
MOLD, FUEL TANK
$21.23¢10 613
#4
DAMPER, LOCATING 3
$7.77¢3 887
#5
BRACKET, FUEL TANK 1
$53.60¢26 800
#6
DAMPER, LOCATING 1
$7.65¢3 825
#7
GROMMET
$11.70¢5 850
#8
HOLDER, CABLE
$16.21¢8 106
#9
COLLAR
$6.49¢3 244
#10
BRACKET, FUEL TANK 2
No Disponible
#11
DAMPER, LOCATING 1
$7.65¢3 825
#12
GROMMET
$11.70¢5 850
#13
HOLDER, CLUTCH CABLE
$15.88¢7 938
#14
BOLT, WITH WASHER
$7.48¢3 738
#15
BOLT, HEXAGON SOCKET HEAD
$5.53¢2 763
#16
BRACKET, TANK FITTING
$63.89¢31 944
#17
DAMPER, LOCATING 3
$7.65¢3 825
#18
COLLAR
$5.19¢2 594
#19
BOLT, HEXAGON SOCKET
$9.13¢4 563
#20
CAP ASSY
$270.61¢135 306
#21
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#22
BOLT
$5.86¢2 931
#23
FUEL PUMP COMP.
$562.71¢281 356
#24
BRACKET, FUEL PUMP
$43.83¢21 913
#25
CLAMP 1
$30.47¢15 237
#26
BOLT
$6.19¢3 094
#27
O-RING
$44.47¢22 237
#28
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#29
PIPE 2 | FOR CALIFORNIA
$54.28¢27 138
#30
CLAMP
$7.36¢3 681
#31
PIPE 3
$12.84¢6 419
#32
PIPE 4
No Disponible
#33
Clip
$2.97¢1 487
#34
COVER, TOP | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$274.09¢137 044
#35
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
#36
GROMMET
$7.43¢3 713
#37
COLLAR
$8.30¢4 150
#38
NUT, SPRING
$8.85¢4 425
#39
DAMPER, PLATE
$9.89¢4 944
#39
DAMPER, PLATE 1
$10.93¢5 463
#40
DAMPER, LOCATING 2
$7.70¢3 850
#41
DAMPER, LOCATING 1
$7.86¢3 931
#42
DAMPER, LOCATING 1
$7.95¢3 975
#43
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
#44
NUT
$6.78¢3 388
#45
SCREW, BIND
$1.44¢719
#46
DAMPER, PLATE 4
$67.65¢33 825
#47
DAMPER, PLATE 5
$39.41¢19 706
#48
DAMPER, SIDE COVER
$7.65¢3 825
#49
DAMPER, SIDE COVER
$7.65¢3 825
#50
DAMPER
$7.95¢3 975
#51
DAMPER, PLATE 3
$3.34¢1 669
#52
SEAL
$10.18¢5 088
#54
EMBLEM
$26.51¢13 256
#55
LABEL, CAUTION
$7.85¢3 925
#56
CANISTER ASSY | FOR CALIFORNIA
$362.29¢181 144
#57
BRACKET, CANISTOR | FOR CALIFORNIA
$61.28¢30 638
#58
GROMMET
$7.43¢3 713
#59
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#60
BOLT, BUTTON HEAD
$7.41¢3 706
#61
BOLT, HEX. SOCKET BUTTON
$2.11¢1 056
#62
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
#63
Clamp
$2.35¢1 175
#64
RIVET
$2.71¢1 356
#65
PIPE 5 | FOR CALIFORNIA
$29.82¢14 913
#66
PIPE 6 | FOR CALIFORNIA
$12.90¢6 450
#67
HOSE (L70)
$6.94¢3 469
#68
PIPE | FOR CALIFORNIA
$27.83¢13 913
#69
Clip
$2.97¢1 487
#70
TANK SIDE COVER ASSY 1
$151.18¢75 588
#71
DAMPER, PLATE 1
$7.86¢3 931
#72
DAMPER, PLATE 2
$7.95¢3 975
#73
DAMPER, PLATE 2
$6.55¢3 275
#74
PLUG
$6.76¢3 381
#75
SPACER
$4.59¢2 294
#76
DAMPER, PLATE
$3.89¢1 944
#77
SCREW, BIND
$1.46¢731
#78
TANK SIDE COVER ASSY 2
$107.93¢53 963
#79
DAMPER, PLATE 1
$7.86¢3 931
#80
DAMPER, PLATE 2
$7.95¢3 975
#81
DAMPER, PLATE 2
$6.55¢3 275
#82
PLUG
$6.76¢3 381
#83
SPACER
$4.59¢2 294
#84
DAMPER, PLATE
$3.89¢1 944
#85
SCREW, BIND
$1.46¢731
