TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

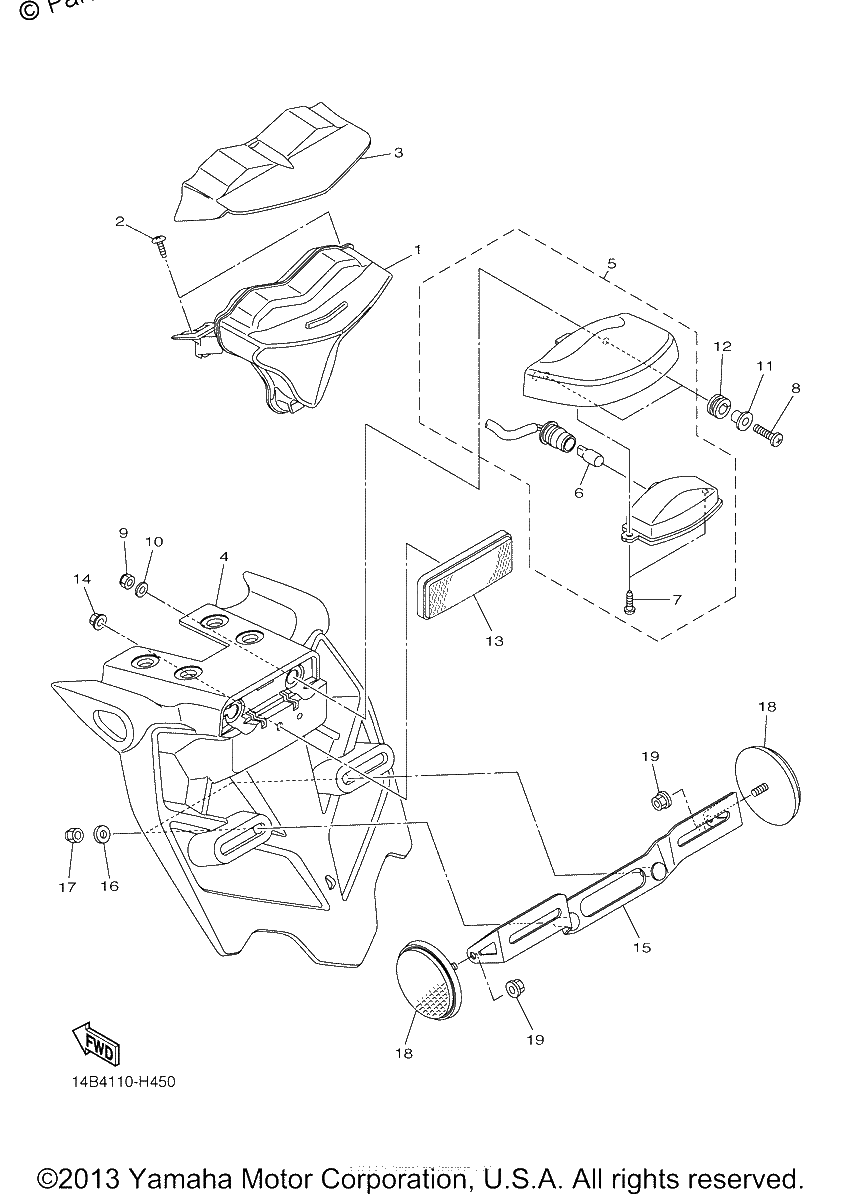

Diagrama de TAILLIGHT

Repuestos

#1
14B-84710-10-00
TAILLIGHT UNIT ASSY
$247.50¢123 750
1
#2
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#3
14B-84516-00-00
COVER, TAILLIGHT
$26.25¢13 125
1
#4
14B-21629-01-00
GUARD, MUD
$43.24¢21 619
1
#5
5VX-84745-01-00
LICENSE LIGHT UNIT ASSY
$103.77¢51 887
1
#6
4SV-84347-00-00
BULB (12V-5W)
$7.65¢3 825
1
#7
97707-40012-00
SCREW, TAPPING
$7.95¢3 975
1
#8
98902-05020-00
SCREW, BIND
$1.71¢856
1
#9
95617-05100-00
NUT, U
$7.94¢3 969
1
#10
92907-05200-00
WASHER
$4.88¢2 438
1
#11
90387-05003-00
COLLAR
$5.53¢2 763
1
#12
90480-11009-00
GROMMET
$0.96¢481
1
#13
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#14
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#15
14B-84751-00-00
BRACKET, LICENSE
$32.79¢16 394
1
#16
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#17
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#18
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#19
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
