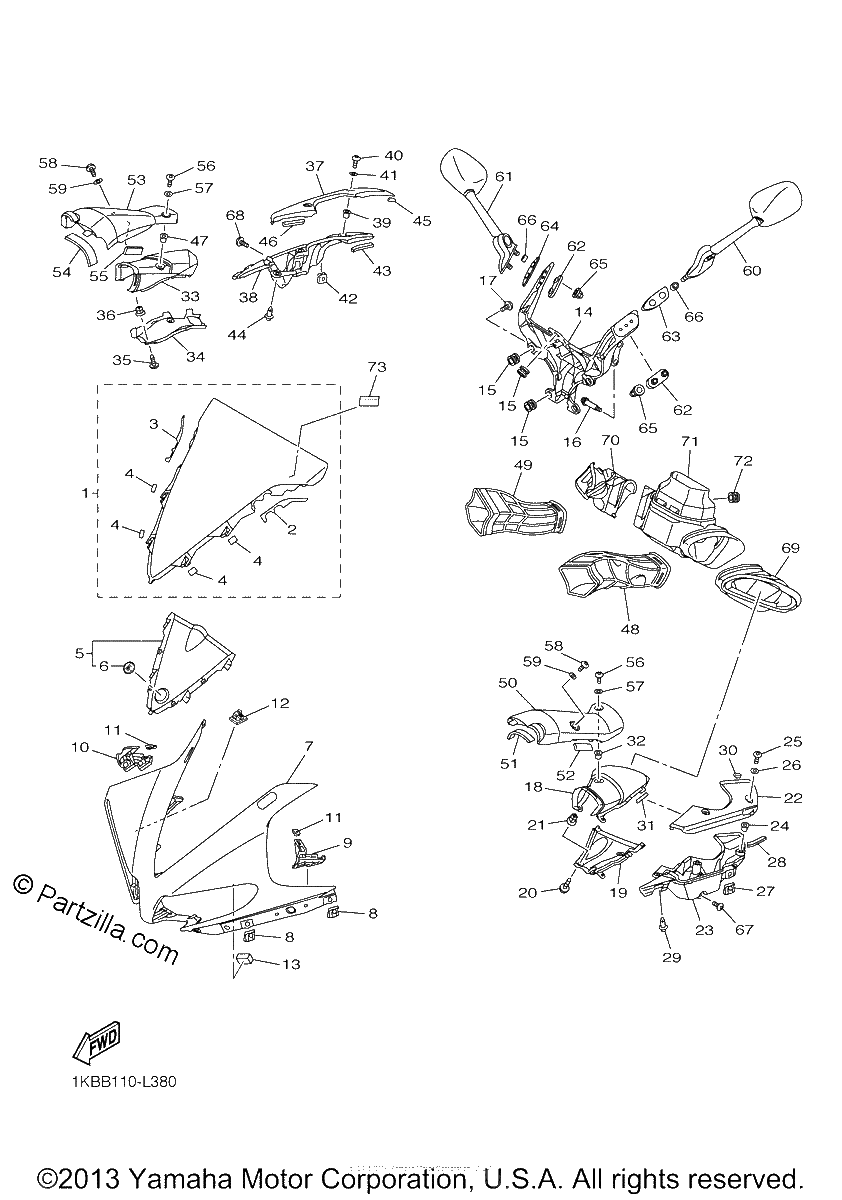

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WINDSCREEN ASSY
$182.25¢91 125
#2
SEAL 1
$17.02¢8 513
#3
SEAL 2
$17.02¢8 513
#4
SEAL 2
$7.95¢3 975
#5
PANEL ASSY
$65.25¢32 625
#6
TUNING FORK MARK
$18.90¢9 450
#7
BODY, FRONT UPPER 1 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$438.01¢219 006
#8
PLATE, SPRING
$7.41¢3 706
#9
STAY, SIDE 1
$8.64¢4 319
#10
STAY, SIDE 1
$8.97¢4 488
#11
NUT, SPRING
$2.82¢1 412
#12
CLAMP
$18.19¢9 094
#13
DAMPER, PLATE
$2.10¢1 050
#14
STAY 1
$265.74¢132 869
#15
DAMPER
$7.63¢3 813
#16
BOLT, FLANGE
$7.52¢3 762
#17
SCREW, ROUND TAPPING
$7.43¢3 713
#18
DUCT 1 | Use for Color YAMAHA BLACK ( YB / 0033 )
$133.54¢66 769
#19
DUCT 3
$14.65¢7 325
#20
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#21
GROMMET
$7.48¢3 738
#22
LID 1 | Use for Color YAMAHA BLACK ( YB / 0033 )
$82.17¢41 088
#23
BOX 3
$25.45¢12 725
#24
NUT
$6.78¢3 388
#25
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#26
WASHER, PLATE
$7.66¢3 831
#27
PLATE, SPRING
$7.41¢3 706
#28
SEAL 4
$9.60¢4 800
#29
RIVET
$8.25¢4 125
#30
DAMPER, PLATE
$7.71¢3 856
#31
DAMPER, PLATE
$7.79¢3 894
#32
NUT
$6.78¢3 388
#33
DUCT 2 | Use for Color YAMAHA BLACK ( YB / 0033 )
$92.71¢46 356
#34
DUCT 4
$14.65¢7 325
#35
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#36
GROMMET
$7.48¢3 738
#37
LID 2 | Use for Color YAMAHA BLACK ( YB / 0033 )
$91.39¢45 694
#38
BOX 4
$14.65¢7 325
#39
NUT
$6.78¢3 388
#39
PANEL, CONSOLE 2 | Use for Color YAMAHA BLACK ( YB / 0033 )
$107.58¢53 788
#40
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#41
WASHER, PLATE
$7.66¢3 831
#42
PLATE, SPRING
$7.41¢3 706
#43
SEAL 4
$9.60¢4 800
#44
RIVET
$8.25¢4 125
#45
DAMPER, PLATE
$7.71¢3 856
#46
DAMPER, PLATE
$7.79¢3 894
#47
NUT
$6.78¢3 388
#48
DUCT 5
$36.88¢18 438
#49
DUCT 6
$34.40¢17 200
#50
PANEL, CONSOLE 1 | Use for Color YAMAHA BLACK ( YB / 0033 )
$107.58¢53 788
#51
DAMPER, 3
$7.95¢3 975
#52
SEAL 1
$10.51¢5 256
#54
DAMPER, 3
$7.95¢3 975
#55
SEAL 1
$10.51¢5 256
#56
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#57
WASHER, PLATE
$7.66¢3 831
#58
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#59
WASHER, PLATE
$7.66¢3 831
#60
REAR VIEW MIRROR ASSY (LEFT)
$155.65¢77 825
#61
REAR VIEW MIRROR ASSY (RIGHT)
$155.65¢77 825
#62
PLATE, MIRROR FITTING 1
$7.65¢3 825
#63
BASE, MIRROR (LEFT)
$5.66¢2 831
#64
BASE, MIRROR (RIGHT)
$5.66¢2 831
#65
NUT, CROWN
$4.76¢2 381
#66
COLLAR (J45)
$5.93¢2 963
#67
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#68
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#69
BOX, SIDE 1
$45.69¢22 844
#70
BOX, SIDE 2
$58.38¢29 188
#71
BOX, FRONT
$111.54¢55 769
#72
GROMMET
$4.63¢2 313
#73
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
