FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

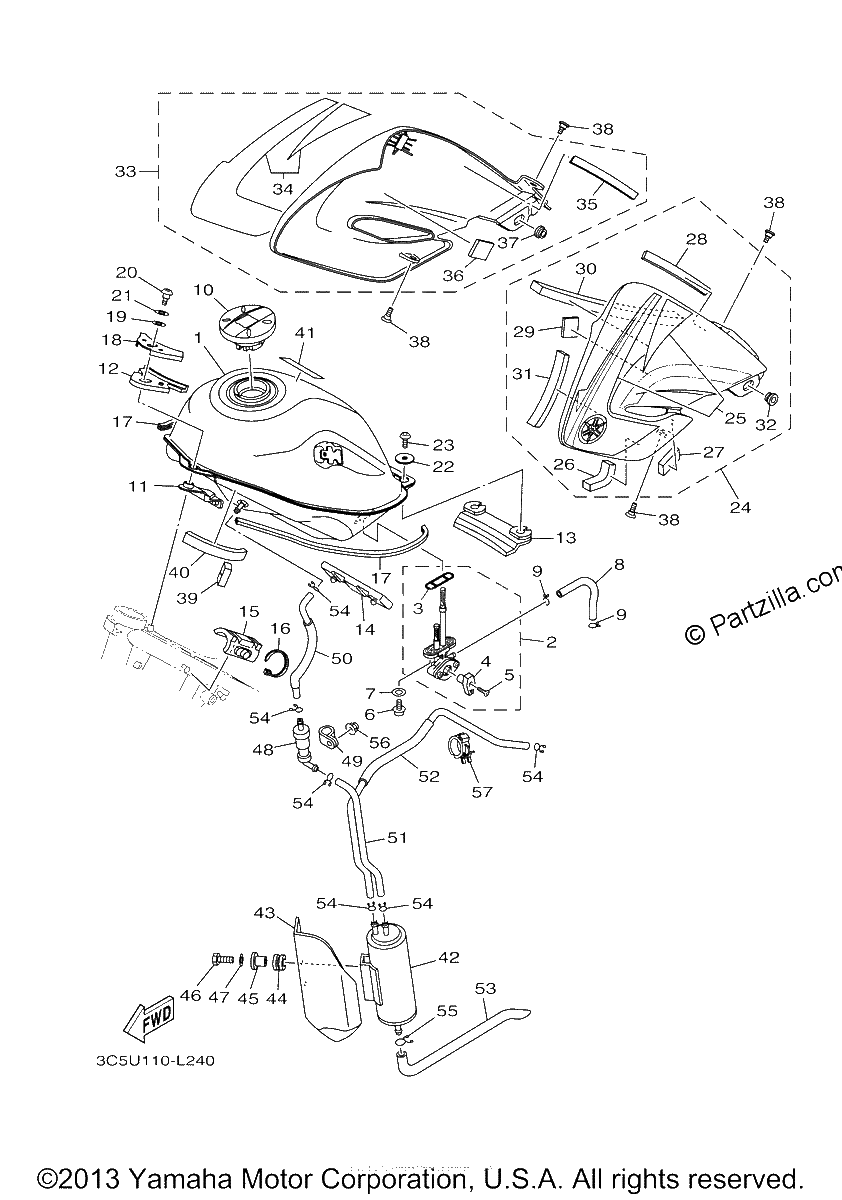

Diagrama de FUEL TANK

Repuestos

#0
5VK-24602-30-00
CAP ASSY
$214.13¢107 065
1
#0
3C5-24110-30-P1
FUEL TANK COMP. | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$485.13¢242 564
1
#1
3C5-24110-10-P0
FUEL TANK COMP. | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$449.05¢224 526
1
#2
3C5-24500-10-00
FUEL COCK ASSY 1
$149.33¢74 664
1
#3
3C5-24512-00-00
GASKET
$14.06¢7 032
1
#4
3C5-24524-00-00
LEVER, COCK
$10.19¢5 094
1
#5
3D5-24535-00-00
SCREW, LEVER FITTING
$3.10¢1 553
1
#6
90149-06108-00
SCREW
$1.05¢523
1
#7
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#8
90445-10829-00
HOSE
$4.13¢2 064
1
#9
90467-090A2-00
Clip
$2.74¢1 368
1
#10
5VK-24602-20-00
CAP ASSY
$193.40¢96 698
1
#11
3C5-24181-10-00
DAMPER, locating 1
$56.14¢28 071
1
#12
3C5-24183-00-00
DAMPER, LOCATING 3
$9.51¢4 755
1
#13
3C5-24182-10-00
DAMPER, locating 2
$33.48¢16 738
1
#14
3C5-24185-10-00
DAMPER, LOCATING 5
$41.17¢20 585
1
#15
3C5-24184-10-00
DAMPER, LOCATING 4
$24.99¢12 495
1
#16
1UA-82591-00-00
BAND
$4.52¢2 260
1
#17
3C5-24188-00-00
MOLD, FUEL TANK
$22.98¢11 489
1
#18
3C5-24186-00-00
WASHER, special
$18.78¢9 390
1
#19
90202-10120-00
WASHER,PLATE (replaces 90202-10165-00)
$6.45¢3 226
1
#20
90109-06265-00
bolt
$11.29¢5 647
1
#21
90202-10003-00
WASHER, plate
$7.98¢3 991
1
#22
90201-06074-00
WASHER,PLATE
$6.88¢3 439
1
#23
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#24
3C5-Y217W-F0-00
SCOOP COMP, AIR 1
$252.56¢126 282
1
#25
3C5-2137C-B0-00
GRAPHIC, SCOOP AIR SET 1
$139.17¢69 586
1
#26
3C5-24125-00-00
SEAL, AIR SHROUD 1
$2.74¢1 368
1
#27
3C5-24126-00-00
SEAL, AIR SHROUD 2
$1.93¢966
1
#28
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#29
3C5-2414J-00-00
DAMPER, PLATE 2
$4.30¢2 151
1
#30
3C5-2414K-00-00
DAMPER, plate 3
$5.89¢2 944
1
#31
3C5-2414N-00-00
DAMPER, PLATE 4
$4.54¢2 271
1
#32
90480-01559-00
Grommet
$5.27¢2 633
1
#33
3C5-Y217X-F0-00
SCOOP COMP., AIR 2
$228.34¢114 172
1
#34
3C5-2137D-B0-00
GRAPHIC, SCOOP AIR SET 2
$139.17¢69 586
1
#35
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#36
3C5-2414J-00-00
DAMPER, PLATE 2
$4.30¢2 151
1
#37
90480-01559-00
Grommet
$5.27¢2 633
1
#38
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#39
3C5-24324-00-00
PIPE 13
$16.62¢8 309
1
#39
3C5-2414P-00-00
DAMPER, PLATE 5
$3.35¢1 673
1
#40
3C5-2416F-00-00
INSULATOR, FUEL TANK
$2.74¢1 368
1
#41
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
#42
3C5-24170-00-00
CANISTER ASSY
$387.18¢193 591
1
#43
3C5-2419E-00-00
COVER, CANISTER
$110.14¢55 068
1
#44
90480-15342-00
GROMMET (56R)
$4.66¢2 329
1
#45
90387-063G3-00
COLLAR (56R)
$6.88¢3 439
1
#46
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#47
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#48
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#49
90464-15014-00
Clamp
$2.16¢1 081
1
#50
3C5-24321-00-00
PIPE 10 | FOR CAL
No Disponible
1
#51
3C5-24322-00-00
PIPE 11 | FOR CAL
No Disponible
1
#52
3C5-24323-00-00
PIPE 12 | FOR CAL
No Disponible
1
#54
90467-090A2-00
Clip
$2.74¢1 368
1
#55
90467-11106-00
Clip
$2.99¢1 495
1
#56
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#57
90464-25217-00
CLAMP
$3.68¢1 840
1
