ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

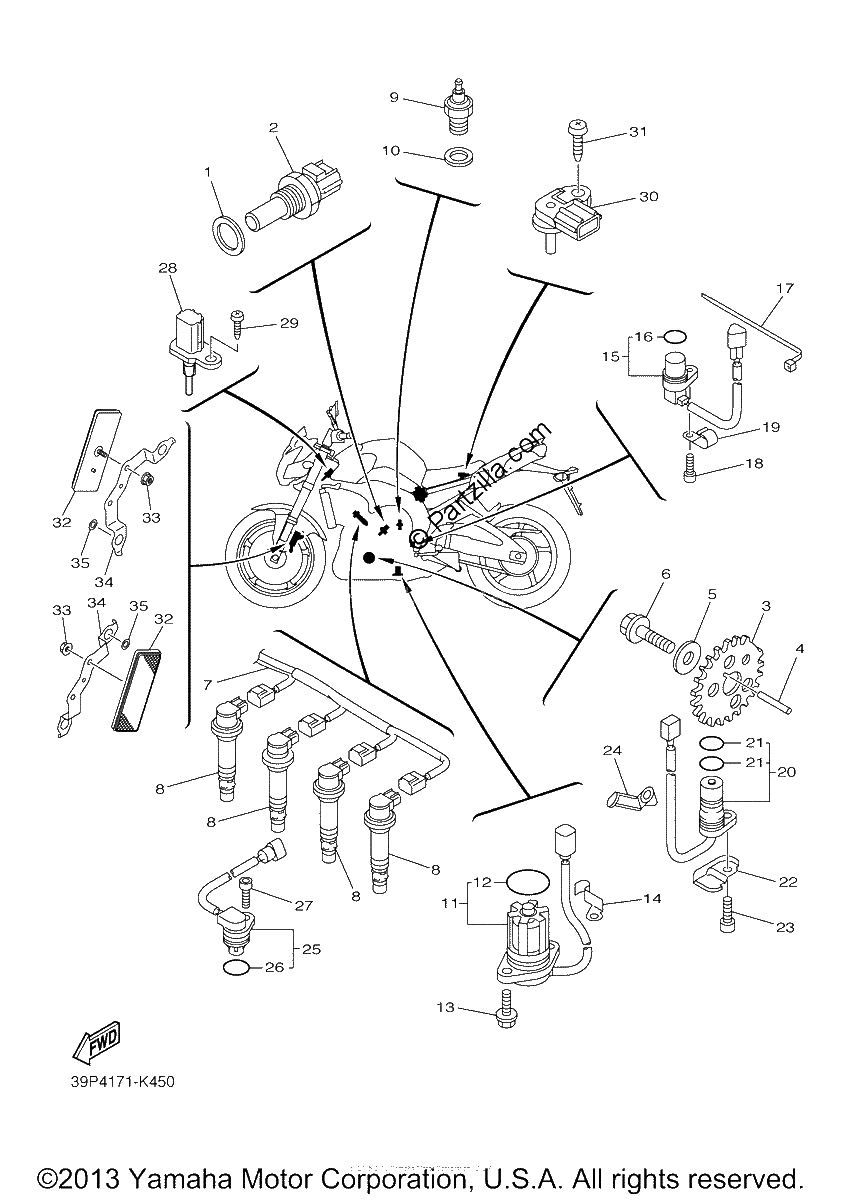

Diagrama de ELECTRICAL 1

Repuestos

#1
90201-12790-00
WASHER, PLATE
$7.51¢3 755
1
#2
8CC-85790-01-00
THERMOSENSOR ASSY
$97.93¢48 967
1
#3
2D1-81673-00-00
ROTOR
$58.81¢29 405
1
#4
90282-03001-00
KEY, STRAIGHT
$10.98¢5 491
1
#5
90201-10039-00
WASHER, PLATE
$7.27¢3 634
1
#6
90105-10290-00
BOLT, FLANGE
$10.99¢5 497
1
#7
39P-82309-00-00
WIRE, SUB LEAD
$149.09¢74 543
1
#8
39P-82310-10-00
IGNITION COIL ASSY
$166.86¢83 432
1
#9
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#10
90430-10148-00
Gasket
$5.21¢2 605
1
#11
5VY-85720-00-00
OIL LEVEL GAUGE ASSY
$160.95¢80 477
1
#12
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#13
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#14
90465-08053-00
CLAMP
$5.55¢2 777
1
#15
4XV-83755-03-00
SENSOR, SPEED
$156.49¢78 246
1
#16
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#17
90464-51001-00
CLAMP
$18.10¢9 051
1
#18
91317-06016-00
BOLT
$1.35¢673
1
#19
90462-08057-00
CLAMP
$6.50¢3 249
1
#20
23P-81670-00-00
PICK-UP ASSY
$145.13¢72 565
1
#21
5VY-8A8E1-00-00
O-RING 1
$6.51¢3 254
1
#22
23P-15589-00-00
PLATE
$6.84¢3 421
1
#23
91317-06016-00
BOLT
$1.35¢673
1
#24
90465-08054-00
CLAMP
$5.89¢2 944
1
#25
5VY-85896-01-00
SENSOR, CAM POSITION
$139.21¢69 604
1
#26
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#27
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#28
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#29
97702-50520-00
SCREW, TAPPING
$0.30¢150
1
#30
5S7-82380-00-00
SENSOR, PRESSURE
$177.49¢88 746
1
#31
97707-60520-00
SCREW, TAPPING
$7.30¢3 651
1
#32
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#33
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#34
39P-85112-00-00
BRACKET, REFLECTOR 1
$15.26¢7 630
1
#35
90201-10057-00
WASHER
$6.14¢3 070
1
