FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

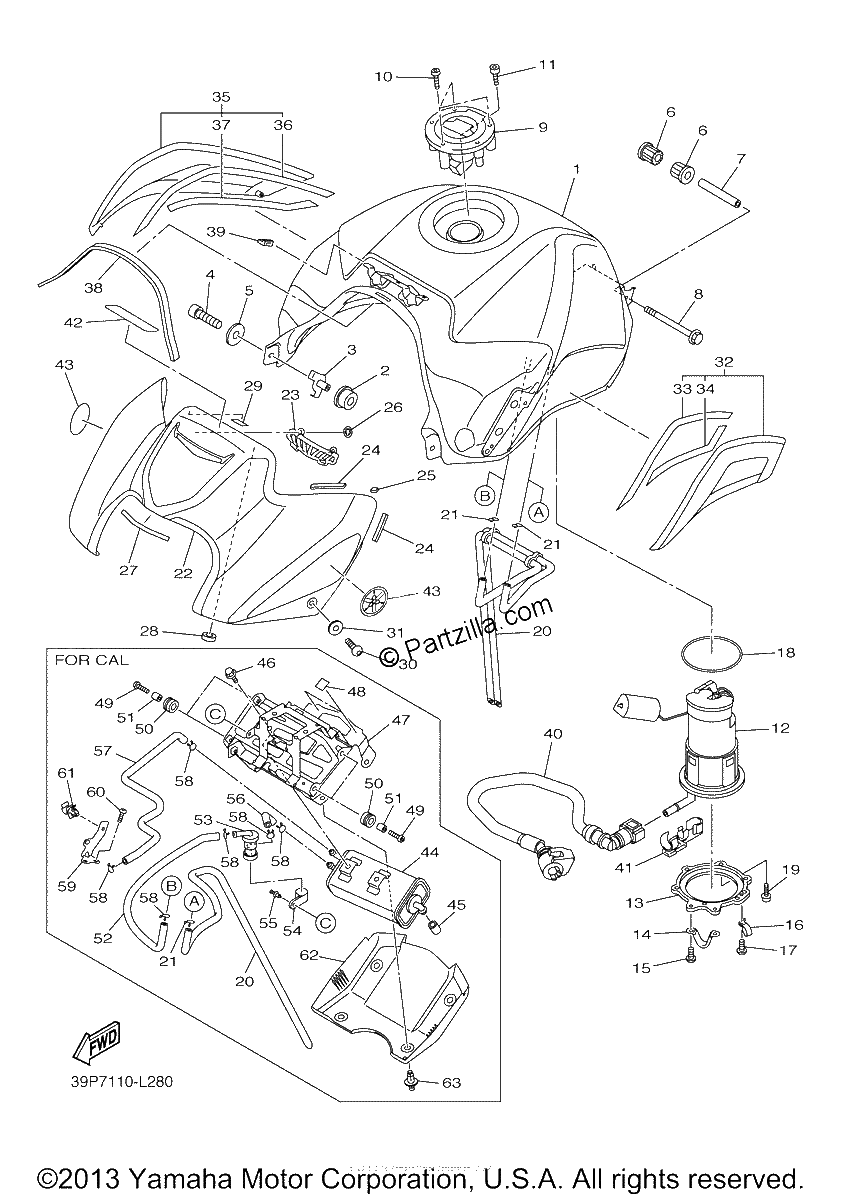

Diagrama de FUEL TANK

Repuestos

#0
39P-24315-00-00
PIPE 5 | FOR CALIFORNIA
$25.21¢12 606
1
#1
39P-24110-00-P4
FUEL TANK COMP. | MNM3
$801.24¢400 619
1
#2
5VY-24181-00-00
DAMPER, LOCATING 1
$7.65¢3 825
1
#3
2D1-2412G-00-00
COLLAR
$27.56¢13 781
1
#4
91312-06016-00
BOLT
$5.84¢2 919
1
#5
90201-06086-00
WASHER, PLATE
$6.99¢3 494
1
#6
5SL-24183-00-00
DAMPER, LOCATING 3
$7.65¢3 825
1
#7
90387-06055-00
COLLAR
$5.19¢2 594
1
#8
95022-06090-00
BOLT, FLANGE
$2.05¢1 025
1
#9
39P-24602-00-00
CAP ASSY
$270.61¢135 306
1
#10
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#11
91312-05010-00
BOLT
$5.86¢2 931
1
#12
39P-13907-00-00
FUEL PUMP COMP.
$564.60¢282 300
1
#13
39P-24491-00-00
BRACKET, FUEL PUMP
$55.51¢27 756
1
#14
2D1-24192-00-00
BRACKET, FUEL TANK 2
$13.54¢6 769
1
#15
98902-05008-00
SCREW, BIND
$1.46¢731
1
#16
90461-10010-00
CLAMP
$5.49¢2 744
1
#17
98902-05008-00
SCREW, BIND
$1.46¢731
1
#18
19B-24486-01-00
O-RING
$44.47¢22 237
1
#19
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#20
39P-24317-00-00
PIPE 7
$65.29¢32 644
1
#21
90467-090A2-00
Clip
$2.97¢1 487
1
#22
39P-2171A-10-P0
COVER, TOP | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$410.17¢205 087
1
#23
39P-241B1-00-00
COVER, TANK
$9.07¢4 538
1
#24
4XV-2834E-00-00
DAMPER 3
$3.23¢1 613
1
#25
14B-24181-00-00
DAMPER, LOCATING 1
$7.95¢3 975
1
#26
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#27
39P-28307-00-00
SEAL
$5.51¢2 756
1
#28
4FM-28372-00-00
DAMPER
$7.95¢3 975
1
#29
4RR-21485-00-00
DAMPER, RUBBER 1
$7.86¢3 931
1
#30
90111-05019-00
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
1
#31
90202-05224-00
WASHER, PLATE
$7.43¢3 713
1
#32
39P-24106-00-00
TANK SIDE COVER ASSY 1
$29.94¢14 969
1
#33
39P-241A3-00-00
SEAL 3
$17.75¢8 875
1
#34
39P-241A5-00-00
SEAL 5
$17.43¢8 713
1
#35
39P-24108-00-00
TANK SIDE COVER ASSY 2
$29.94¢14 969
1
#36
39P-241A4-00-00
SEAL 4
$13.01¢6 506
1
#37
39P-241A6-00-00
SEAL 6
$12.72¢6 363
1
#38
2D1-2414P-00-00
DAMPER, PLATE 5
$10.30¢5 150
1
#39
2C0-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$61.95¢30 975
1
#39
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#40
39P-13971-00-00
PIPE, FUEL 1
$105.84¢52 919
1
#41
90464-16005-00
CLAMP
$12.75¢6 375
1
#42
5GK-2118K-00-00
LABEL, CAUTION
$5.84¢2 919
1
#43
5SL-2413B-00-00
EMBLEM
$26.51¢13 256
1
#44
39P-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$352.57¢176 288
1
#45
90445-112E0-00
HOSE (L70)
$6.94¢3 469
1
#46
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#47
39P-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$954.99¢477 494
1
#48
5YU-21639-00-00
DAMPER 2
$3.79¢1 894
1
#49
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#50
90480-14030-00
GROMMET
$3.49¢1 744
1
#51
90387-06026-00
COLLAR
$8.24¢4 119
1
#52
39P-24313-00-00
PIPE 3 | FOR CALIFORNIA
$46.78¢23 388
1
#54
90464-15014-00
Clamp
$2.35¢1 175
1
#55
90269-05005-00
RIVET
$3.57¢1 787
1
#56
39P-24314-00-00
PIPE 4 | FOR CALIFORNIA
$14.20¢7 100
1
#57
39P-1444J-00-00
PIPE | FOR CALIFORNIA
$47.90¢23 950
1
#58
90467-090A2-00
Clip
$2.97¢1 487
1
#59
39P-24216-00-00
STAY | FOR CALIFORNIA
$36.51¢18 256
1
#60
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#61
90464-10125-00
CLAMP | FOR CALIFORNIA
$5.30¢2 650
1
#62
5D0-2172W-00-00
COVER | FOR CALIFORNIA
$58.60¢29 300
1
#63
90269-07077-00
RIVET
$8.25¢4 125
1
