SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

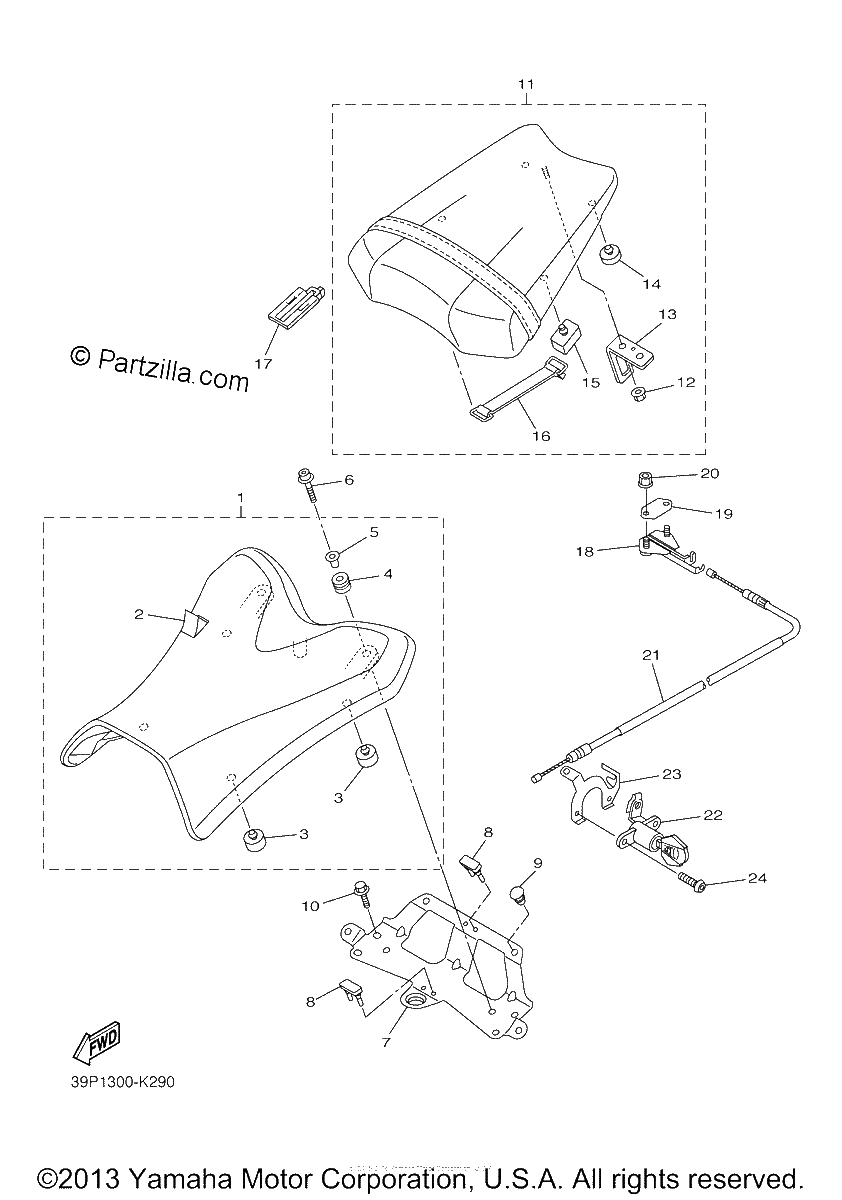

Diagrama de SEAT

Repuestos

#1
39P-24710-00-00
SINGLE SEAT ASSY
$149.53¢74 763
1
#2
39P-2470F-00-00
SEAT COVER COMP.
No Disponible
1
#3
278-27114-00-00
STOPPER, MAIN STAND
$10.09¢5 044
1
#4
90480-14604-00
GROMMET
$8.84¢4 419
1
#5
90387-07391-00
COLLAR
$9.22¢4 613
1
#6
90110-06232-00
BOLT, HEXAGON SOCKET HEAD
$6.26¢3 131
1
#7
39P-21349-00-00
BRACKET, SEAT
$67.98¢33 988
1
#8
682-44532-00-00
STOPPER, UPPER MOUNT
$3.02¢1 513
1
#9
90338-07043-00
PLUG
$6.55¢3 275
1
#10
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#11
39P-24750-00-00
TANDEM SEAT ASSY
$183.49¢91 744
1
#12
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#13
4NK-24728-00-00
BRACKET, SEAT
$11.46¢5 731
1
#14
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#15
39P-24741-00-00
PAD, SEAT
$7.40¢3 700
1
#16
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
1
#17
39P-24768-00-00
STOPPER
$6.69¢3 344
1
#18
4BP-24780-00-00
SEAT LOCK ASSY
$113.16¢56 581
1
#19
4BP-24792-00-00
PLATE
$10.64¢5 319
1
#20
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#21
2D1-2478E-00-00
CABLE, SEAT LOCK
$24.08¢12 038
1
#22
3CK-W2470-00-00
SEAT LOCK ASSY
$88.70¢44 350
1
#23
4XV-2117K-00-00
STAY, LOCK
$20.26¢10 131
1
#24
90149-06135-00
SCREW
$2.20¢1 100
1
