CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

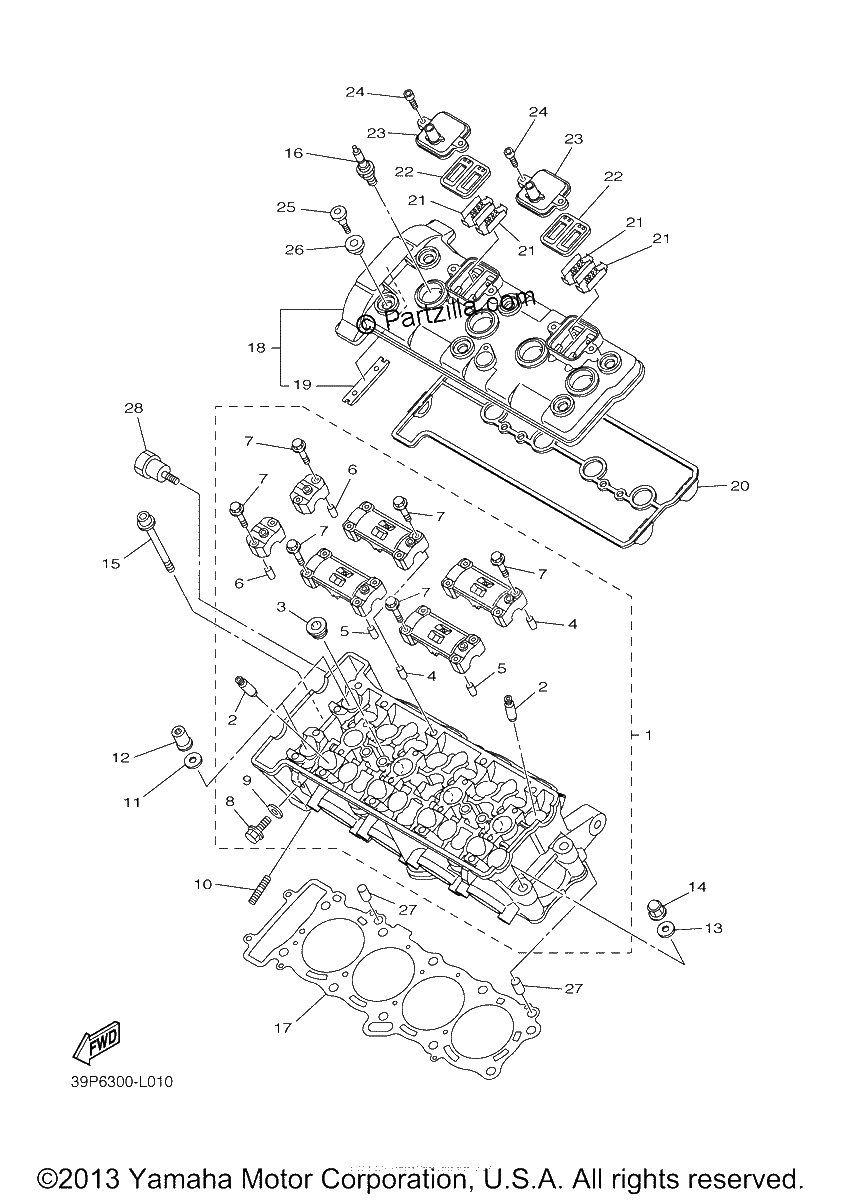

Diagrama de CYLINDER HEAD

Repuestos

#1
39P-11101-09-00
CYLINDER HEAD ASSY
$1444.99¢722 494
1
#2
20S-11134-10-00
GUIDE, VALVE 2
$49.01¢24 506
1
#3
90340-18002-00
PLUG, STRAIGHT SCREW
$11.19¢5 594
1
#4
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#5
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#6
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#7
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#8
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#9
90430-06014-00
GASKET
$8.25¢4 125
1
#10
90116-08087-00
BOLT, STUD
$8.97¢4 488
1
#11
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#12
90179-10029-00
NUT
$10.86¢5 431
1
#13
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#14
90176-10075-00
NUT, CROWN
$7.81¢3 906
1
#15
90110-06212-00
BOLT, HEXAGON SOCKET HEAD
$7.25¢3 625
1
#16
CR9-E0000-00-00
CR9E NGK SPLUG 4PK (replaces 94701-00410-00)
$10.74¢5 369
1
#17
39P-11181-00-00
GASKET, CYLINDER HEAD 1
$105.15¢52 575
1
#18
4C8-11191-00-00
COVER, CYLINDER HEAD 1
$385.36¢192 681
1
#19
5BE-12241-00-00
GUIDE, STOPPER 2
$30.44¢15 219
1
#20
4C8-11193-00-00
GASKET, HEAD COVER 1
$63.35¢31 675
1
#21
5VY-1482K-00-00
PLATE
$4.65¢2 325
1
#22
5SL-14890-10-00
REED VALVE ASSY
$101.99¢50 994
1
#23
5VY-14899-01-00
CAP, CASE
$38.52¢19 263
1
#24
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#25
90109-066F0-00
BOLT
$7.60¢3 800
1
#26
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
#27
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#28
2D1-11026-10-00
BOLT, MOUNT
$69.74¢34 869
1
