FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

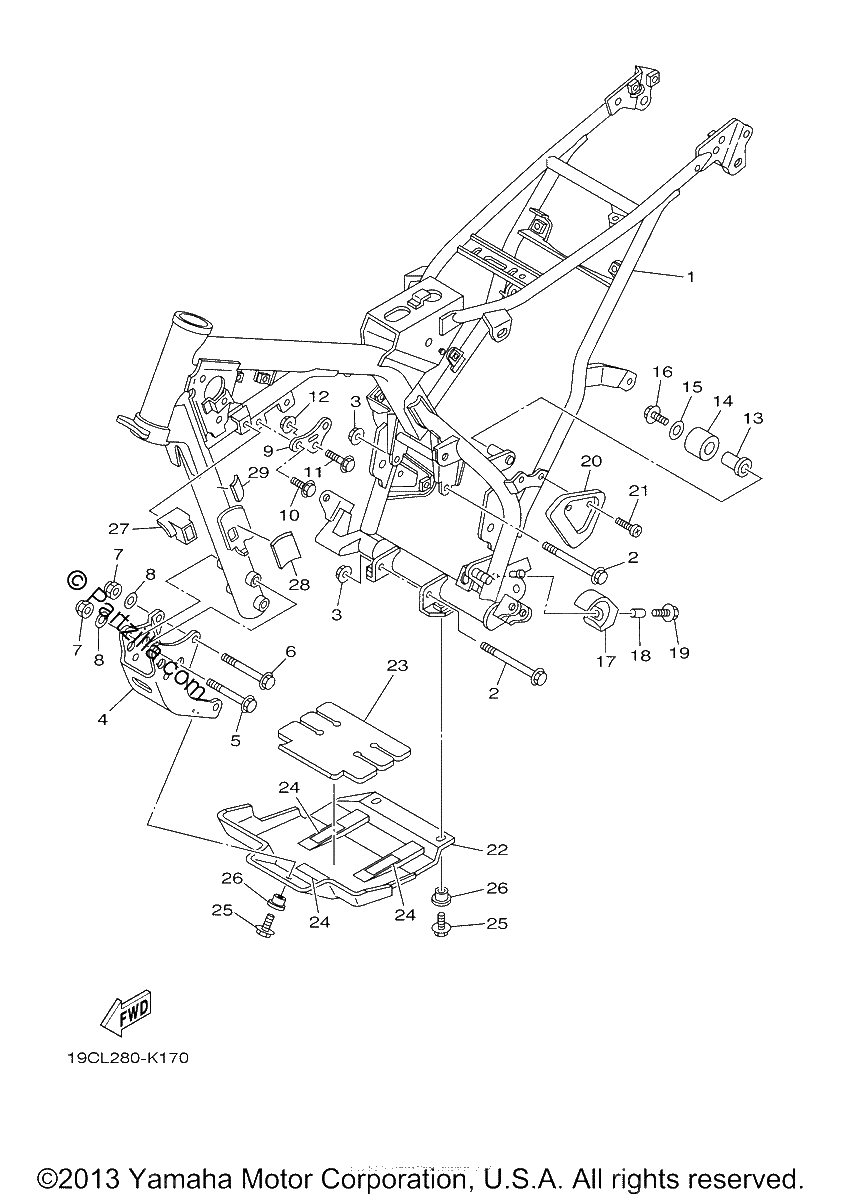

Diagrama de FRAME

Repuestos

#1
1B2-F1110-80-00
FRAME COMP.
$1121.24¢560 619
1
#2
90105-08007-00
BOLT, WASHER BASED
$5.19¢2 594
1
#3
90185-08169-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#4
1B2-F1316-10-00
STAY, ENGINE 3
$182.29¢91 144
1
#5
90105-084A1-00
BOLT, FLANGE
$11.16¢5 581
1
#6
90105-08011-00
BOLT, WASHER BASED
$5.36¢2 681
1
#7
95617-08100-00
NUT, U
$8.09¢4 044
1
#8
90201-086P8-00
WASHER, plate
$5.19¢2 594
1
#9
1B2-F1315-00-00
STAY, ENGINE 2
$28.52¢14 263
1
#10
90105-082A0-00
BOLT, WASHER BASED (replaces 90105-08846-00)
$3.74¢1 869
1
#11
90105-08002-00
BOLT, WASHER BASED
$2.52¢1 263
1
#12
90185-08169-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#13
5RM-F2184-00-00
Bush
$1.74¢869
1
#14
5RM-F2178-00-00
TENSIONER
$9.31¢4 656
1
#15
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$7.52¢3 762
1
#16
95027-08012-00
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$8.21¢4 106
1
#17
4ES-22178-00-00
TENSIONER
$20.41¢10 206
1
#18
90387-067K6-00
Collar
$8.85¢4 425
1
#19
90119-06118-00
BOLT, WITH WASHER
$7.34¢3 669
1
#20
1B2-F117F-00-00
Cover
$41.36¢20 681
1
#21
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.99¢3 494
1
#22
1B2-F1471-00-00
Protector, Engine
$18.43¢9 213
1
#23
5HP-21485-00-00
DAMPER, RUBBER 1 (replaces 1B2-F1485-00-00)
$38.06¢19 031
1
#24
1B2-F1268-00-00
SEAL
$2.16¢1 081
1
#25
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#26
90387-06681-00
COLLAR
$7.88¢3 938
1
#27
1B2-F117R-00-00
COVER 4
$1.44¢719
1
#28
1B2-F4849-00-00
DAMPER, 2
$0.25¢125
1
#29
5HN-2139X-00-00
DAMPER
$1.39¢694
1
