EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

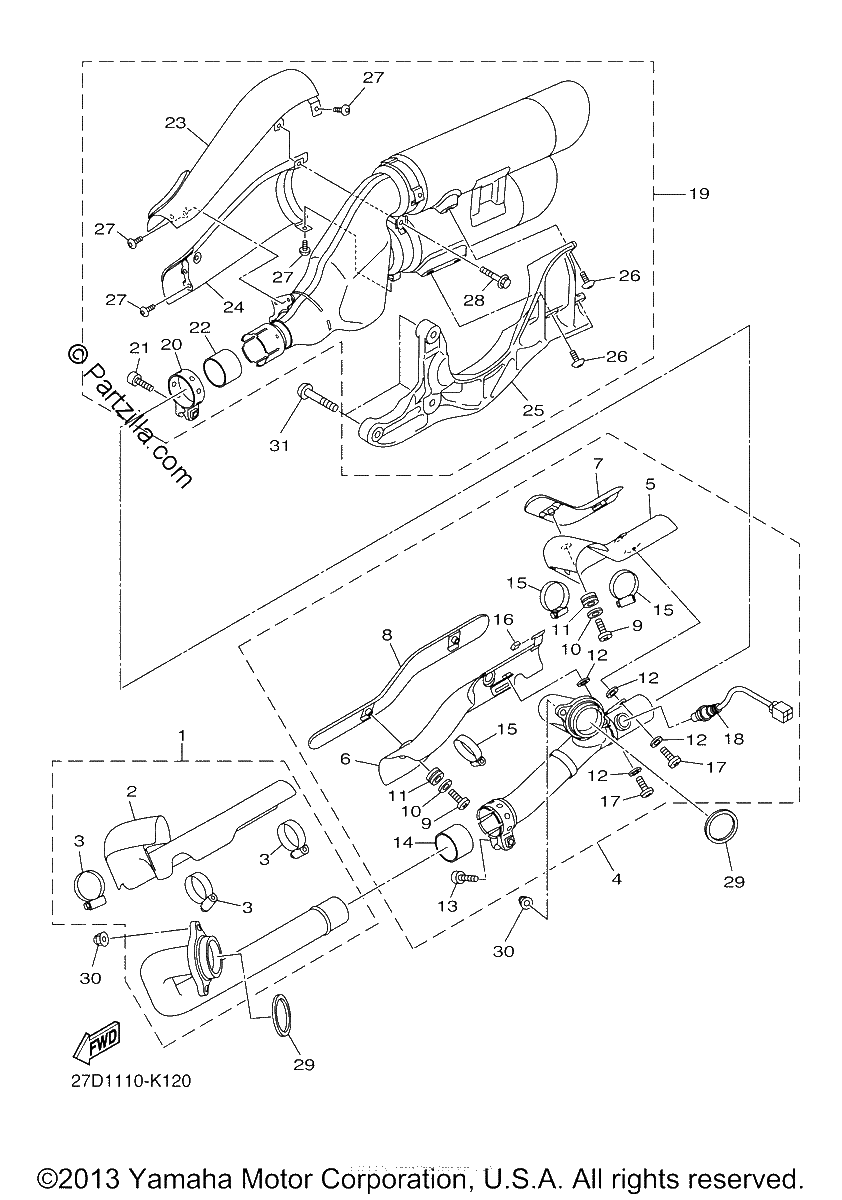

Diagrama de EXHAUST

Repuestos

#1
27D-14610-00-00
EXHAUST PIPE ASSY 1
$369.06¢184 529
1
#2
27D-14718-00-00
PROTECTOR, MUFFLER 1
$263.99¢131 997
1
#3
90450-44001-00
HOSE CLAMP ASSY
$17.39¢8 694
1
#4
27D-14620-00-00
EXHAUST PIPE ASSY 2
$983.24¢491 619
1
#5
27D-14728-00-00
PROTECTOR, MUFFLER 2
$350.58¢175 289
1
#6
27D-14738-00-00
PROTECTOR, MUFFLER 3
$426.82¢213 411
1
#7
3D8-14748-10-00
PROTECTOR, MUFFLER 4
$216.44¢108 221
1
#8
3D8-14628-10-00
PROTECTOR, EXHAUST PIPE
$244.10¢122 049
1
#9
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#10
90201-064K6-00
WASHER, PLATE
$6.88¢3 439
1
#11
90480-17005-00
GROMMET
$6.46¢3 231
1
#12
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#13
91314-08035-00
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
1
#14
5PX-14755-00-00
GASKET, SILENCER
$27.22¢13 610
1
#15
90450-44001-00
HOSE CLAMP ASSY
$17.39¢8 694
1
#16
3MA-24181-00-00
DAMPER, LOCATING 1
$7.15¢3 577
1
#17
98980-06016-00
SCREW, BIND
$7.45¢3 726
1
#18
5D1-8592A-00-00
SENSOR, OXYGEN
$304.96¢152 479
1
#19
27D-14710-01-00
MUFFLER ASSY 1
$1992.94¢996 469
1
#20
3D8-14715-00-00
BAND, MUFFLER
$39.92¢19 958
1
#21
91314-08035-00
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
1
#22
5VY-14714-00-00
GASKET, MUFFLER
$27.22¢13 610
1
#23
27D-147A8-10-00
PROTECTOR, SILENCER 2
$360.01¢180 004
1
#24
27D-14758-10-00
PROTECTOR, SILENCER
$297.41¢148 706
1
#25
27D-14772-00-00
STAY, MUFFLER 2
$240.29¢120 146
1
#26
90111-08043-00
BOLT, HEX. SOCKET BUTTON
$3.90¢1 949
1
#27
92014-06010-00
BOLT, BUTTON HEAD
$5.78¢2 892
1
#28
95817-06035-00
BOLT, FLANGE
$5.89¢2 944
1
#29
3EG-14613-00-00
GASKET, EXHAUST PIPE
$22.10¢11 051
1
#30
90176-08006-00
NUT, CROWN
$3.16¢1 581
1
#31
90111-10032-00
BOLT, HEX. SOCKET BUTTON
$5.78¢2 892
1
