TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

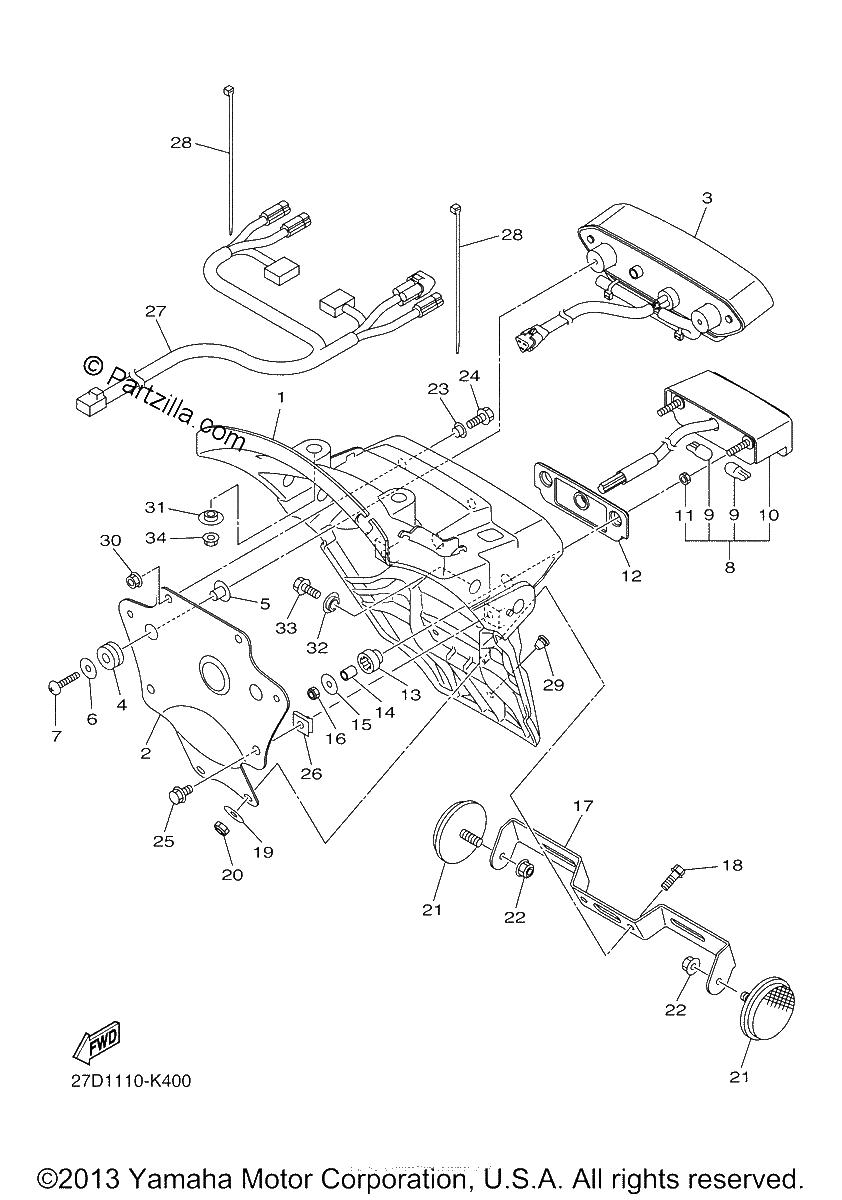

Diagrama de TAILLIGHT

Repuestos

#1
27D-84711-00-00
BASE, TAILLIGHT
$58.28¢29 141
1
#2
27D-2117E-00-00
BRACKET, TAILLIGHT
$38.11¢19 056
1
#3
27D-84710-00-00
TAILLIGHT UNIT ASSY
$198.37¢99 187
1
#4
90480-14052-00
GROMMET
$4.81¢2 403
1
#5
90387-06271-00
COLLAR
$4.65¢2 323
1
#6
90201-05033-00
WASHER, PLATE
$7.77¢3 887
1
#7
97707-50025-00
SCREW, TAPPING
$6.76¢3 381
1
#8
27D-84745-00-00
LICENCE LIGHT UNIT ASSY
$158.34¢79 172
1
#9
5PX-84744-00-00
BULB (12V-2CP)
$3.90¢1 949
1
#10
5PX-84749-00-00
BODY, LICENCE LIGHT
$87.71¢43 855
1
#11
5PX-84748-00-00
NUT, SPECIAL
$3.48¢1 742
1
#12
5PX-84742-00-00
SEAT, BASE
$7.79¢3 893
1
#13
3F9-84553-00-00
DAMPER
$22.63¢11 316
1
#14
90387-06241-00
COLLAR
$6.76¢3 381
1
#15
90201-05025-00
WASHER, PLATE
$5.65¢2 823
1
#16
95617-05100-00
NUT, U
$7.30¢3 651
1
#17
5C7-84751-00-00
BRACKET, LICENSE
$29.49¢14 743
1
#18
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#19
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#20
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#21
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#22
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#23
90387-0611K-00
COLLAR
$7.99¢3 996
1
#24
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#25
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#26
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#27
27D-84717-00-00
CORD, TAILLIGHT
$81.78¢40 888
1
#28
5Y9-12491-00-00
CLAMP 1
$7.23¢3 617
1
#29
90338-07180-00
PLUG
$6.22¢3 111
1
#30
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#31
90387-06153-00
COLLAR
$6.30¢3 151
1
#32
90387-08079-00
COLLAR
$8.21¢4 105
1
#33
90105-06066-00
BOLT, FLANGE
$6.89¢3 444
1
#34
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
