FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

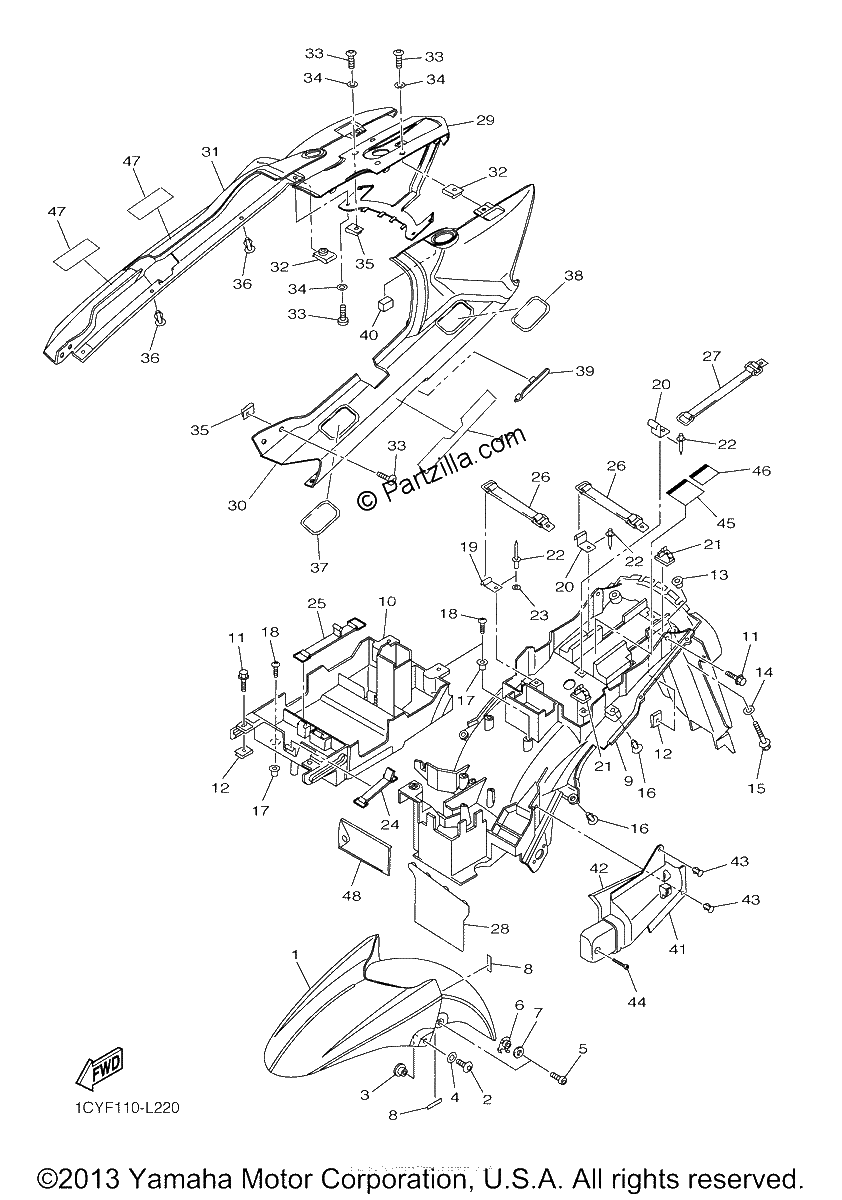

Diagrama de FENDER

Repuestos

#1
3P6-21511-00-P2
FENDER, FRONT | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$175.44¢87 719
1
#2
90110-06200-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#3
90387-07006-00
COLLAR
$7.72¢3 863
1
#4
90202-06170-00
WASHER, PLATE
$2.20¢1 100
1
#5
92014-06020-00
BOLT, BUTTON HEAD
$8.24¢4 119
1
#6
3P6-21535-11-00
NUT 1
$23.98¢11 988
1
#7
3P6-21541-00-00
DAMPER 1
$7.08¢3 538
1
#8
5DM-28371-00-00
DAMPER
$6.45¢3 225
1
#9
3P6-21611-10-00
FENDER, REAR
$221.72¢110 863
1
#10
3P6-2160E-00-00
BOX
$46.19¢23 094
1
#11
90119-06159-00
BOLT, WITH WASHER
$7.48¢3 738
1
#12
90183-060A7-00
NUT, SPRING
$7.72¢3 863
1
#13
90387-06231-00
COLLAR
$5.40¢2 700
1
#14
90201-07081-00
WASHER, PLATE
$8.45¢4 225
1
#15
95817-06040-00
BOLT,FLANGE (replaces 95812-06040-00)
$5.41¢2 706
1
#16
90269-06081-00
RIVET
$6.78¢3 388
1
#17
90338-08226-00
PLUG
$1.94¢969
1
#18
97702-60016-00
SCREW, TAPPING
$1.46¢731
1
#19
5PS-2162A-00-00
HOOK
$4.05¢2 025
1
#20
4HM-2162A-00-00
HOOK
$4.51¢2 256
1
#21
90464-13185-00
CLAMP
$4.59¢2 294
1
#22
90267-40076-00
RIVET, BLIND
$7.34¢3 669
1
#23
92990-04200-00
WASHER, PLAIN
$1.35¢675
1
#24
36X-2811G-00-00
BAND
$5.99¢2 994
1
#25
4J2-82131-01-00
BAND, BATTERY
$28.76¢14 381
1
#26
5JW-21647-01-00
BAND
$12.39¢6 194
1
#27
3P6-21647-00-00
BAND
$9.45¢4 725
1
#28
5JW-21621-10-00
FLAP
$24.11¢12 056
1
#29
3P6-21651-00-P1
COVER, REAR FENDER | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
No Disponible
1
#30
3P6-2471K-00-P1
COVER, TAIL 1 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$229.71¢114 856
1
#31
3P6-2472K-00-P1
COVER, TAIL 2 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$206.63¢103 313
1
#32
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#33
90110-05201-00
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
1
#34
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#35
90183-050A0-00
NUT, SPRING
$5.30¢2 650
1
#36
90269-06081-00
RIVET
$6.78¢3 388
1
#37
3P6-2163E-01-P1
COVER, REAR FENDER 2 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$39.85¢19 925
1
#38
3P6-2163E-11-P1
COVER, REAR FENDER 2 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$38.94¢19 469
1
#39
3P6-2163F-01-P1
COVER, REAR FENDER 3 | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$39.56¢19 781
1
#40
3P6-21649-00-00
DAMPER
$7.86¢3 931
1
#41
3P6-2163A-00-00
COVER, REAR FENDER 1
$22.83¢11 413
1
#42
3P6-21639-00-00
DAMPER 2
$4.05¢2 025
1
#43
90269-06081-00
RIVET
$6.78¢3 388
1
#44
97780-50125-00
SCREW, TAPPING
$2.42¢1 213
1
#45
13S-21684-10-00
PLATE, ROUTING | FOR CALIFORNIA
$10.19¢5 094
1
#46
5SL-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$5.06¢2 531
1
#47
5JW-W9390-00-00
FJR PROTECT STICKER SET
No Disponible
1
#48
5JW-28100-00-00
TOOL KIT
$93.03¢46 513
1
